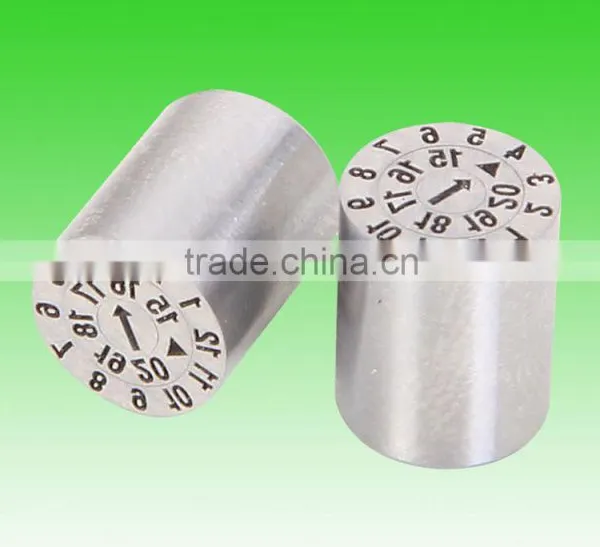

O-type Three-ring Date Code

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

D6-D16

Shenzhen Threeup Mold Fittings Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number D6-D16

Material: SUS420 Hardness: 50-55HRC

O-type date marked pins use the interchangeabledesign, and you may replace the inserts on the mold without disassembly of mold for replacement.
The external ring indicates the spring positioning, and you may engrave any number and pattern. The inner ring is the multiple edges angle positioning, and the number of edges and angles is 12 angle and 10 angles.
Compact structure saves the space of mold, and the installation method is the screw lifting structure at the tail.

Installation method: (refer to the blow table)

Step 1: knock three-ring shell in the template

Step 2: use your hand to press three-ring small ring in the shell

Step 3: rotate the inserts in three-ring in the shell

Step 4: It now refers to August 1, for example, the date is changed to August 4, rotate the inserts clockwise, align the arrow of small ring with the number 4, if need other months, rotate according to the above steps; for example, change the date to September 1, rotate the inserts counterclockwise, and rotate the inserts and small ring out of shell automatically; align the arrow of inserts with the number 09 of small ring, and press lightly and rotate in the shell clockwise.
