single-screw extruder

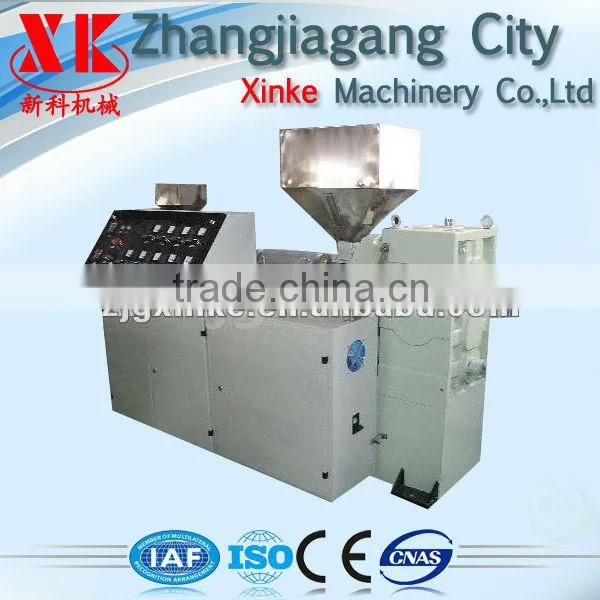

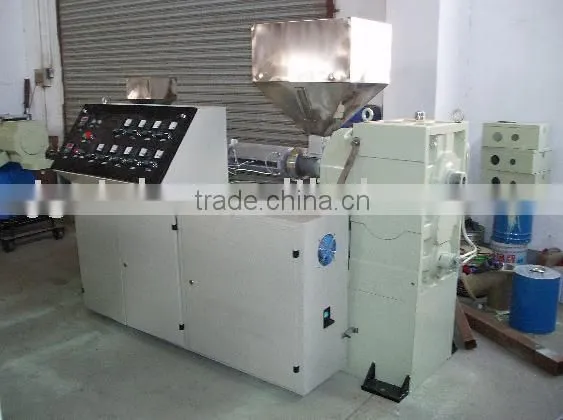

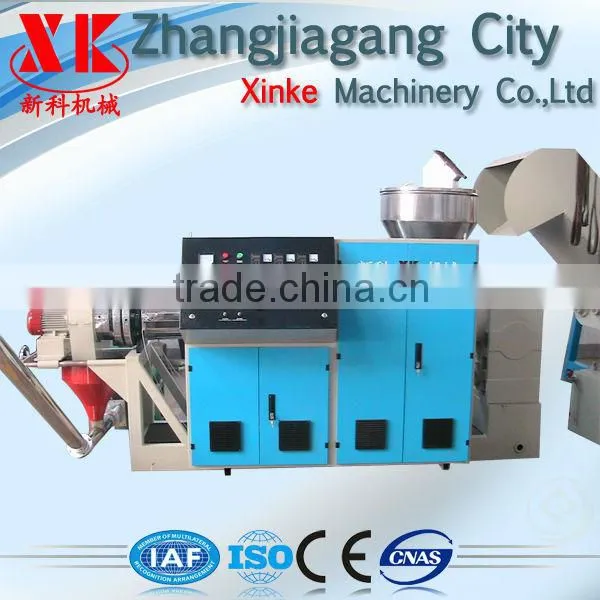

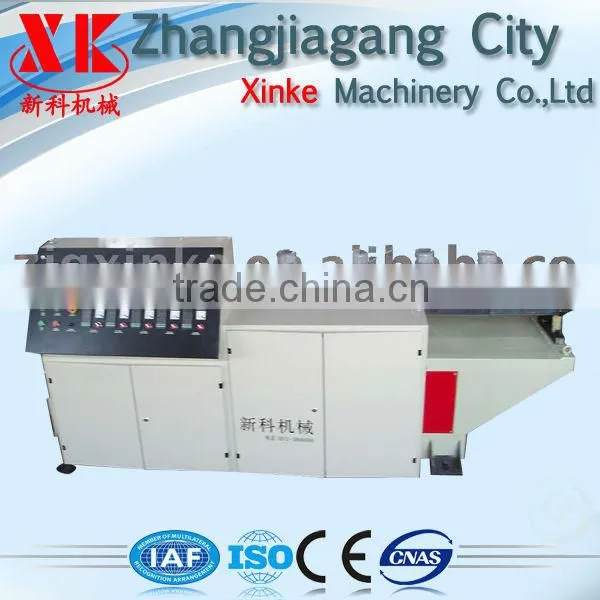

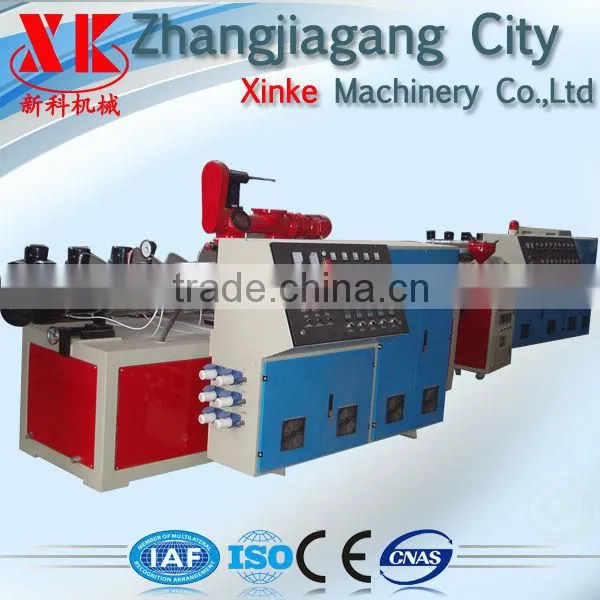

SJ65 Single-screw Extruding Machineis mainly used in extruding soft and hard thermoplastics,such as polyvinylchloride(PVC),polyethyline and others,it is used with relevant auxiliary machine (including shaping machine head)to produce several kinds of plastic products,for example:film, pipe, rod, plate, thread, cable insulating layer, hollow product, It is also used for prilling.
The machine has advantages,such as advanced design,highoutput,good plasticification,low energy consumption, involute gear transmission,low noise,steady operation,large loading,long life and so on.
Single Screw Extruder Machine
SJ Series Single Screw Extruder Machine
Features and Application:
This machine is mainly used to process PP, PE, ABS and other plastics. Equipped with auxiliary machines,
it can manufacture profile, pipes, sheets and other plastic products and granulation. It has the advantage
of simple production technological process, high output, stable quality and low cost.
Normal type and PLC micro computer controller can be chosen
Length/diameter ratio can be changed (suitable between 25:1-36:1)
Electrical configuration according to customers demand.
Techincal Parameter:
|
Length-Diameter Ratio (L/D) |
Output (kg/h) |
Screw Speed (rpm) |
Power (kw) |
Center Height (mm) |
SJ-25/25 |
25:1 |
0.5-3kg/h |
10-150 rpm |
1.5 kw |
1000mm |
SJ-30/25 |
25:1 |
1.5-10 kg/h |
15-150 rpm |
3 kw |
1000mm |
SJ-45/25 |
25:1 |
5-25 kg/h |
12-88 rpm |
7.5 kw |
1000mm |
SJ-65/25 |
25:1 |
20-85 kg/h |
13-130 rpm |
22 kw |
1000mm |
SJ-90/25 |
25:1 |
50-100 kg/h |
33.3-100 rpm |
55 kw |
1000mm |
SJ-120/25 |
25:1 |
84-190 kg/h |
17-52 rpm |
75 kw |
1000mm |
SJ-150/25 |
25:1 |
50-300 kg/h |
7-42 rpm |
90 kw |
1000mm |
SJ-200/25 |
25:1 |
180-430 kg/h |
5-30 rpm |
160 kw |
1000mm |
