Help CenterLifter for Meat Processing Industry
Related Products
Specifications
1.vertical, tipping and spiral types etc;2.made of high quality stainless steel;
BTSJ lifter series has several types: vertical, tipping, and spiral types etc. There are several drive types: screw, pneumatic and hydraulic. It is compatible with international standard 120L and 200L meat vehicle; also it can be used for plastic conveyor, spiral propeller directly lifting the materials to required height.
Type |
Power (kw) |
Capacity (kg) |
Lifting height (mm) |
Air source (Mpa) |
Dimensions (mm) |
Weight (kg) |
Remark
|
BTSJ-I |
/ |
300 |
700-1100 |
0.4-0.8 |
1200*930*1080 |
120 |
Cylinder tipping lifting mode |
BTSJ-II-1.5 |
1.5 |
300 |
1500 |
/ |
1360*775*2090 |
300 |
Spiral lifting mode |
BTSJ-II-1.9 |
1.5 |
300 |
1900 |
/ |
1360*775*2490 |
350 |
Spiral lifting mode |
BTSJ-II-2.2 |
1.5 |
300 |
2200 |
/ |
1360*775*2800 |
400 |
Spiral lifting mode |
BTSJ-II-2.5 |
1.5 |
300 |
2500 |
/ |
1360*775*3200 |
450 |
Spiral lifting mode |
BTSJ-III |
0.75 |
/ |
2000 |
/ |
2630*510*1900 |
300 |
Modular or plastic belt slope conveying |
BTSJ-IV |
3.0 |
/ |
1800 |
/ |
3600*430*2900 |
280 |
Screw type, variable speed |
BYDJ-I |
/ |
/ |
/ |
/ |
1210*1200*950 |
100 |
Movable base, for model II lifter |

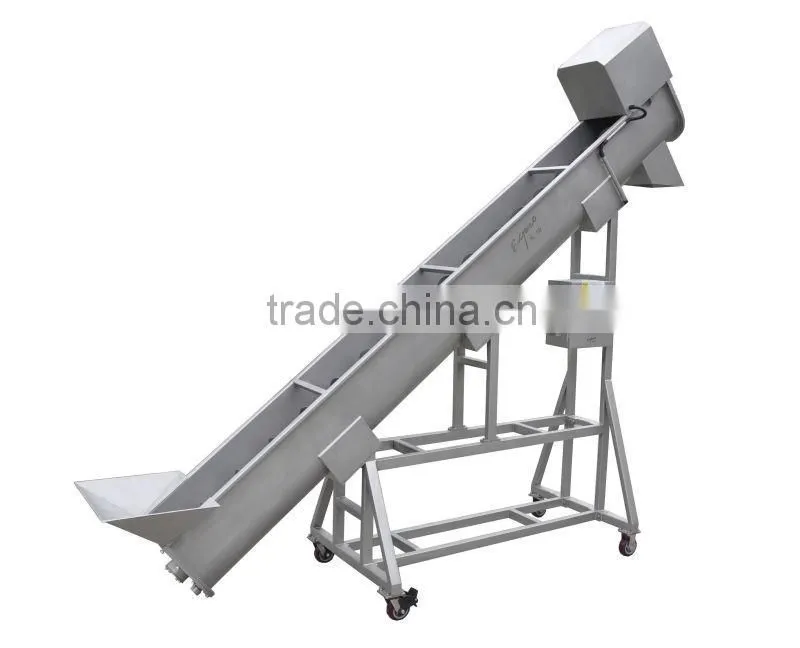

Screw lifter:
tipping lifter:

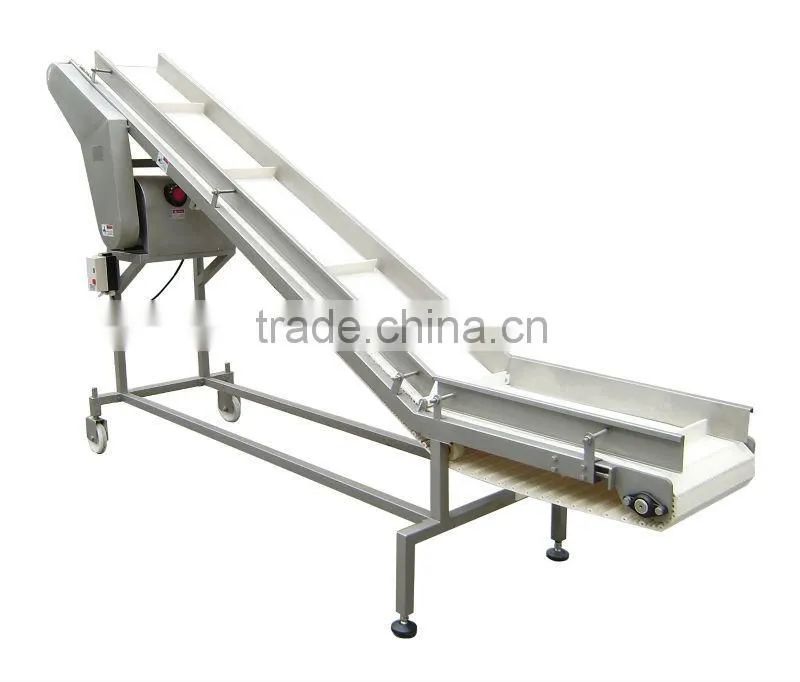

slope conveyor:

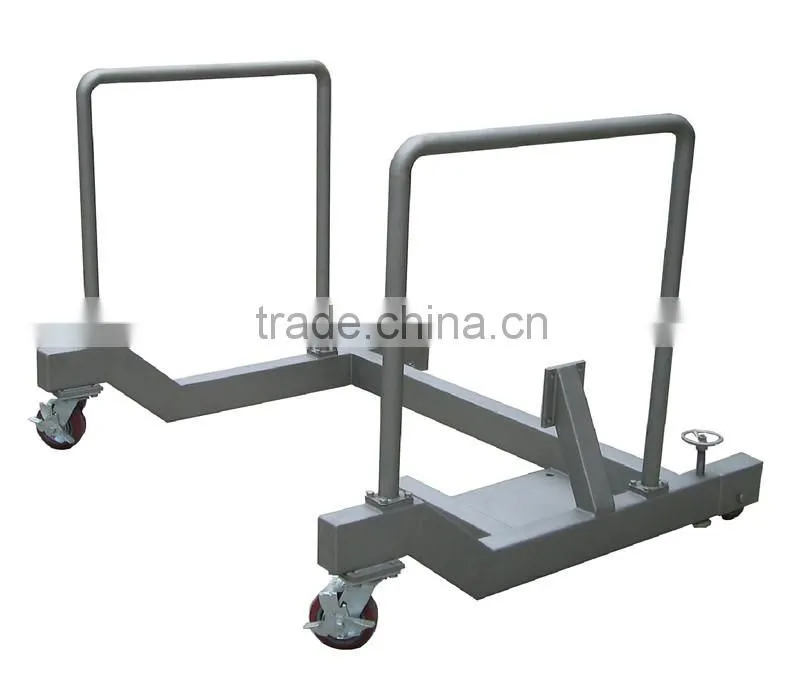

movable base for lifter:
Lifter (with meat vehicle):
Lifter (movable):
