different types meet for different conveying requirements;made of stainless steel;
BSSJ conveyor series has plastic belt, wire belt, modular plastic and support roller types. It is perfectly designed with proper structures. It is reliable, smooth in operation and easy to clean. It can be easily combined with other equipment. It also can be designed to meet special requirements of customers. It is best for transport material in food processing industry.
Plastic belt, wire belt and modular plastic conveyors can have single, double or triple layers of horizontal and/or tilted transportation. It can also be designed for transportation of special paste and lump material. The components of the machine are frames, electrical roller, plastic belts and supporting rollers.
Support roller conveyor can subdivide into plastic support roller transportation and stainless steel support roller transportation, with horizontal tilted and/or curving path transportation. The whole machine consist of frames, decelerating motors, conveyor for support roller and so on.
This series conveyor could be customer-tailored to adopt mechanical stepless control or frequency inverter control.
Type |
Power (kw) |
Belt width (mm) |
Length (m) |
Motor mode |
Speed (m/min) |
Dimensions (mm) |
Remark
|
BSSJ-I-50 |
0.75-2.2 |
500 |
5-20 |
Electric roller |
1-5 |
550*800*5~20m |
Plastic conveyor |
BSSJ-I-65 |
0.75-2.2 |
650 |
5-20 |
Electric roller |
1-5 |
680*800*5~20m |
Plastic conveyor |
BSSJ-I-130 |
0.75-1.5 |
1300 |
2-5 |
Electric roller |
1-5 |
1380*800*2~5m |
Plastic conveyor |
BSSJ-I-50 |
0.75-2.2 |
500 |
5-20 |
Speed reducer |
1-5 |
1300*800*5~20m |
Plastic conveyor,workbench by sides |
BSSJ-II-50 |
1.5-4.4 |
500 |
5-20 |
Speed reducer |
1-5 |
550*800*5~20m |
Plastic or modular belt |
BSSJ-III-50 |
2.5-6.6 |
500 |
5-20 |
Speed reducer |
1-5 |
550*1500*5~20m |
Plastic or modular belt |
BSSJ-W-60 |
0.75-1.5 |
600 |
3-10 |
Speed reducer |
1-5 |
680*800*3~10m |
Stainless steel wire belt |
BSSJ-R-50 |
0.75-2.2 |
500 |
/ |
Speed reducer |
1-5 |
R1300*800 |
For cartons and tubs |
BSSJ-T-50 |
0.75-1.5 |
500 |
5-20 |
Speed reducer |
1-5 |
600*800*5~20m |
For cartons and tubs |
BSSJ-C-60 |
1.47 |
600 |
3-5 |
Speed reducer |
1-5 |
680*800*3~5m |
For cartons and tubs |

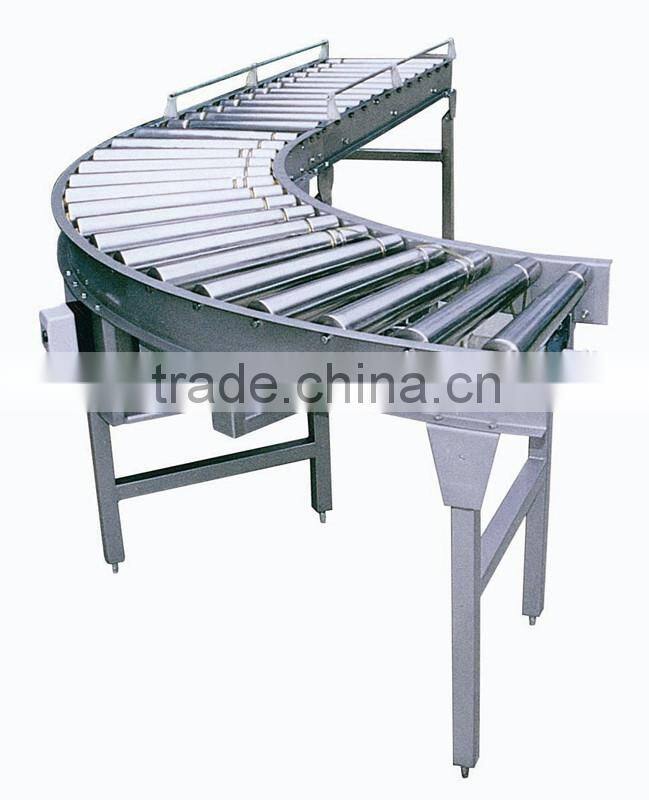

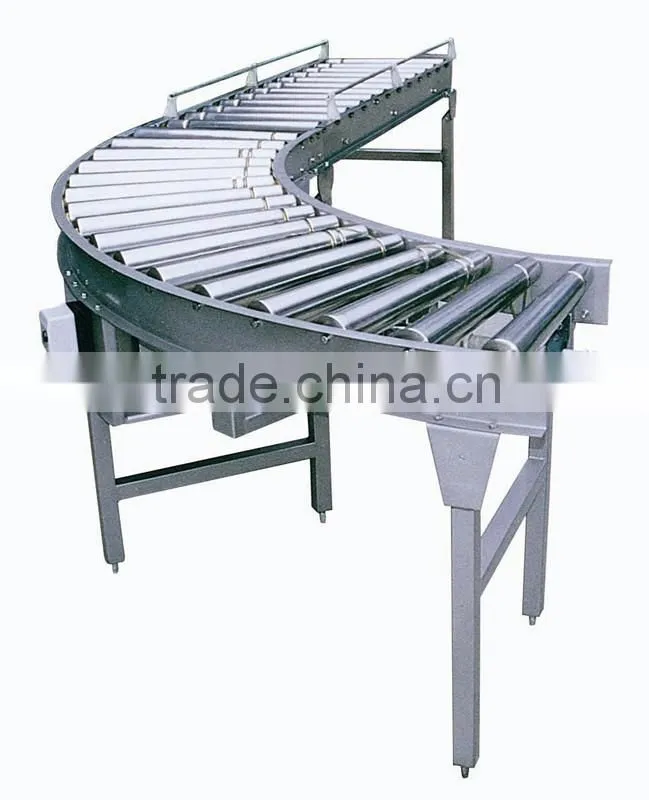

Roller conveyor:

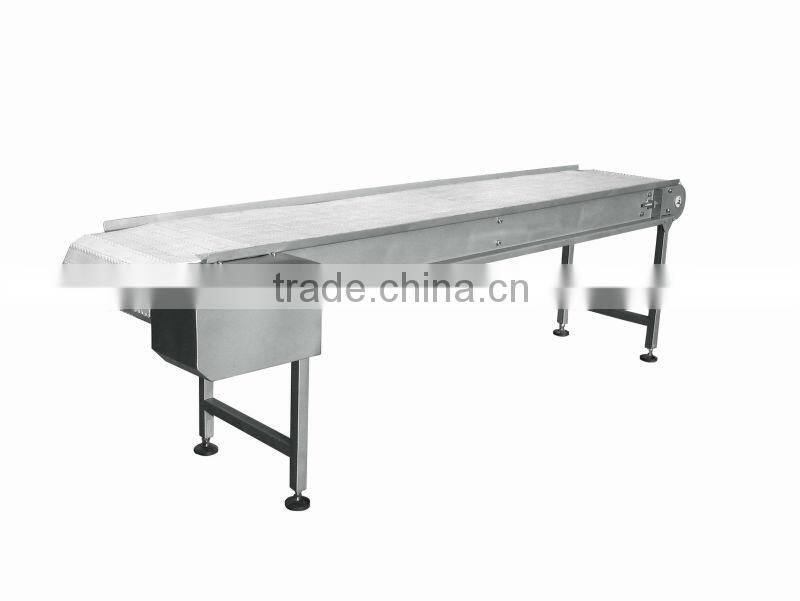

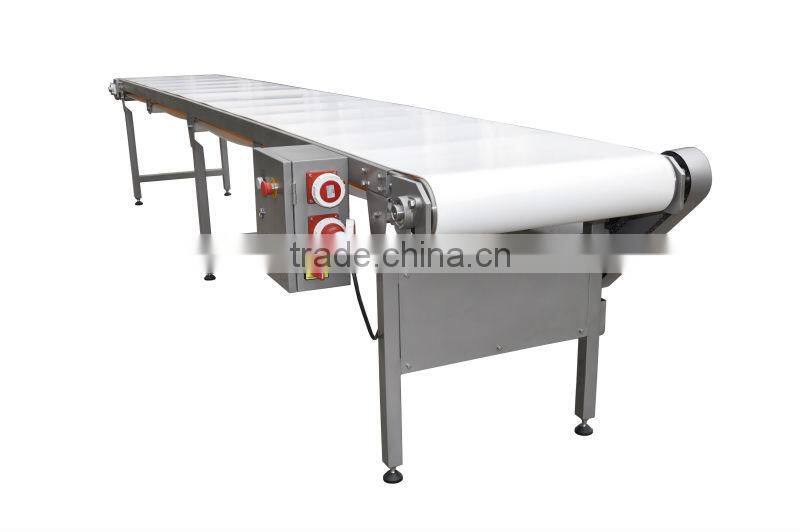

Horizontal conveyor:

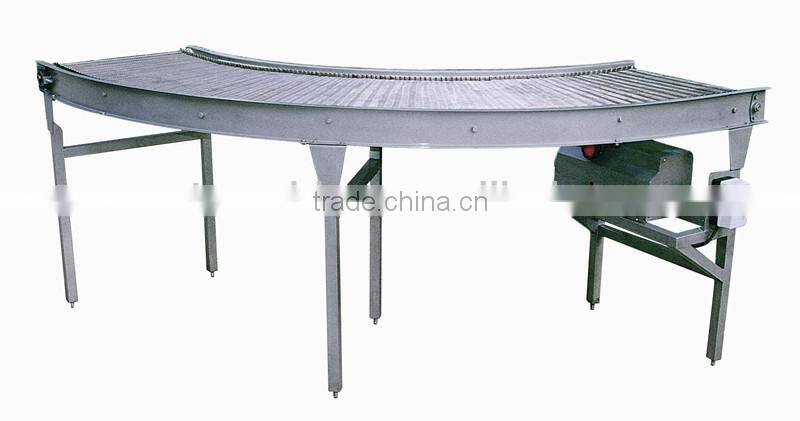

Curve wire belt conveyor:

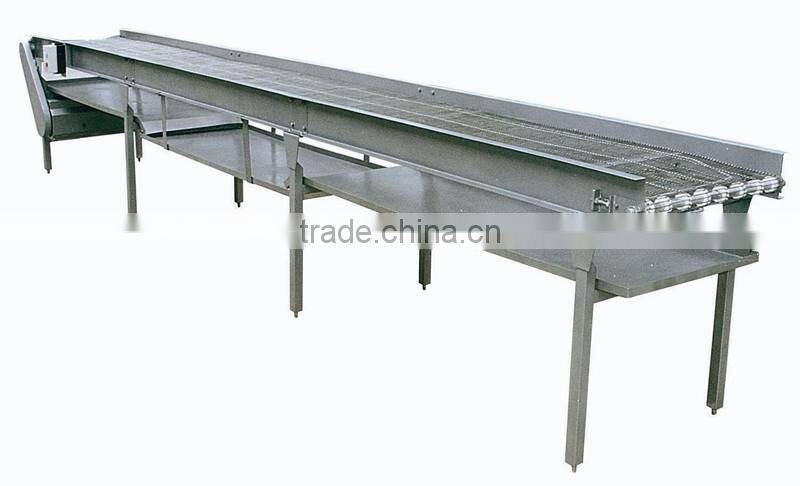

Wire belt conveyor:

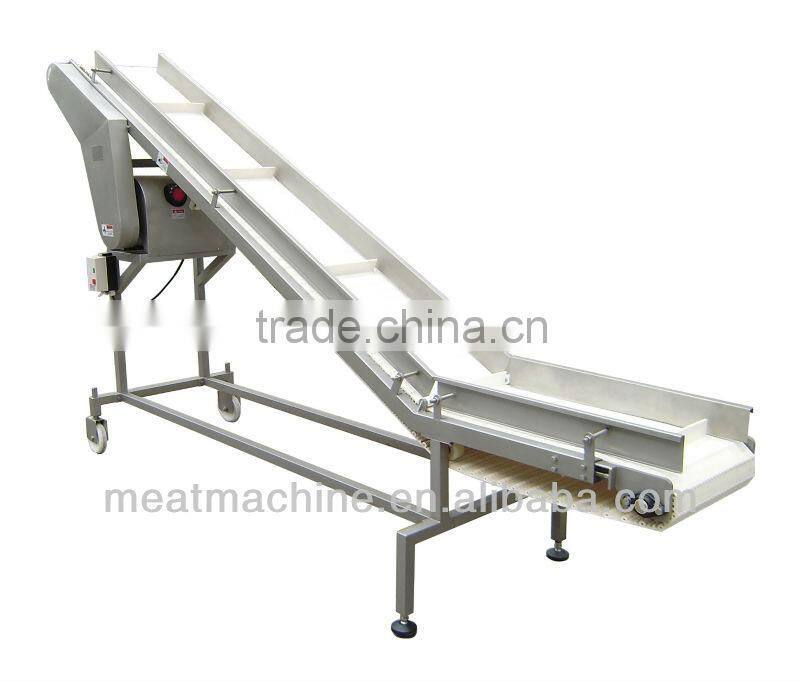

Slope conveyor:

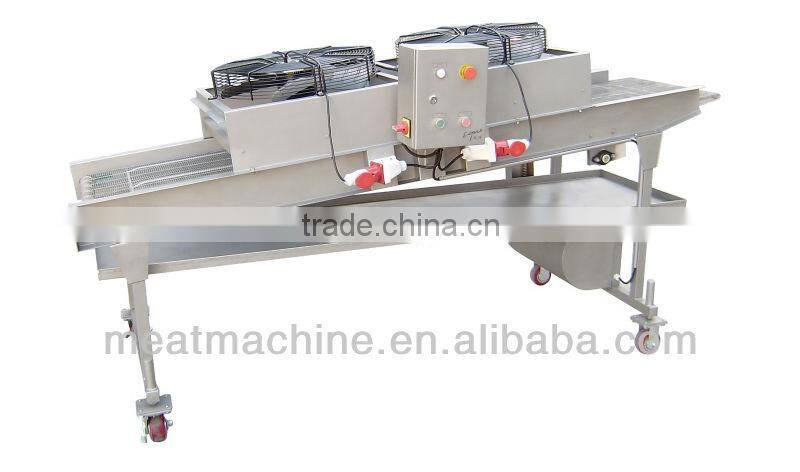

Cooling conveyor:
