CO2 Waterproof Tile Backer Boards
- Shanghai/Ningbo
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OLINGEN | |
| Model Number | OLG-TBB |
Product Description
Insulation & waterproofing solutions - OLINGEN board
OLINGEN board (also known as construction board, tile backer board, insulation backer board ,waterproof backer board ,wet room backer board)
Product structure

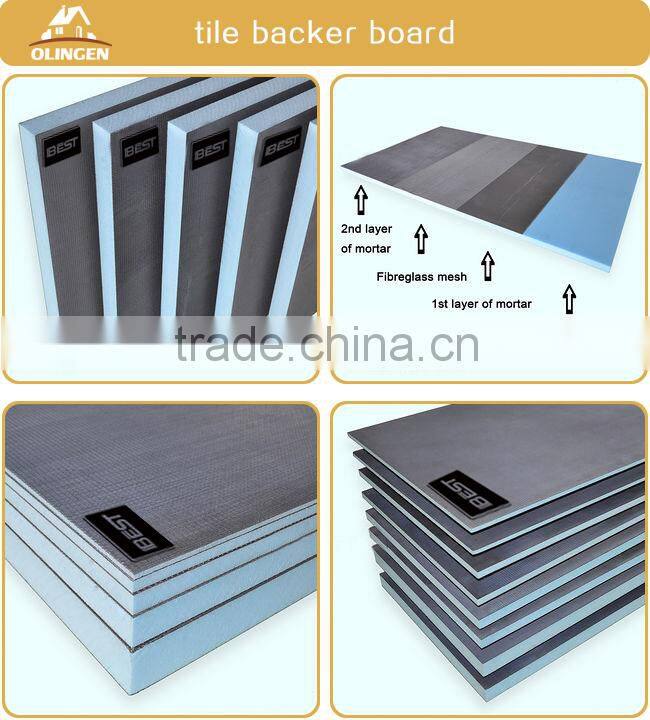

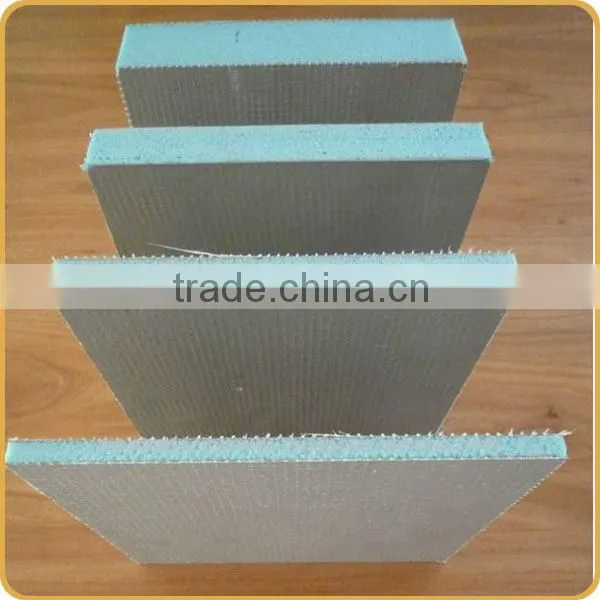

OLINGEN boards are made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.
Outstanding characteristics

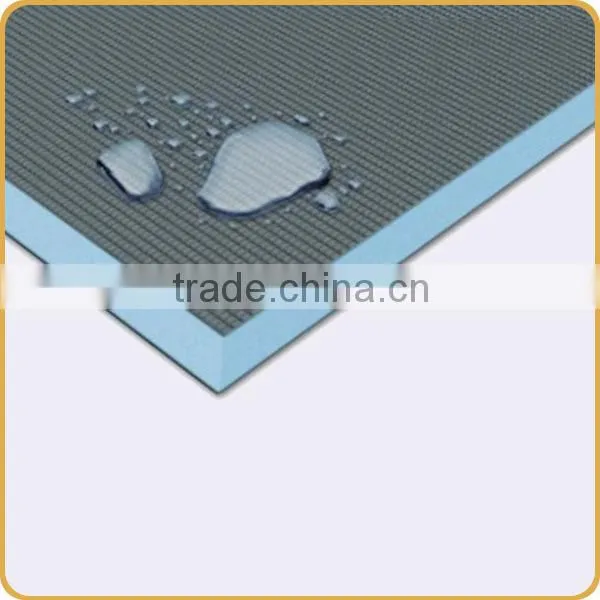

Both insulation and waterproof
Product appearance

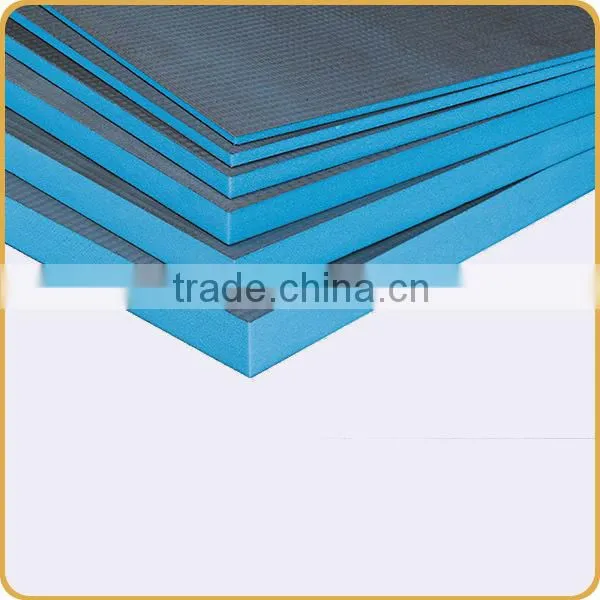

The boards have straight edges. The color of the surface is grey and the core material is light blue
Working temperature range
50 to +80 °C
Standard dimensions and weigh
| Standard dimensions and weight | |||
| Short board | Thickness(mm) | Weight(kg/m²) | Length *width(mm*mm) |
| 6 | 2.7 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 10 | 3.1 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 12 | 3.2 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 20 | 3.5 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 30 | 3.8 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| 50 | 4.3 | 1200*600 | |
| 1220*600 | |||
| 1250*600 | |||
| Standard dimensions and weight | |||
| Long board | Thickness(mm) | Weight(kg/m²) | Length *width(mm*mm) |
| 6 | 2.7 | 2440*600 | |
| 2500*600 | |||
| 10 | 3.1 | 2440*600 | |
| 2500*600 | |||
| 12 | 3.2 | 2440*600 | |
| 2500*600 | |||
| 20 | 3.5 | 2440*600 | |
| 2500*600 | |||
| 30 | 3.8 | 2440*600 | |
| 2500*600 | |||
| 50 | 4.3 | 2440*600 | |
| 2500*600 | |||
Customized sizes and package can be provided as well.
The thickness is not than 100mm
The Width is not than 1200mm
Reaction to fire
The boards are classified as class E according to EN 13501-1. When the boards are covered with tiles, their fire performance should comply with local construction laws and regulations.
Effect on indoor environment
OLINGEN board has been assessed as not emitting any particles, gases or radiation that may have a negativ effect on the indoor climate or to have any significant effect on health.
Environmental declaration
The product does not contain any substances on the observation list of dangerous substances published by the national environmental authorities.
Main applications
Used as a watertight layer on walls and floors in houses, hotels and other wet areas such as bathroom, shower room.
Other applications
Other places to be insulated and waterproofed.
Applications
1. as a watertight layer on walls and floors in wet rooms and bathrooms.
2. as an insulation layer in under floor heating to avoid heat loss.
3. as partition walls in wood or steel frames.
4. substitute for gypsum board and fiber cement board; insulation and waterproofing; lighter so that more easily to install.
5. As enclosures for bathtubs, water pipes, etc.
6,Can very easily and fast formed to be small shelves, washbasins, shower benches and soap boxes.
7. Combining with OLINGEN curved/shapeable boards, kinds of decorative models can be made with your infinite creativity.
Fixing

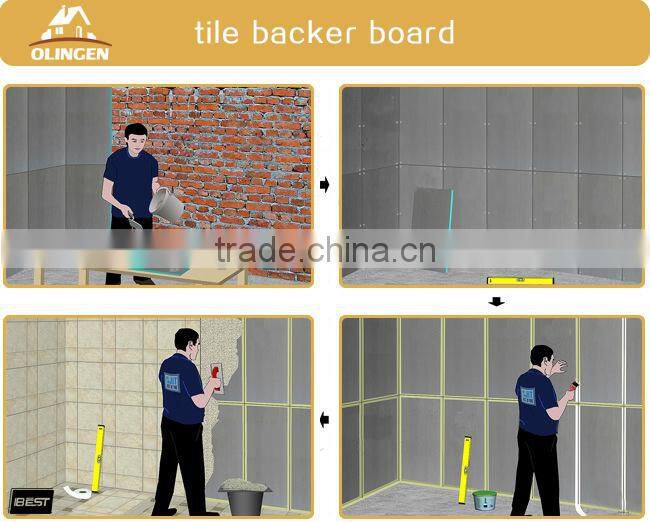

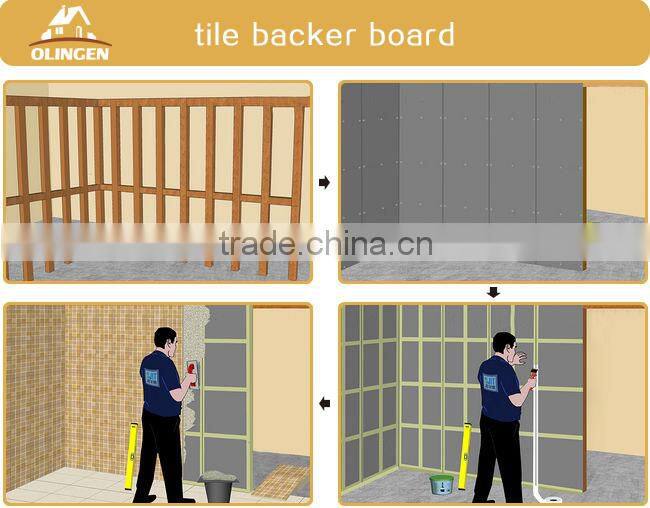

Choose a way to fix OLINGEN boards according to the substrate to be fixed to. Normally, using modified tile adhesive for solid concrete wall/floor and strengthened by mechanical fixings when necessary while only using mechanical fixings for wood and steel frames.
Reinforcement
1. Dry areas: reinforce all joints between boards, floors and walls by 5cm or 10cm wide self-adhesive tape.
2. Wet areas: reinforce by suitable waterproof tape.
Waterproof strengthen
1. Strengthening all joints between boards, floors, walls and mechanical fixings placements by suitable waterproof tape.
2. Strengthening joints between walls, outside corners and inside corners by special corners.
3. Sealing pipe holes with special waterproof tape.
4. Strengthening once again by waterproof glue, liquid tanking membrane, tanking membrane paint, etc. when necessary.
Coating of panels
Should always be covered by ceramic tiles, mosaics or other equivalent non-fireproof materials after installation.
We do OEM as well. Welcome to make an enquiry and we will give you quick response in 8hours!
