Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Olingen | Model Number: | OBB02 |
Product Description

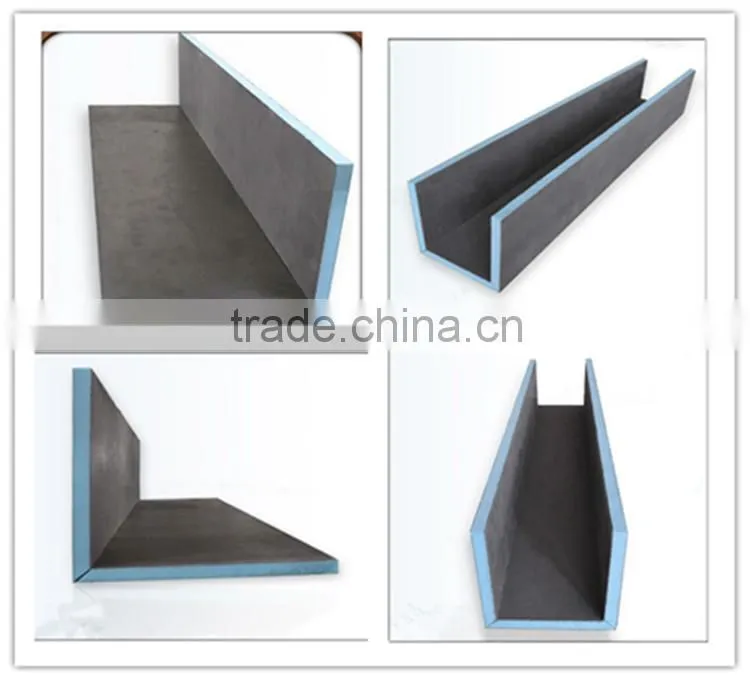

Wedi type angle board

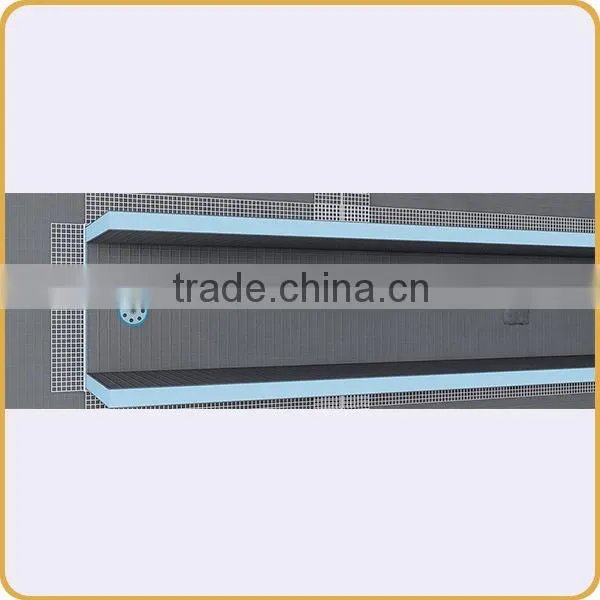

Olingen XPS angled boards are ideal waterproof and insulating materials to enclose water pipes, bathtubs and shower trays by only using tile adhesive and fixings. Tiling can be finished directly on them. Compared with traditional ways, Olingen XPS angled boards can save your time and money a lot with quick and easy installation.
Product structure:
Made of high-performance waterproof extruded polystyrene, it has a 0.75mm coating on either side comprising a glassfiber mesh embedded in a polymer cement mortar.
Specifications
1.L/U shape XPS backer board
2.For bathtub, water pipe
3.Waterproof, insulating, ready to tile
4.20mm thick
5.Easily install
Standard dimensions and packing :
Product name | Size(mm)w*L | L-style width(mm) | Sheets/carton |
L-shaped | 20*1220/2440/1250/2500 | 300*300 | 10 |
L-shaped | 20*1220/2440/1250/2500 | 200*400 | 10 |
L-shaped | 20*1220/2440/1250/2500 | 150*150 | 10 |
U-shaped | 20*1220/2440/1250/2500 | 200*200*200 | 10 |
U-shaped | 20*1220/2440/1250/2500 | 100*400*100 | 10 |
U-shaped | 20*1220/2440/1250/2500 | 150*300*150 | 10 |
The board has the following tolerances:thickness:± 2mm width:± 2mm length:± 3mm
Olingen Group is a professional supplier in architectural material for 20 years, owned 5 factories, 7 subsidiaries and 8 individual brands. Main products include: cultured stone,cultured brick,Sands stone,imitation wooden products,EPS components,brick panel,wall insulation,tile backer board,xps shower tray and other building materials.
