Specifications
Specification1.Economical
2.Reliable quality
3.Can crush kinds of wood/log/branches
Wood Chipper/Timber Chipper Machine
Perfect Performance CE Approved wood chipper/timber chipper machine
Our factory established in 1985,is a highly professional and experienced manufacturer for wood crusher machine/wood chipper pellet machine,briquette machine,sawdust dyer,pellet making line and semi auto brick machine,full auto brick machine,combining development,design, manufacture,sales and services.
1. Usage
This kind of wood crusher machine is the special chipping/crushing equipment for raw wood of 50 to 200mm (diameter).
The diameter of wood sawdust can reach to 2 to 5mm, which is suitable for further pelletizing or briquetting.
2.Structure

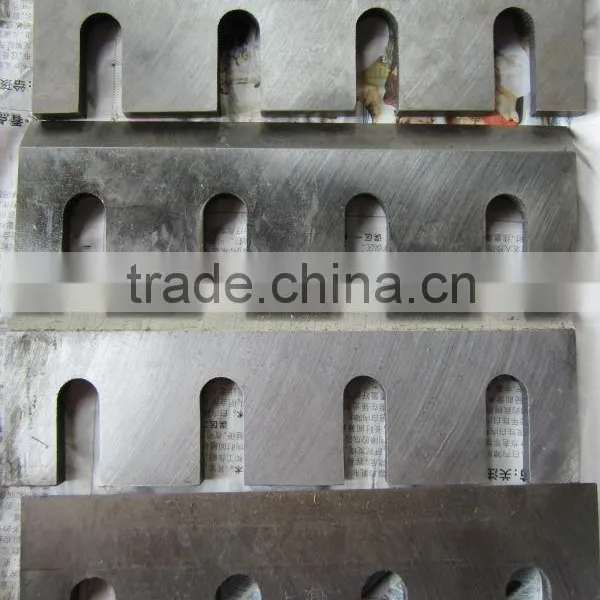

Wood chipper is composed of machine body, blades chipping part, hammers recrushing
part, sieving part and etc. It combines both chipping and crushing equipment in one machine, can make sawdust
in one passage, no need to use wood chipper for preprocessing of wood logs specially.
Wood crusher machineis using slice and blow to work as double break. Its blades chipping part can slice the logs,
roots into small pieces firstly and then the hammers recrushing part will blow these small pieces into nearly powdery material. And the size of final material will depend on aperture of sieve.
Technical parameter of Perfect Performance YGF-600 wood chipper/timber chipper machine
Item |
Specification |
Diameter of cutter head(mm) |
600 |
Rotary speed of spindle centre (r/min) |
1440 |
|
Size of output (with Φ13mm screen) |
≤13mm |
Dimension of feeding opening (mm) |
200*200 |
Productive capacity(kgs/h) |
700 - 900 |
Power of electric motor(kw) |
15 |
Maximum diameter of cutting wood(mm) |
200 |
External dimension(L*W*H) |
1500*900*1000 |

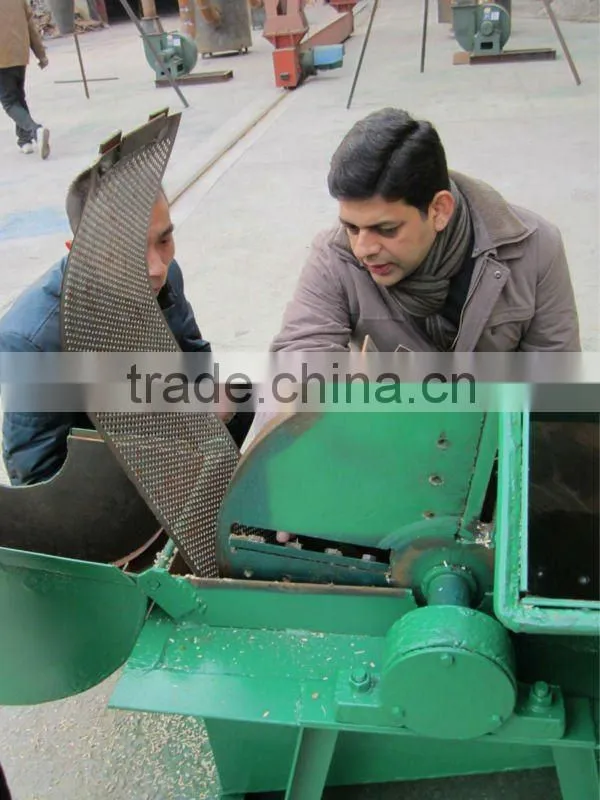

Test of wood chipper/timber chipper machine

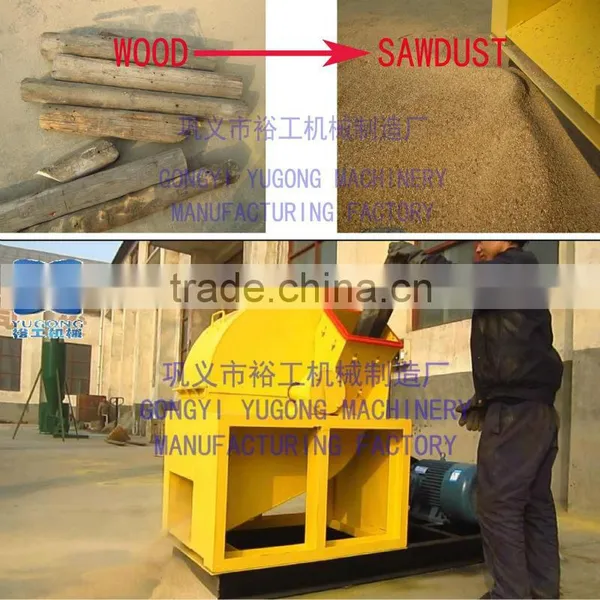

Perfect Performance YGF-600 wood chipper/timber chipper machine from wood to sawdust

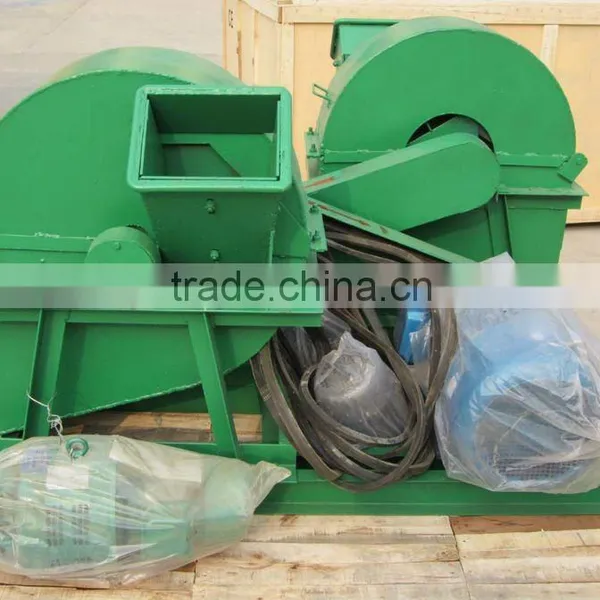

Normal Packing of wood chipper:Export standard wooden case
