Specifications
1-Coolin Pad&Fan system;2-Increase Humidity and Reduce Temprature;
3-Widely used.
4-Auto Controller Offered.

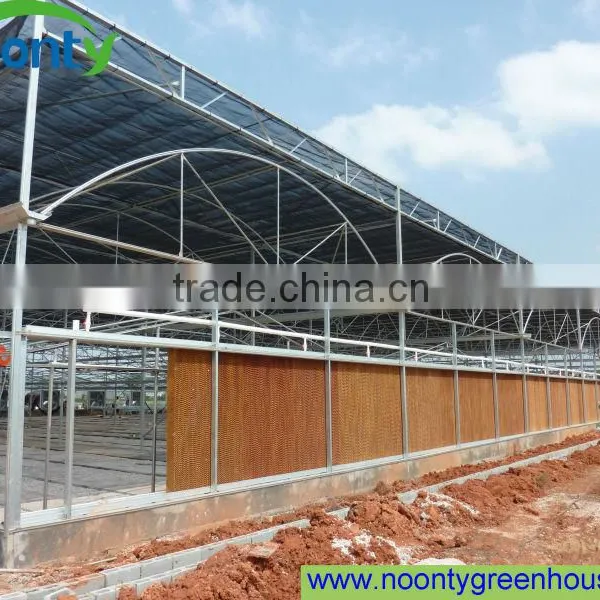

I -Cooling Pad
The Pad is the core of cooling system. It is made of corrugated paper with special technique processing, corroding-resistant, higher wet strength and long life.
Ⅱ-Cooling Fan
Impeller Diameter(mm) |
Rotation (rpm) |
Air delivery (m3/h) |
Power (kw) |
Weight (kg) |
Noise (dB) |
Rating voltage (V) |
Dimension (cm) |
1250 |
392 |
44500 |
1.1 |
90 |
≤65 |
380V/220V,3 phase |
140*140*44 |
III-Auto Controller
The controller can calculate the current target temperature
according the four different time period a day and corresponding temperature
requirement. The process is as follows:
Detect the indoor temperature------Calculate the difference between the current
temperature and the target one------Obtain the cooling requirement value after
further PI calculation------Control the work of Fan & Pad System.
