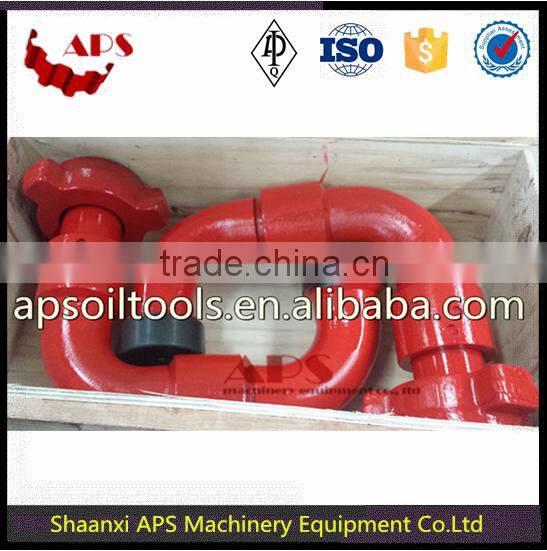

API High Pressure Swivel Joint for tube pipe/Elbow and Union in Oil and Gas
Long and short radius swivel joint:
Long radius swivel joints can minimize fluid shock with good performance of resistance for scouring and erosion. Short radius swivel joints for low pressure operation due to limited installation space.
All sizes of swivel joints sealing parts made of synthetic rubber with release hole are fitted with blowout preventing metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance is enhanced. Usually good lubrication can ensure that swivel joints work normally without much maintenance
Description |
Specification |
Model |
End Connection |
Short radius swivel joints |
1''x3500psi(25Mpa) 1"-1/2x6000psi(42Mpa) 1"-1/2x10000psi(70Mpa) 2"x6000psi(42Mpa) 2"x10000psi(70Mpa) |
Style 10,50 Style 10,50 Style 10,50 Style 10,50 Style 10,50 |
LP Female Thread LP Female Thread LP Female Thread
|
1-1/2"Long radius swivel joints |
1"-1/2x10000psi(70Mpa) 1"-1/2x10000psi(70Mpa)
|
Style 10 Style 50 |
LP Female LP Female |
2"Long radius swivel joints |
2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x15000psi(105Mpa) 2"x15000psi(105Mpa) 2"x20000psi(140Mpa) |
Style 10,20,50 Style 10,50 Style 10,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50
|
LP or TBG Female MxF(Tr100x12.7) MxF(Tr100x12) MxF,MxM,FxF MxF(Tr/America) MxM MxF,MxM,FxF MxF(Tr/America)MxM MxF,MxM |
3"Long radius swivel joints |
3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x15000psi(105Mpa) 3"x15000psi(105Mpa) 3"x20000psi(140Mpa) |
Style 20,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50 |
Lp or TBG Female MxF,MxM,FxF MxF(Tr,America) MxM MxF,MxM,FxF MxF,MxM MxF,MxM |
4"Long radius swivel joints |
4"x6000psi(42Mpa) 4"10000psi(70Mpa) |
Style 10,50 Style 10,50 |
MxF,MxM,FxF MxF,MxM,FxF |
