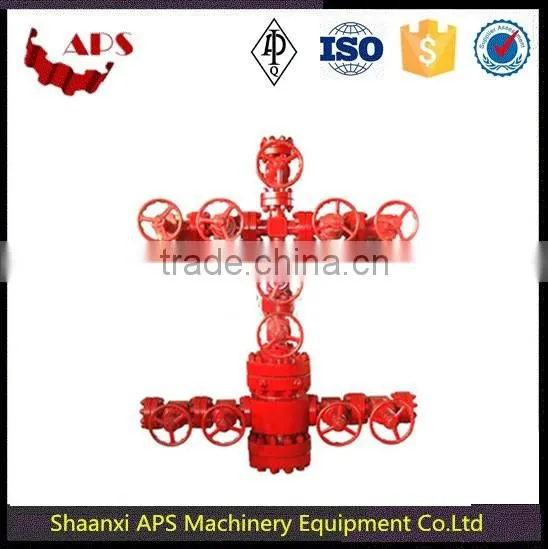

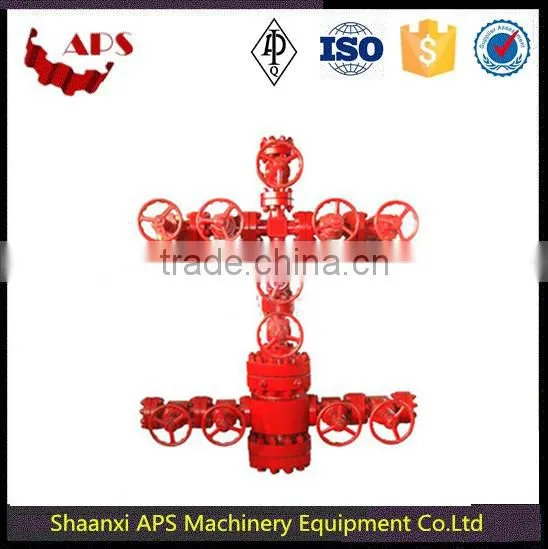

API 6A x-mas tree/tubing hanger/oil and gas industry wellhead casing spool/

Top flange

Top flange

Top flange

Top flange

11"×2000psi (279.4mm×14MPa)

11"×2000psi (279.4mm×14MPa)

11"×5000psi (279.4mm×35MPa)

13-5/8"×5000psi (346.1mm×35MPa)

11"×2000psi (279.4mm×14MPa)

13-5/8"×2000psi (346.1mm×14MPa)

11"×10000psi (279.4mm×70MPa)

13-5/8"×5000psi (346.1mm×35MPa)

11"×3000psi (279.4mm×21MPa)

11"×3000psi (279.4mm×21MPa)

11"×15000psi (279.4mm×105MPa)

13-5/8"×5000psi (346.1mm×35MPa)

11"×3000psi (279.4mm×21MPa)

13-5/8"×2000psi (346.1mm×14MPa)

13-5/8"×5000psi (346.1mm×35MPa)

21-1/14"×2000psi (539.8mm×14MPa)

11"×3000psi (279.4mm×21MPa)

13-5/8"×3000psi (346.1mm×21MPa)

13-5/8"×10000psi (346.1mm×70MPa)

13-5/8"×5000psi (346.1mm×35MPa)

11"×5000psi (279.4mm×35MPa)

13-5/8"×3000psi (346.1mm×21MPa)

13-5/8"×15000psi (346.1mm×105MPa)

13-5/8"×5000psi (346.1mm×35MPa)

Casing Program

20 " X13 3/8 " X9 5/8 " X 7 " or 5 1/2 "

Flanged Outlet

PFF35/80:R35

PFF70/65:BX153

Load Capacity

≤ 5000KN

Hanger Specification

4 ", 4 1/2 ", 5 ", 5 1/2 ", 7 "

Working Pressure

35Mpa~70Mpa

Performance Requirement Grade

PR1,PR2

Product Specification Grade

PSL1-3

Temperature

P·U (-29°C~121°C)

Material Class

AA~FF
