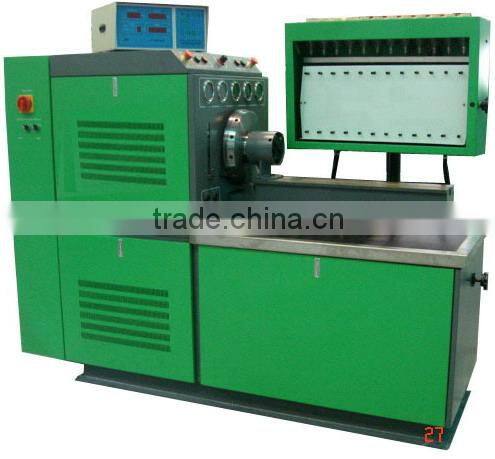

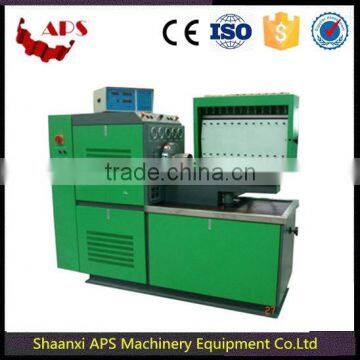

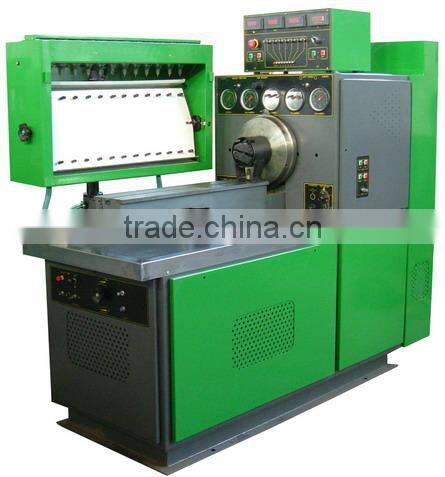

Fuel Pump Test Bench – TST-B,TST-DS
TST-B TST-DS
Functions:
1. Measurement of each cylinder's delivery at any speed.
2. Checking of each cylinder's injection timing with static.
3. Checking of the sealing of injection pump body pump body.
4. Checking of the advance device in dynamics.
5. Checking of the pneumatic governor.
6. Checking of the mechanical governor.
7. Checking of the vacuum capacity of governor.
8. Measurement of the internal pressure of distributor pump body
9. Measurement of the reflux delivery of distributor pump.
10. Testing of the electro-magnetic valve of distributor pump.
11. Checking of the transfer pump.
12. Checking of the LDA
CHARACTERISTIC:
1. Singlechip control technology
2. Rotation speed, temperature, count numeral control by controller.
3. Motor driven by frequency control
4. High torque, low fall of rotation speed
5. Adjusting speed quickly,
6. Continuously variable speed control, pre-setting function
7. Test oil constant temperature control, through the cooling and heating systems
8. With protect function for over and low voltage and short phase.
9. It can test both in-line pumps and distributor ( VE ) pump
Main technical parameters:
1.Drive
Motor power 5.5;7.5;11;15;18.5kw
Speed control manual control
Speed range 0----4000rpm in both directions
The moment of inertia of flywheel 0.55kg/m2
2. Electronical supply 380V/50hz 220v/60hz 3phase (or on request)
3. Center height 125mm
4. Test oil supply
Pump type
Motor power 1.1kw
Discharge capacity 10l/min
Pressure control low pressure 0----0.4Mpa
high pressure 0-----4Mpa
Thank capacity 60L
Oil temperature control controlled temperature 40±2℃
5. Lube oil supply (user option)
Pump type gear pump
Discharge capacity 1.0l/min
Pressure control pressure 0-----0.35Mpa
Tank capacity 10 l
6. Measuring Devices
Graduates 45ml 12pcs
150ml(260ml) 12pcs
Stroke counter 50---1000strokes(every 50 strokes)
7. Indicators
Tachometer pump speed 4 figure LED RPM
Counter 4 figure LED STROKES
Advance angle 4 figure LED DEG
Temperature 4 figure LED ℃
8. Air pressure control
Air pump
Pressure control range 0----0.3Mpa
9. Dimensions 1900x960x1750 mm
10. Weight: 900kg
