Brake Drum/Disc Cutting Machine – C9350C
l . Work Lamp---A work lamp can keep your work piece lighted even in dark area
l . High Efficiency---A convenient design allows to quickly change from rotor to drum
l . Perfect Finish---The perfect finish meets or exceeds all OEM specifications
l . Safe Work Area---A chip bin can keeps your work area clean and safe
l . Heavy Work Bench---The heavy work bench can reduces vibration and chatter ensure the smooth finish
l . Simple Convenience---A tool tray and tool board means you can easy to take
l tools and adapters
l . Infinitely Speed---Variable spindle speed and cross feed speed provide a perfect finish
l . Stop Switch---Two automatic shut-off switches make the motor of rotor and drum automatic stop after finishing.
l . Single Pass---Positive rate tooling for optimum finish with a single pass
l .Low Tool Board---A low board can put all adapters which you
Main specification:
Spindle Travel:6-7/8″/175mm
Spindle Speed:70,88,118RPM
Spindle Feed Speed: 0.002″/0.05mm-0.02″/0.5mm Rev
Cross Feed Speed: 0.002″/0.05mm-0.02″/0.5mm Rev
Handwheel Graduations: 0.002″/0.05mm
Rotor Diameter:7″/180mm-15″/381mm
Rotor Thickness:1-7/8″/48mm
Drum Diameter:6″/152mm-28″/711mm
Drum Depth:6-7/8″/175mm
Power: 1P/220V / 50Hz,
1P/110V / 60Hz,
3P/380V / 50Hz,
Shipping Weight:290KG
Dimension:970x920x1140mm

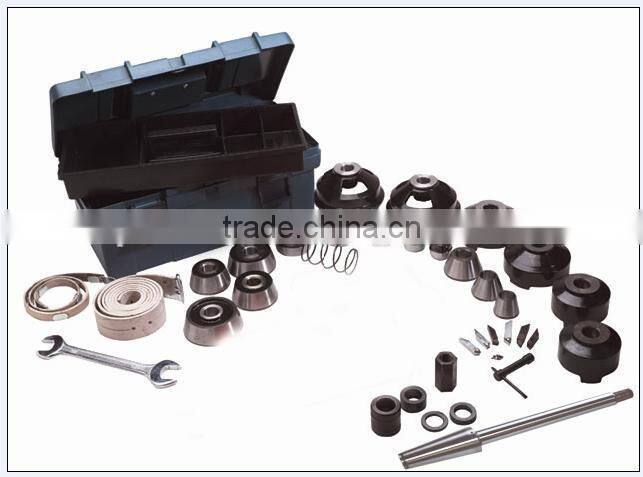

Standard Accessories
No. |
Description |
Qty. |
1 |
Storage Case Top Tray |
1 |
2 |
Storage Case |
1 |
3 |
Twin-Cutter Assembly |
1 |
4 |
Boring Bar |
1 |
5 |
Hubless Adapter /94mm |
1 |
6 |
Hubless Adapter /94mm |
1 |
7 |
Hubless Adapter /116mm |
1 |
8 |
Hubless Adapter /116mm |
1 |
9 |
Hubless Adapter /146mm |
1 |
10 |
Hubless Adapter /146mm |
1 |
11 |
Centering Cone (30×44mm) |
1 |
12 |
Centering Cone (31×57mm) |
1 |
13 |
Centering Cone (45×70mm) |
1 |
14 |
Double Taper Adapter(34x42mm) |
1 |
15 |
Double Taper Adapter(35x43mm) |
1 |
16 |
Double Taper Adapter(44x52mm) |
1 |
17 |
Double Taper Adapter(52x62mm) |
1 |
18 |
Double Taper Adapter(62x71mm) |
1 |
19 |
Centering Cone (59×75mm) |
1 |
20 |
Centering Cone (66×82mm) |
1 |
21 |
Centering Cone(74x90mm) |
1 |
22 |
Centering Cone(85.8x103mm) |
1 |
23 |
Spacer /6.35mm |
1 |
24 |
Spacer /12.7mm |
1 |
25 |
Spacer /25.4mm |
1 |
26 |
Self Aligning Washer |
1 |
27 |
Arbor Nut /47.6mm |
1 |
28 |
Small Vibration Band/Rotors |
1 |
29 |
Large Vibration Band/Drums |
1 |
30 |
Wrench/Large |
1 |
31 |
Wrench/Small |
1 |
32 |
Cutting Tips |
6 |
33 |
Arbor /φ25.4mm |
1 |
34 |
Arbor Spring |
1 |
35 |
V-Belt /A610 V-Belt |
1 |
36 |
Special Wrench /T9 |
1 |
37 |
Main Machine |
1 |
38 |
Lathe Bench(include 20 hooks) |
1 |
