Brake Drums and Discs Machine-T8360,T8370

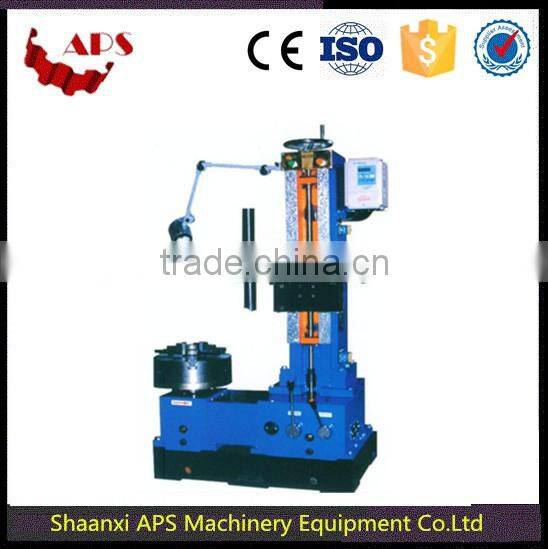

T8370 NC Brake Drum Cutting Machine is an advanced brake drum machining equipment contributed by our factory to customer recently. The operation, stop and speed change of the spindle is completely controlled by computer, with easy and convenient operation, advanced in performance and reliability.
The spindle is used with advanced variable frequency and adjustable speed, it can achieve stepless speed regulating from 30-125r/min. All operations are controlled by keyboard and knobs. In spindle with wide application for lathe types; it is very convenient for set up of brake drum without wheel hub, very convenient for your application..
Main specifications:
Drum diameter range:200~700 mm
Maximum drum depth:320 mm
Spindle speed (third class)25,45,80 r/min
Maximum feed speed:0.40 mm/r
Maximum feed depth:1 mm
Tool holder lift speed:480 m/min
Motor: Y90S-4-B3 380V 1.1kW 1420 r/min
V belt: A900×2
Weight: 850kg
Dimension(LxWxD):1045mm×865mm×1500 m
Standard accessory packing list:
