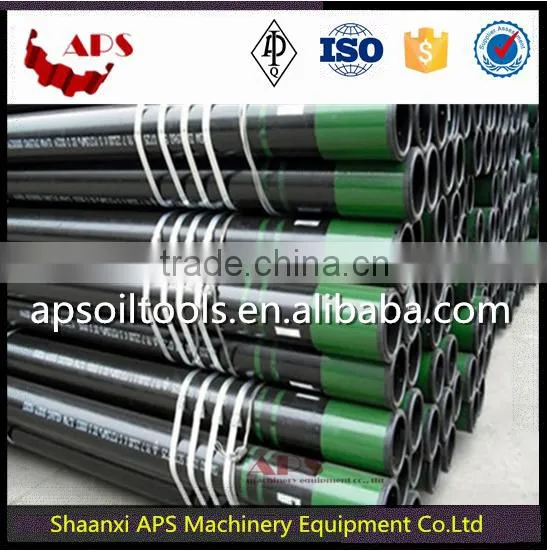

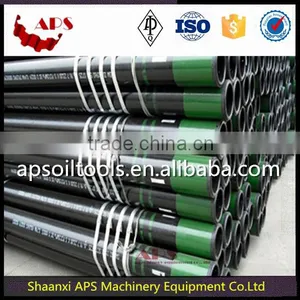

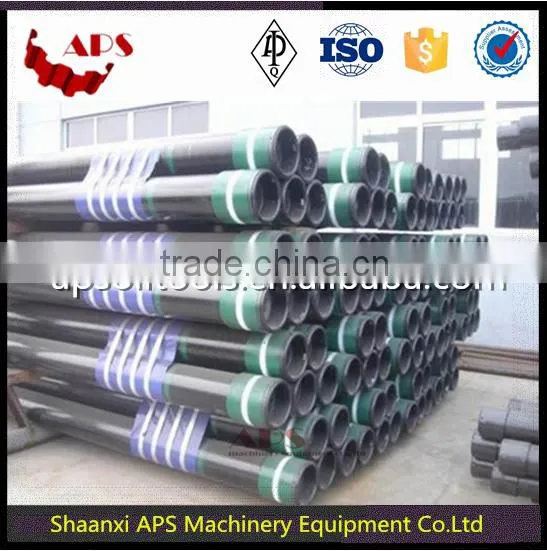

Oil Pipes API 5CT Oilfield Casing for Steel Grade J55, N80 in Oil and Gas/Casing Pipe for Oil Well Drilling
US$ 1 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
5.21, 16.13
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oil Pipes API 5CT Tubing Pipe in Oil and Gas/Steel Grade J55 N80 Oil Tubing Drill Rod for Drilling EquipmentUS$ 1 - 100MOQ: 10 Pieces -
API Oil and Gas Non-magnetic/Drill Rod/Spiral Drill Collar in Oil Pipe Drilling Equipment/Trade AssuranceUS$ 1,000 - 2,000MOQ: 1 Piece
-
Oil and Gas API 5DP Steel Drill Pipe Grade E75, G105, S135 Drill Rod, Oil Drilling PipeUS$ 1 - 3,000MOQ: 1 Ton
-
API 5DP Drill Pipe for Oilfield Drilling S135/G105 APS Machinery Equipment Co., Ltd.US$ 15 - 30MOQ: 1 Piece
-
Api AISI 4137 Alloy Steel NC26~NC50 Drill Pipes Tool Joint Copper Plated in Oil and Gas IndustryUS$ 20 - 2,000MOQ: 1 Piece
Thickness
5.21, 16.13
Section Shape
Round
Outer Diameter
4.05 - 20 mm
Secondary Or Not
Non-secondary
Application
Oil Pipe
Technique
Hot Rolled
Certification
API
Surface Treatment
Other, Black painting, Galvanized, Oiled, Anti-corrosion painting etc
Special Pipe
API Pipe
Alloy Or Not
Non-alloy
Oil pipes API 5CT Oilfield Casing for Steel Grade J55, N80 in oil and gas/Casing pipe for oil well drilling
Product Description
* Details:
Casing is large diameter pipe that is assembled and inserted into a recently drilled section of a borehole and typically held into place with cement. And we provide various Seamless Casing from 4-1/2’’-20’’ in grade H40, J55,K55,N80,L80,C95,P110 etc. The Casing length range is R1,R2,R3,with threads of BTC,LTC,STC. According to the strength of steel casing can be divided into different steel grade, deep well, using different steel grade. In corrosive environment also requires the casing itself has corrosion resistance. In the complicated geologic condition place also asked the casing having a anti-collapse performance.
* Specifications: Oil Casing Pipe
| OD: | 4-1/2“ to 20“/ 114.3mm to 508mm |
| Wall Thickness: | 5.21 - 16.13 mm |
| Thread: | STC.BTC.LTC |
| Length: | R1(4.88-7.62M). R2(7.62-10.36M). R3(10.36-14.63Meters) |
| Standard: | API 5CT |
Grade: |
J55, K55, M65, N80,N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C90, C95, T95, P110, Q125 |
Technical parameter
| Outside Diameter | Wall Thickness | Grade | Thread | ||
| Inch | mm | kg/m | Ib/ft | ||
| 4 1/2'' | 114.3 | 14.14-22.47 | 9.50-15.10 | J55/K55/N80/L80/P110 | STC/LTC/BTC |
| 5'' | 127 | 17.11-35.86 | 11.50-24.10 | J55/K55/N80/L80/P111 | STC/LTC/BTC |
| 5 1/2'' | 139.7 | 20.83-64.14 | 14.00-43.10 | J55/K55/N80/L80/P112 | STC/LTC/BTC |
| 6 5/8'' | 168.28 | 29.76-47.62 | 20.00-32.00 | J55/K55/N80/L80/P113 | STC/LTC/BTC |
| 7'' | 177.8 | 25.30-84.98 | 17.00-57.10 | J55/K55/N80/L80/P114 | STC/LTC/BTC |
| 7 5/8'' | 193.68 | 35.72-82.30 | 24.00-55.30 | J55/K55/N80/L80/P115 | STC/LTC/BTC |
| 8 5/8'' | 219.08 | 35.72-72.92 | 24.00-49.00 | J55/K55/N80/L80/P116 | STC/LTC/BTC |
| 9 5/8'' | 244.48 | 48.07-112.51 | 32.30-75.60 | J55/K55/N80/L80/P117 | STC/LTC/BTC |
| 10 3/4'' | 273.05 | 48.74-126.94 | 32.75-85.30 | J55/K55/N80/L80/P118 | STC/LTC/BTC |
| 11 3/4'' | 298.45 | 62.50-105.66 | 42.00-71.00 | J55/K55/N80/L80/P119 | STC/LTC/BTC |
| 13 3/8'' | 339.73 | 71.43-107.15 | 48.00-72.00 | J55/K55/N80/L80/P120 | STC/LTC/BTC |
| 16'' | 406.4 | 96.73-162.21 | 65.00-109.00 | J55/K55/N80/L80/P121 | STC/LTC/BTC |
| 18 5/8'' | 473.08 | 130.22 | 87.5 | J55/K55/N80/L80/P122 | STC/LTC/BTC |
| 20'' | 508 | 139.89-197.93 | 94.00-133.00 | J55/K55/N80/L80/P123 | STC/LTC/BTC |
Visual Flow Chart

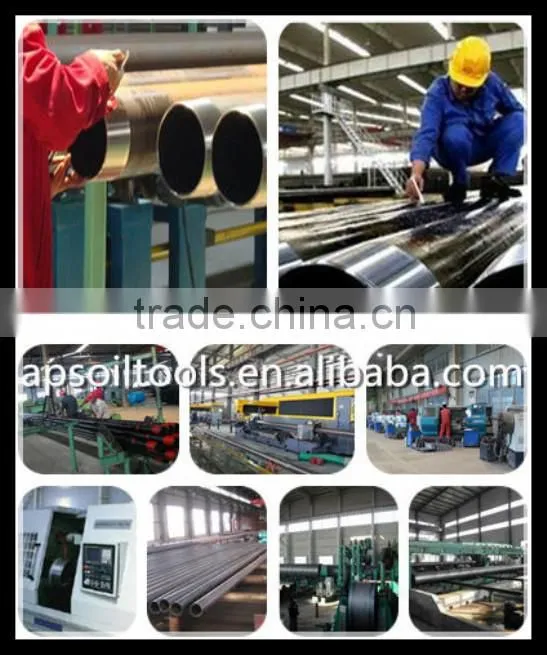

Test & Production
Note
