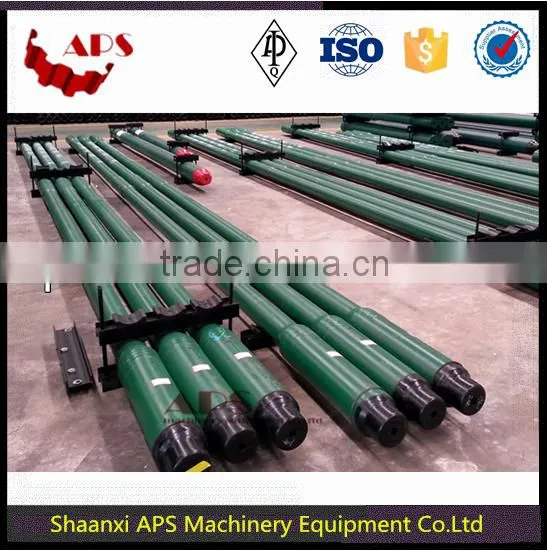

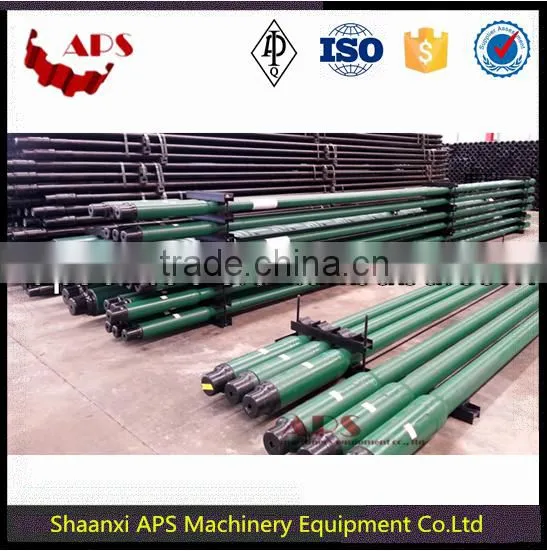

Integral Heavy Weight Drill Pipe/API Drill Rod/HWDP in Oil and Gas/Superior Drill Pipe
We supply integral heavy weight drill pipe from 3-1/2” to 6-5/8”. Also can supply friction welded HWDP, which is assembled with AISI 1340 steel pipe and AISI 4145H or 4137H tool joints. The HWDP is intended primarily for directional drilling. As it bends easily, it simplifies directional control and minimizes connection fatigue problems common to high-angle or horizontal drilling.
* HWDP include:
Integral HWDP (3 1/2” – 6 5/8”),
Integral Spiral HWDP (3 1/2” - 5”)
Friction Welding HWDP (3 1/2” to 6 5/8”).
Size(in) |
O.D (in) |
I.D. (in) |
Tool Joint O.D. (in) |
Tool Joint I.D. (in) |
Connection |
Max.elevator diameter (in) |
Central upset dia. (in) |
Min.drift dia.size (in) |
3 1/2 |
3 1/2 |
2 1/4 |
4 3/4 |
2 1/4 |
NC38 |
3 7/8 |
4 |
2 |
2 1/16 |
2 1/16 |
1 13/16 |
||||||
4 |
4 |
2 1/2 |
5 1/4 |
2 1/2 |
NC40 |
4 3/16 |
4 1/2 |
2 1/4 |
2 9/16 |
2 9/16 |
2 5/16 |
||||||
4 1/2 |
4 1/2 |
2 11/16 |
6 1/4 |
2 11/16 |
NC46 |
4 11/16 |
5 |
2 7/16 |
2 3/4 |
2 3/4 |
2 1/2 |
||||||
2 13/16 |
2 13/16 |
2 9/16 |
||||||
5 |
5 |
3 |
6 5/8 |
3 |
NC50 |
5 1/8 |
5 1/2 |
2 3/4 |
5 1/2 |
5 1/2 |
3 1/4 |
7 |
3 1/4 |
5 1/2 FH |
5 11/16 |
6 |
3 |
3 3/8 |
3 3/8 |
3 1/8 |
||||||
3 7/8 |
3 7/8 |
3 5/8 |
||||||
4 |
4 |
3 3/4 |
||||||
6 5/8 |
6 5/8 |
4 |
8 |
4 |
6 5/8 FH |
6 15/16 |
7 1/8 |
3 3/4 |
4 1/2 |
4 1/2 |
4 1/4 |
||||||
5 |
5 |
4 3/4 |
*Integral HWDP Material AISI 4145H
*Welded HWDP Joint Material AISI 4145H,Welded HWDP Body Material AISI1340
*Hardbanding: Arnco 100XT, Arnco 300XT,BoTn 1000,BoTn 3000
*Internal Plastic Coating: TC2000,DPC2000,TK34,TK34P
