Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > NEW,CE,ISO CNC Lathe TK36

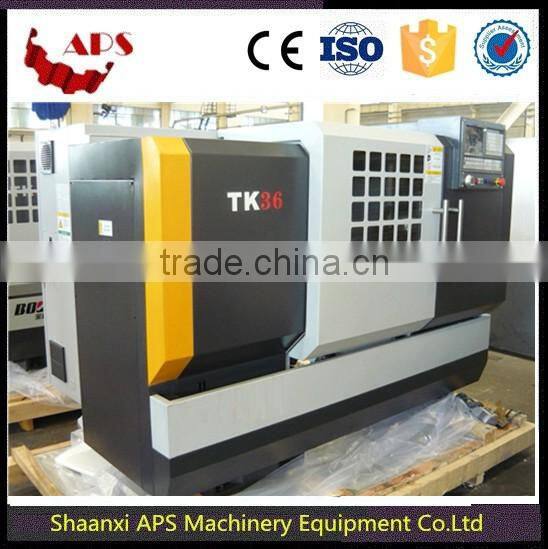

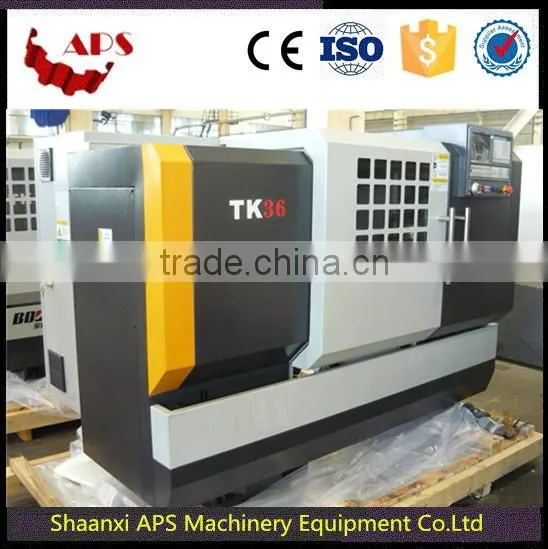

NEW,CE,ISO CNC Lathe TK36

Shaanxi APS Machinery Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 360mm

Place of Origin Shaanxi, China

Brand Name APS

Model Number CNC Lathe TK36

Voltage 110/220/380/400 V/3P

Power(W) 5.5KW

Dimension(L*W*H) 2305X1258X1655MM

Weight 1700

Certification ISO,CE

After-sales Service Provided Engineers available to service machinery overseas

CNC Lathe -TK36

Lathe Feature

This CNC lathe controlled by Guangzhou NC or KND 1000T system and with 2-controllable axes.

Operations of internal and external turning, taper turning, circular surface turning, inch and metric threading are performed.

The lathe features a 4-station turret to satisfy different cutting requirement, a sliding door and a variety of caution plates to guarantee safety for operators.

It is applicable to batch production of multi-specification work, especially precision work in complex contours.

Specification:

Item		UNIT	TK36
Capacity	Max.swing over bed	mm	Φ360
	Max.swing over slide	mm	Φ180
	Max.turning dia.over bed	mm	Φ320
	Distance between centers	mm	750
	Max.turning length	mm	650
Spindle	Spindle thru hole	mm	Φ57
	Spindle nose		D type No.6
	Spindle speed	r/min	140-3000(stepless)
	Chuck dia.	mm	Φ200
	Main motor power	kw	5.5(freq.inverting)
Tailstock	Quill dia./movement	mm	Φ55/120
Tailstock	Taper of center		MT No.4
Carriage	X/Z-axis travel	mm	200/660
Carriage	Rapid traverse rate	m/min	10/12
Turret	Number of stations/type		4/vertical
	Tool size	mm	20X20
	Power source	kVA	12
	Dimension(LXWXH)	mm	2305X1258X1655
	Gross weight	kg	1700
