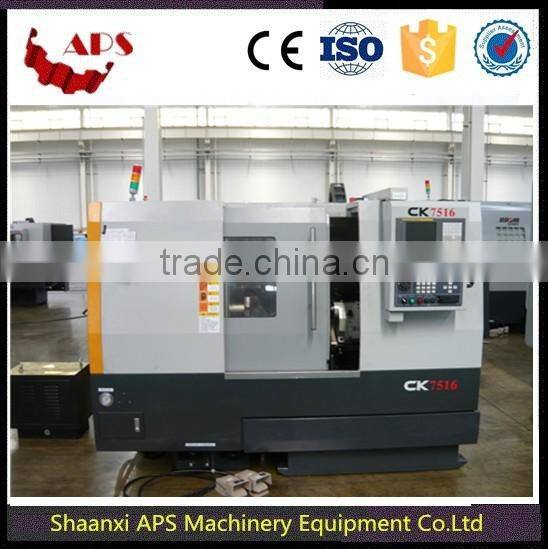

NEW,CE,ISO, CNC Lathe -CK7516 ,swing Diameter 400mm

CNC Lathe -CK7516

CK series lahes, its strengt, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe designed with high vibration strength, adopts high grade cast iron bed base, slant guideways, a high precision though-hole spindle driven by large-field AC main motor. Key parts like barings of main spindle and feeding screw are all famous foreign products. The multi—station turret indexees fast and contiduously with a high repeatability and changes tool proximately. The lathe can be equipped with Fanuc 0i TC, Fanuc 0i Mate, Siemens 810D, 802D. Dasen 3i and etc on request. Or other top brand control systems from both China and foreign countries(hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).

The lathe is designed with unique apearance, easy operated panel, full-enclosed guard, whick can prevent the leakage of water, poweroil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and hign performance.

Main Features                                     Standard Equpment

Large—feld type-AC spindle motor                            Fanuc 0i CNC system

Massive spindle torque                                      Fanuc digital AC spindle and servo motor

Larger spindle bore                                          Hydraulic Power unit

Larger diameter ball screw and AC servo motor                 Hydraulic chuck

Rigid slant bed                                              12 station turret

Hardened and ground guideways                              Coolant supply system

Bi-directional tailstock and quill                                Lubrication unit

Axial safe torque limiter clutch                                 Opeartion & Maintenance manual

Automatic tool setter                                         Gernal tools

Rapid federate                                              Leveling pad plates and a special bend plate

Temperature adjustor for ventilation of electrical unit cabinet

Dial indicating hydraulic pressure gauge

Linear guideways (for CK7516C, CK7520C, CK7525C only)
