Specifications
1) Machine for Drying Fruit2) 100--500kg /batch
3) hot air circulating drying type
4) excellent quality

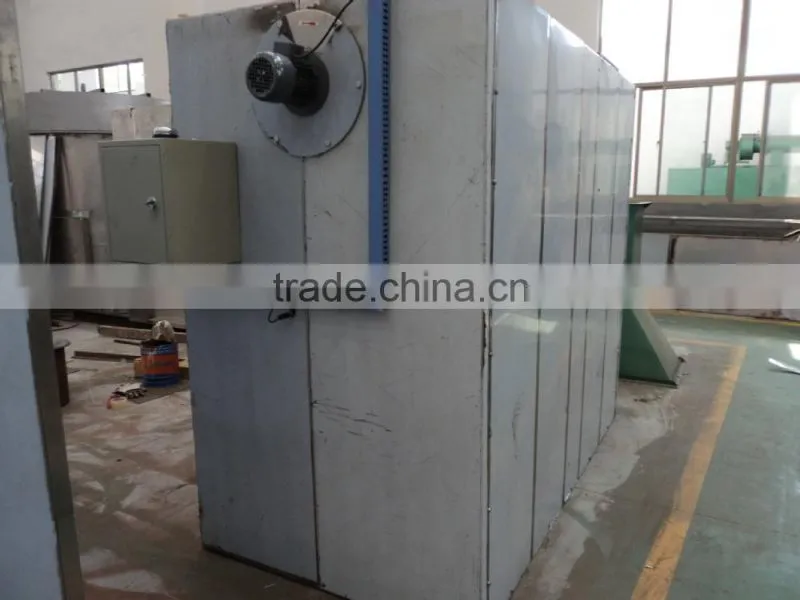

Machine for Drying Fruit 100--500kg/batch with Cart and Plates
Descriptions:
This hot air circulating machine for drying fruit is made with a low noise anti-high temperature axial flow fan and automatic control temperature system.
The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increase from 3-7% of the traditional drying oven to 35-45% of the present one.
The highest heat efficiency can reach 50%.
Technical Parameters:
Model |
capacity (kg/batch) |
Power (KW) |
Consumed steam(kg/h) |
Air capacity(m3/h) |
Allowed difference in temperature(°C) |
Matched baking plate(piece) |
Overall dimension(mm) |
Matched baking cart (set) |
DRC-C-I |
100-120 |
15 |
18 |
3450 |
±2 |
48 |
2300×1200 × 2000 |
2 |
DRC-C-II |
200-240 |
30 |
36 |
6900 |
±2 |
96 |
2300 × 2200 × 2000 |
4 |
DRC-C-III |
300-360 |
45 |
54 |
10350 |
±2 |
144 |
3300 × 2200 × 2000 |
6 |
DRC-C-IV |
400-480 |
60 |
72 |
13800 |
±2 |
192 |
4460 × 2200 × 2290 |
8 |
Main application:
This Machine for Drying Fruit is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries.
Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Package: Wooden case or Full container load (based on order quantity)
Delivery Time: 15-18 days after your payment.
Warranty: The machines are in 13 months guarantee except the wearing parts
Order process:
offer---place order--- make contract --- advance payment--- Machine for Drying Fruit production --- book shipping space--- delivery --- B/L copy – down payment --- send the buyer the original B/L --- ship reach the destination-- The buyer picks up the goods with original B/L
Welcome to conatct us:
Shenzhen Deric Instrument & Equipment
E-mail: sales@dericmachinedotcom
Skype: r
Mobile: 0086 18538098863
Send Inquiry to This Supplier
