Oilfield Replaceable Sleeve Stabilizer According to API Spec./downhole Drill Stabilizer for Oil Well Drilling Tool
US$ 1,000 - 10,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
APS
Model Number:
Replaceable Sleeve Stabilizer
Type:
Stabilizer
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fixed Diameter Hole Opener for Oil Well Drilling/API Hole Opener 4145H Mod in Oilfield/extral CuttersUS$ 1,000 - 15,000MOQ: 1 Piece -
API Oil Well Drilling Stabilizer/Spiral and Straight Integral Blade Stabilizer in Oilfield/Drill String and Near Bit StabilizerUS$ 1,000 - 15,000MOQ: 1 Piece
-
API 7-1 Straight and Spiral Integral Blade Stabilizer for Oil Well Drilling/AISI 4145H Mod Drill Stabilizer String/near BitUS$ 1,000 - 15,000MOQ: 1 Piece
-
API 7-1 Drilling Stabilizer, Integral Blade Stabilizer up to 42'' HF1000~5000, Non-magnetic StabilizerUS$ 500 - 10,000MOQ: 1 Piece
-
API AISI 4145H Mod Drill Stabilizer, Integral Spiral and Straight Blade Stabilizer, Oil and Gas BHA Oil Downhole Drilling ToolsUS$ 1,000 - 15,000MOQ: 1 Piece
Brand Name
APS
Model Number
Replaceable Sleeve Stabilizer
Type
Stabilizer
Machine Type
Drilling Tool
Certification
API
Material
Other, Alloy steel
Processing Type
Forging
Use
Well Drilling
Oilfield Replaceable Sleeve Stabilizer according to API spec./downhole drill stabilizer for Oil well drilling tool
Product Description
Details:

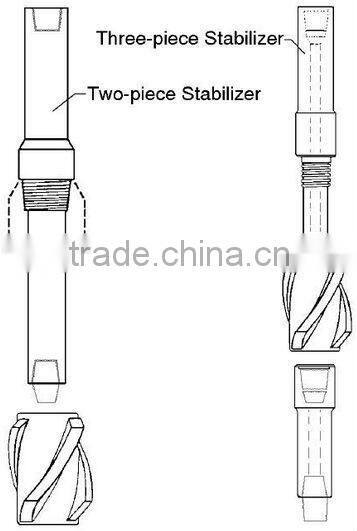

Replaceable sleeve stabilizer consists of mandrel and sleeve. The function is the same as spiral integral blade stabilizer. It can suit to different hole size and increase working life by changing the different size sleeve. The sleeve is threaded on the mandrel, so the sleeve can be fasten to the mandrel tightly and changed easily.
Technical parameter
| Model |
Hole Size mm(inch) |
Fishing Neck OD mm(inch) |
Upper Conn. |
Lower Conn. | ID mm(inch) |
Fishing Neck Length mm(inch) |
OAL mm(inch) |
Type |
| KH149 | 149.2(5 7/8) | 444.5(17 1/2) | NC38 | NC38 | 50.8(2) | 559(22) | 1372(54) | String |
| KH149-NB | 3 1/2REG | Near bit | ||||||
| KH216 | 215.9(8 1/2) | 165.1(6 1/2) | NC50 | NC50 | 71.4(2 13/16) | 686(27) | 1676(66) | String |
| KH216-NB | 4 1/2REG | Near bit | ||||||
| KH311 | 311.1(12 1/4) | 165.1(6 1/2) | 6 5/8REG | 6 5/8REG | 71.4(2 13/16) | 610(24) | 1550(61) | String |
| KH311-NB | Near bit | |||||||
| KH444.5 | 444.5(17 1/2) | 228.6(9) | 7 5/8REG | 7 5/8REG | 76.2(3) | 686(27) | 1702(67) | String |
| KH444.5-NB | Near bit | |||||||
| KH660 | 444.5(17 1/2) | 241.3(9 1/2) | 7 5/8REG | 7 5/8REG | 76.2(3) | 686(27) | 1930(76) | String |
| KH660-NB | Near bit |
