Home > Products > Cmos camera > New Brand Trinocular Microscope Camera Usb

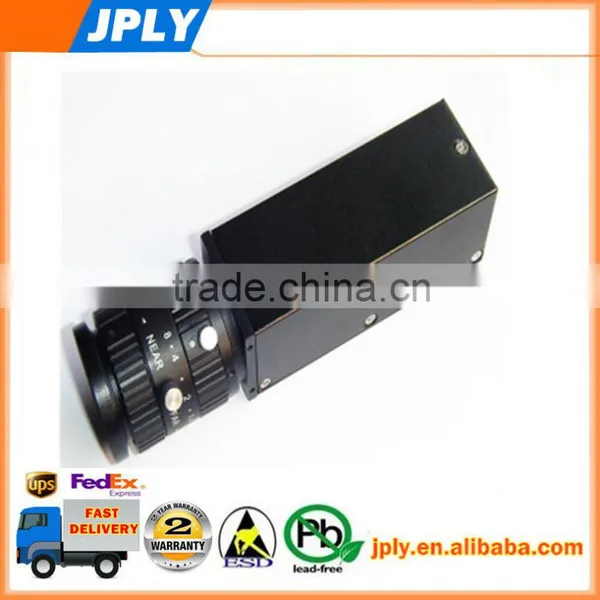

New Brand Trinocular Microscope Camera Usb
- Guangzhou
You May Like
-
Monocular Low Noise Camera Metallurgical Microscopic Device
-
G1TD10C High Pixel 10.0Mp Cmos Nikon Microscope Camera
-
China Manufacture Cmos Camera Megapixel Microscopic Device
-
2016 Hot Sale Video Camera Black and White 5.0megapixel Microscopic Imaging
-
High Spectral Response Figure Cmos 1.3Mp Camera 3D Scanning Camera
-
Stereo Microscope Monocular 5.0Mp Monochrome Medical CMOS Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | JPLY | |
| Model Number | H1TD01M | Theory | Stereo Microscope | |
| Drawtube | Trinocular |
Product Description
SENSOR size | 1/1.8" CMOS Mono |
Sensor Dimension | 5.3μm×5.3μm |
Scan Method | Progressive Scan |
Quantum efficiency | 48%@650nm,30%@750, NIR |
Frame rate | 50fps@1280x1024(8bit) |
Shut | ERS & Global shutter |
Dynamic range | 65dB |
SNR | 41dB |
Spectrum response | 400-1100nm |
Data Interface | USB3.0 5Gbps |
Control Interface | 1xR485,2xI/O,1xStrobe, 1xTrigger |
USB Cable | 3M |
Power | DC 5V±5% |
Current | <500mA |
White balance | Manual white balance,automatic white balance/area white balance |
Exposure Time | 21us~1.3s |
Auto Exposure control | Automatic/manual exposure area |
Lens Mount | CS interface (optional C interface) |
Busy Indicator | Power light,the trigger light |
Working temperature | 0℃-60℃ |
Working humidity | 0-85% |
Software | spectrumsee image analysis software with modular designing,including image previeing, capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc |
Really Imaging:
1.All of our camera come with free software ,and any OEM software you need ,please discuss with us any time !
2.The software function:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc.
3.If you have any camera application ,our professional engineer can offer the best solution to you !
4.If you have any target price ,please let us know ,and we will adjust to you if we can do ,as we did not want to lost the good customer like you !
5.We also guarantee the after-sale service time within 24 hours through email, Skype, WhatsApp, phone, or team-viewer.
1.Why you will choose us?
Answer:The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
2.Can we customize camera?
Answer:of course,if you have any camera application,our professional engineer can offer the best solutions to you.
3.Do you have camera for fluorescence & Bright field / dark field application in microscope?
Answer:yes,our ICX285 Camera is specilized for fluorescence& bright field/dark field application in microscope.
