Home > Instruments & Meters > Optical Lens & Instrument > Microscope > Monocular Low Noise Camera Metallurgical Microscopic Device

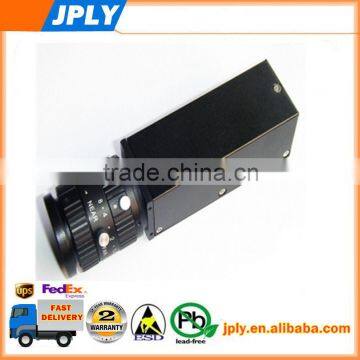

Monocular Low Noise Camera Metallurgical Microscopic Device

Name: Monocular Low Noise Camera Metallurgical Microscopic Device
Brand: JPLY
SKU: 129809495
Availability: InStock

Guangzhou JPLY Electronic Technology Co., Ltd.

Monocular Low Noise Camera Metallurgical Microscopic Device thumbnail-1

Monocular Low Noise Camera Metallurgical Microscopic Device photo-1

US$ 1 - 268 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

JPLY

Model Number:

H1TD01C-C1

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name JPLY

Model Number H1TD01C-C1

Theory Metallurgical Microscope

Drawtube Monocular

Product Description

SENSOR size	1/1.8" CMOS Mono
Sensor Dimension	5.3μm×5.3μm
Scan Method	Progressive Scan
Quantum efficiency	48%@650nm,30%@750, NIR
Frame rate	50fps@1280x1024(8bit)
Shut	ERS & Global shutter
Dynamic range	65dB
SNR	41dB
Spectrum response	400-1100nm
Data Interface	USB3.0 5Gbps
Control Interface	1xR485,2xI/O,1xStrobe, 1xTrigger
USB Cable	3M
Power	DC 5V±5%
Current	<500mA
White balance	Manual white balance,automatic white balance/area white balance
Exposure Time	21us~1.3s
Auto Exposure control	Automatic/manual exposure area
Lens Mount	CS interface (optional C interface)
Busy Indicator	Power light,the trigger light
Working temperature	0℃-60℃
Working humidity	0-85%
Software	spectrumsee image analysis software with modular designing,including image previeing, capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc

Really Imaging:

Packaging & Shipping

Company Information

As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.

The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.

FAQ

1.How about the after sale sevice?
Answer:We also guarantee the after-sale service time within 24 hours through email, Skype, WhatsApp, phone, or team-viewer.

2.Do you have camera for fluorescence & Bright field / dark field application in microscope?

Answer:yes,our ICX285 Camera is specilized for fluorescence& bright field/dark field application in microscope.

3.And also we wanted to know if you have any SDK or something for the camera?

We need to control the camera via an application.

Answer: Our camera come with free software and SDK,the camera include USB3.0 Card and USB3.0 Cable,Software dis.
