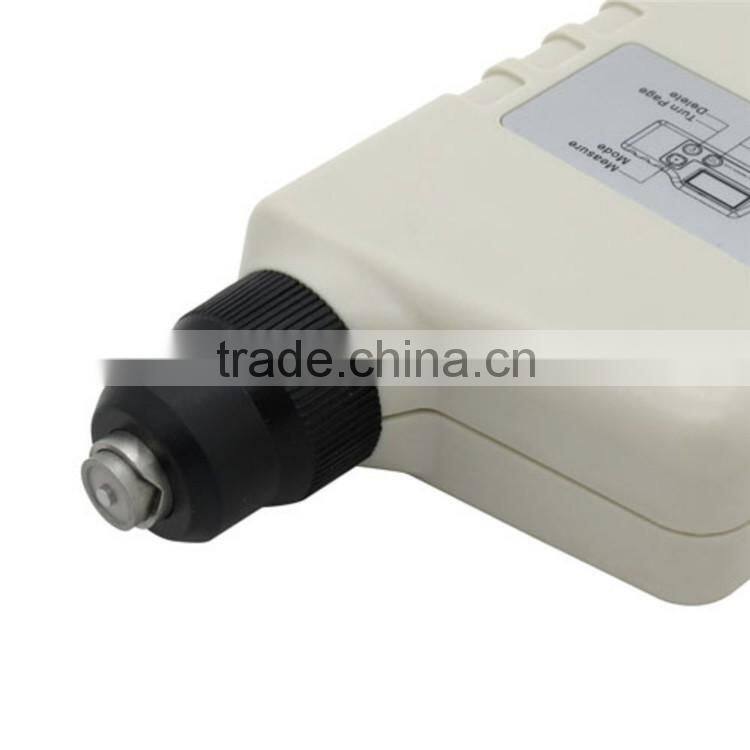

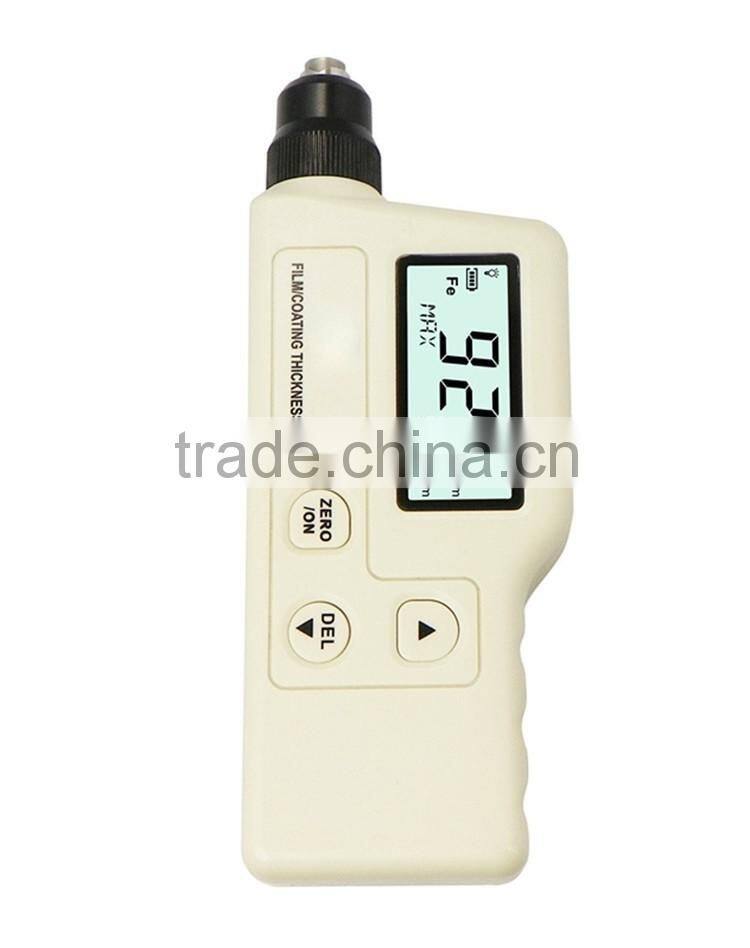

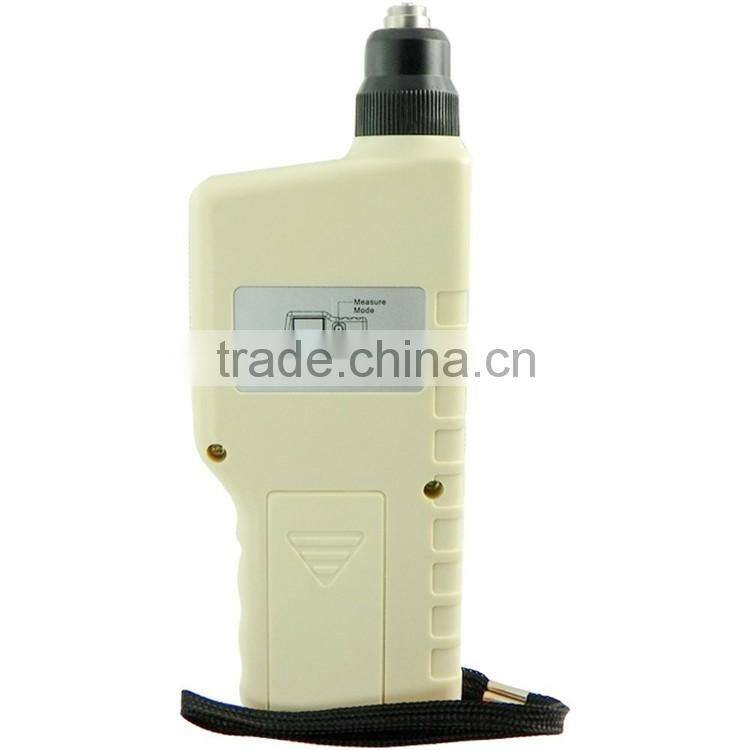

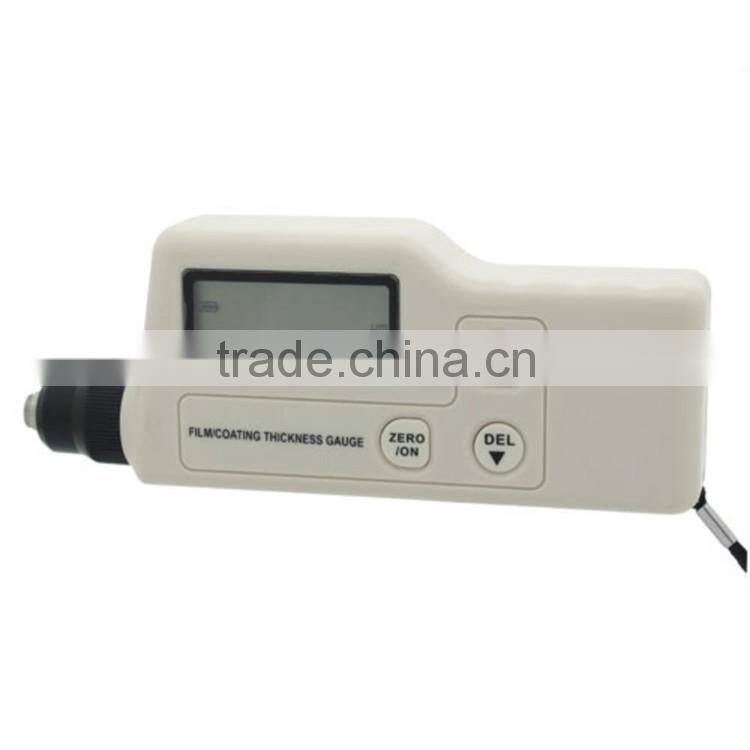

Measurement Value and Status Film / Coating Thickness Gauge Smart Sensor Digital Thickness Meter GM220
The compact design performs fast, precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.
Features:

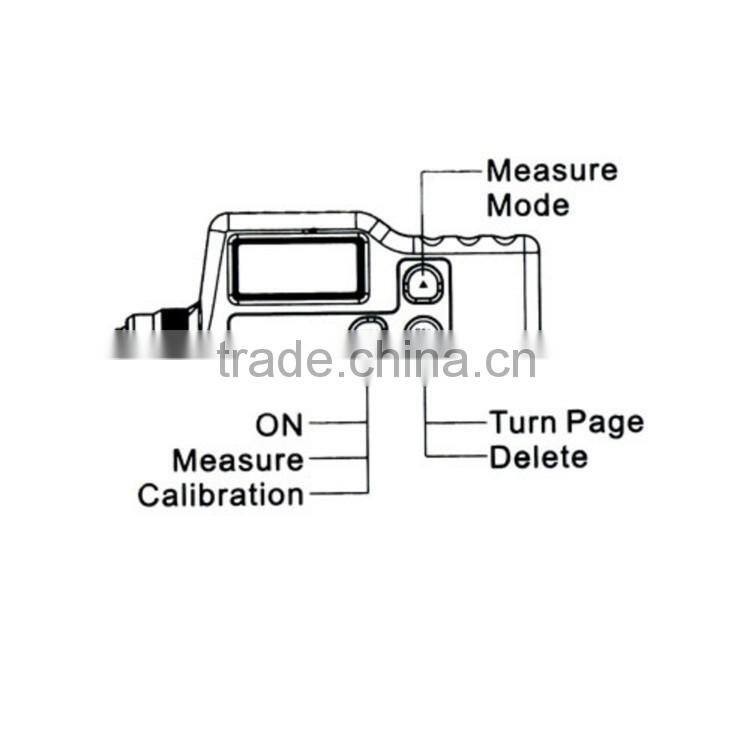

LCD display measurement value and status.
Using Hi- sensibility sensor for precise measurement.
0 point, 2 point and basic, three different calibration
methods to make it easy to process the system quick
calibration.
Measure mode: Single, continually and difference .
Data record, recall and delete function.
Data analysis: Average, Maximum, Minimum, standard
deviation, and measure times.
Beep sounds indication.
Low Battery indication.
Auto power off .
LCD backlight .
Simple, compact structure and portable design.
Specification:
Measurement range:
Range Resolution Accuracy
0~1800µm 0.1um/1µm ±(3%H+1)
Suitable for measure non-magnetic coating on magnetic conductor base material.
The minimum curvature radius.
Convex: 2mm Convex: 2 Concave=11 Concave: 11mm
Minimum Sample diameter: 12mm
Minimum Substrate thickness : 0.5mm
Technical parameter Technical specification
LCD display 3 1/2 display

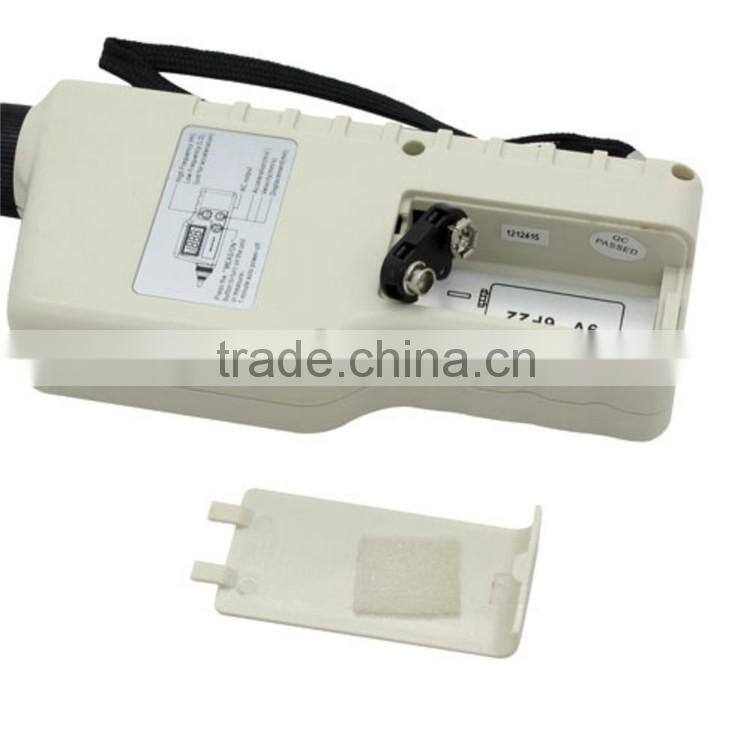

Power supply 9V Alkaline battery
Operation current About 14mA
Battery life Continuously 20 hour .
Auto power off 1 minute
LCD backlight function 7 second.
Operation temperature 0~40℃
Operation humidity. 10~95% RH
Low battery indication 7.0V ± 0.2V
Q:What’s the MOQ ?
Answer: Usually speaking, we do not set MOQ since we want to do business with any business type, including retailer and wholesaler.
Q: How do you deliver the goods ?
Answer: We send by sea or by air including DHL,FedEx,TNT,UPS etc.
Q: What’s you main payment terms ?
Answer: T/T,Paypal ,western union and trade assurance is welcome to us.
Q:Can you do private label ?
Answer: Yes, of course. OEM is absolutely supported; both on package or devices.
Q:What certifications do you have ?
Answer: All electronic products are with CE & RoHS certificates.
Q:How can I get a sample ? What’s the sample fee? Is it refundable ?
Answer: Please confirm with us the model you’ll purchase, and you prepaid the sample fee , after sample tested and qualified, we will refund this sample fee when you place the bulk order. We can send out the sample within 2 working days after receiving payment.
Q:What’s the lead-time ?
Answer: Normally it takes 3-5 working days after receiving payment.
Q:Do you have in stock ?
Answer: Yes, we usually hold some quantities in stock, such as 100pcs or 200pcs are ready to ship immediately.
Q:What about your after-sales services ?
Answer: We have 100% QC before shipment. If there are some unexpected problems happen, we hope to solve these problems with our customers through friendly ways as below:
1, If it’s quality problem, customers must provide photos or videos and other evidences to us for identify. After confirmation, we’ll send the new products to replace the damages in next order.
2, If it’s man-made damaged, customers should take full responsibility.
