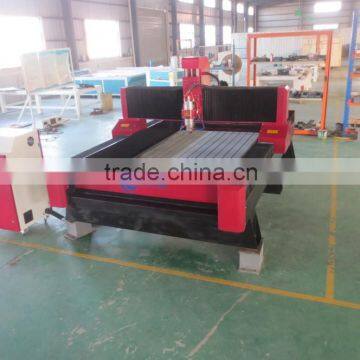

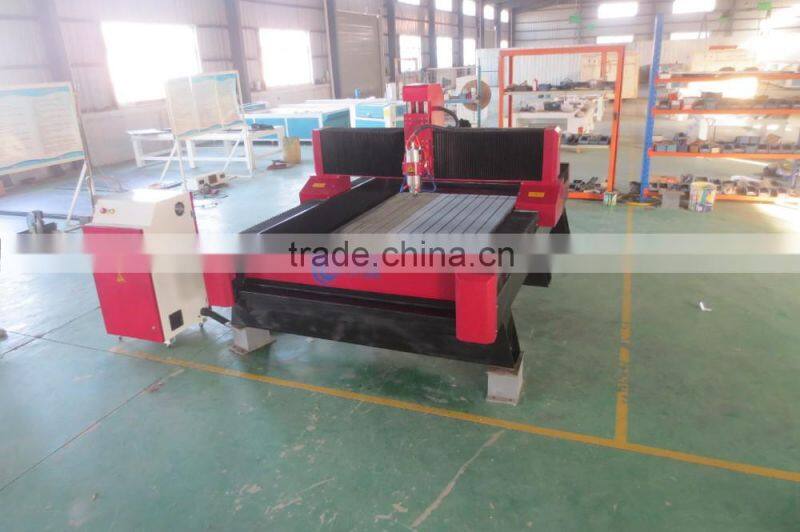

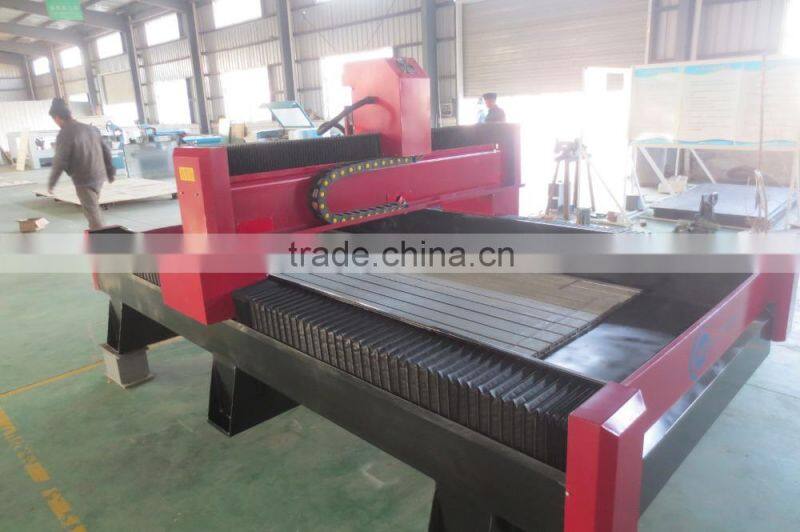

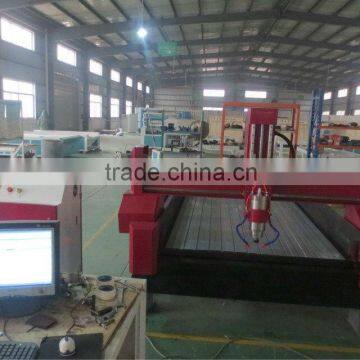

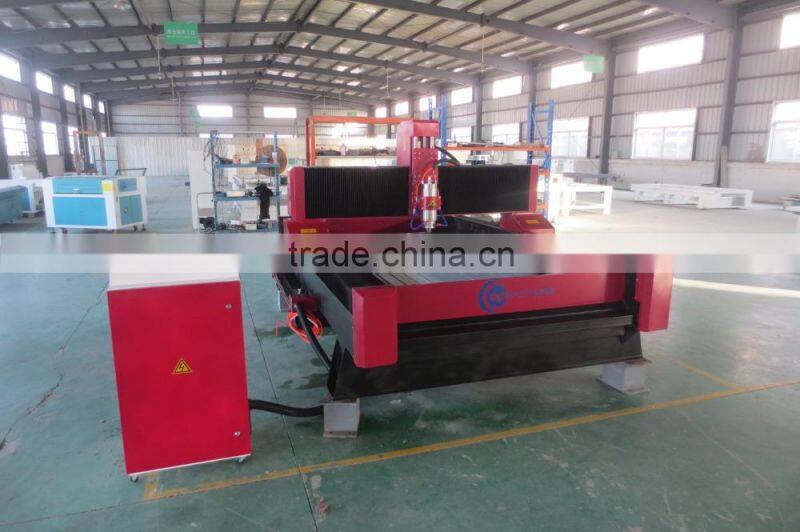

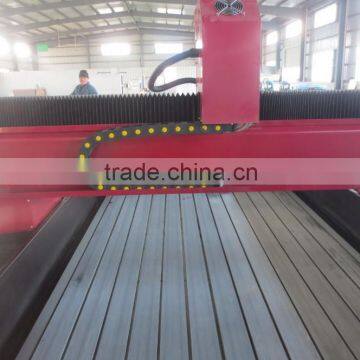

cnc router engraver machine 1325 price desktop used sale with water cooling system
Technical parameters: | |||
Model |
1325 metal/stone cnc router |
||
X,Y,Z working area |
1300*2500*300mm |
||
Rotary axis device |
Length 2000mm, diameter 200mm |
||
Motor |
450A stepper |
||
Driver |
Leadshine |
||
Table size |
1500*3040mm |
||
spindle |
5.5kw water cooled |
||
Inverter |
Yes |
||
Machine table |
Thicken alloy aluminum table |
||
X, Y, Z Travelling Potioning Accuracy |
±0.02/300mm |
||
X, Y, Z Travelling Repositioning Accuracy |
±0.02mm |
||
Frame |
Cast iron |
||
X, Y structure |
Rack and pinion drive, square rail linear bearing 20mm |
||
Z axis structure |
Germany imported ballscrew and square linear rail 20mm |
||
Max Rapid Travel Rate |
32,000mm/min |
||
Max working speed |
20,000mm/min |
||
Working voltage |
AC220/380V, 60Hz/50hz, three phase |
||
Command languages |
G code |
||
Control system |
Ncstudio |
||
Limit stop |
Hard limit stop and electronic limit stop |
||
Package size |
3.1*2.25*1.8m |
||
package |
In one wooden case |
||
Gross weight |
1500kg |
||
Net weight |
1300kg |
||
spare parts for free |
Qty |
Unit |
|
Cutting tools |
6 |
pcs |
|
clamp |
8 |
pcs |
|
spanner |
2 |
pcs |
|
Power Cord |
1 |
pcs |
|
Brush |
1 |
pcs |
|
Sealing Strip |
20 |
meters |
|
Collet |
2 |
pcs |
|
Water cooling pump |
1 |
Unit |
|
