US$ 2,500 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Donglian CNC Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name DONGLIAN
Model Number 1325
Voltage 220V/380V
Power(W) 3.2KW
Dimension(L*W*H) 1300*2500*200mm
Weight 1300kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router



Product Description

1. dust proof to protect the square rails, rack and pinion

2. Speciallly designed for Jewelry / Jade / and stones.

3, With high torque stepper

4. Light control limit switch

5. Intelligent control System with DSP handle

6. Much more powerful, has 800W/ 1500 / 2200W for selection

7. 3 Axis  and 4 axis for selection



Technical parameters:

Model

1325 metal/stone cnc router

X,Y,Z working area

1300*2500*300mm

Rotary axis device

Length 2000mm, diameter 200mm

Motor

450A stepper

Driver

Leadshine

Table size

1500*3040mm

spindle

5.5kw water cooled

Inverter

Yes

Machine table

Thicken alloy aluminum table

X, Y, Z Travelling Potioning Accuracy

±0.02/300mm

X, Y, Z Travelling Repositioning Accuracy

±0.02mm

Frame

Cast iron

X, Y structure

Rack and pinion drive, square rail linear bearing 20mm

Z axis structure

Germany imported ballscrew and square linear rail 20mm

Max Rapid Travel Rate

32,000mm/min

Max working speed

20,000mm/min

Working voltage

AC220/380V, 60Hz/50hz, three phase

Command languages

G code

Control system

Ncstudio

Limit stop

Hard limit stop and electronic limit stop

Package size

3.1*2.25*1.8m

package

In one wooden case

Gross weight

1500kg

Net weight

1300kg

spare parts for free

Qty

Unit

Cutting tools

6

pcs

clamp

8

pcs

spanner

2

pcs

Power Cord

1

pcs

Brush

1

pcs

Sealing Strip

20

meters

Collet

2

pcs

Water cooling pump

1

Unit

 Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router

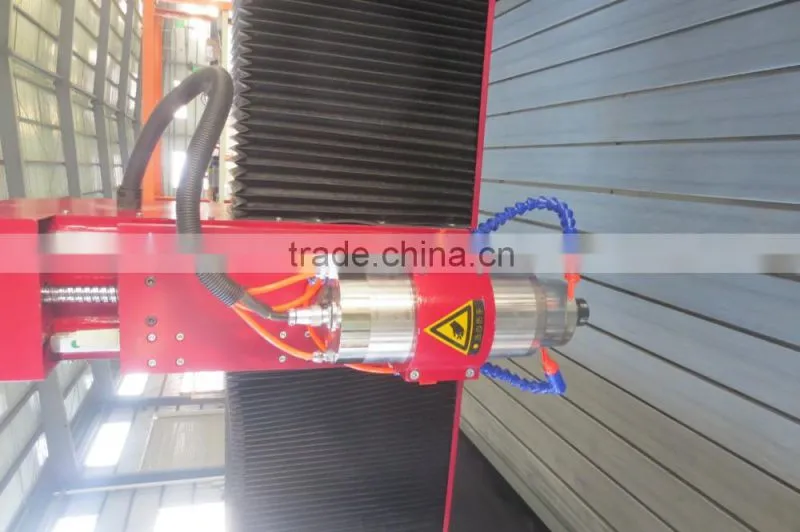

spindle with water cooled system
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
dust cover
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
the rotary attachment is optional. it is used to column material
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
you can choose the machine color, as long as you like
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
water cooled spindle. there sre HQD and HSD brand

Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
the dust cover to protect the rail and ballscrew.

Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
the heavy duty frame is strong stable. it has long lifetime.
Factory supplier heavy duty stone cheap 6090 4 axis cnc router 1325 cnc router
the hand oil system is easier to control the oil and lubricate the machine
