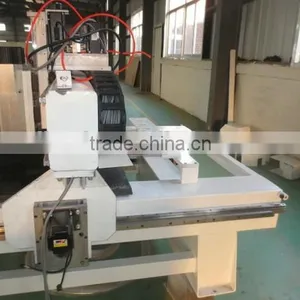

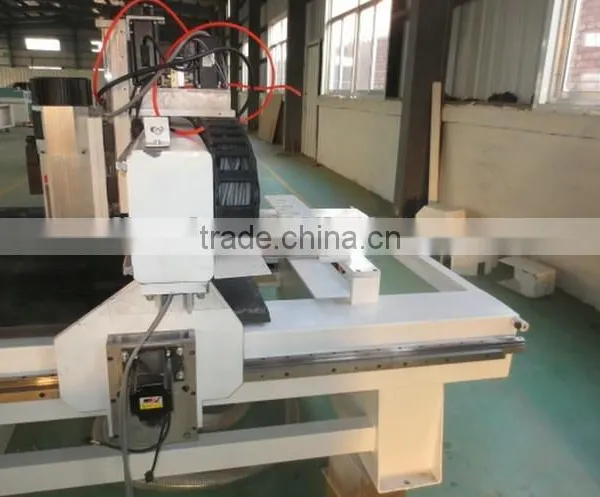

Jinan Donglian ATC Cnc Router 1200x1200 Hd48-4d 3d Wood Carving Machine
US$ 2,500 - 99,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3d Cnc Wood Carving Router Maxicam Used 1325/1530/2030/2040US$ 2,500 - 99,000MOQ: 1 Set -
Furniture Making Equipment 2016 New Style ATC Cnc Router Rotary 4th Axis Desktop Dust Collector forUS$ 2,500 - 99,000MOQ: 1 Set
-
China Good Character Servo Drive Motor Atc Jinan Cnc Router Spindle DesktopUS$ 2,500 - 99,000MOQ: 1 Set
-
1325 Auto Tool Changing Cnc Router Manufacturer Mini Cnc 4030 Router Taiwan Syntec 1218US$ 2,500 - 999,999MOQ: 1 Set
-
ATC Wood Processing Center Machine Cnc Router 60 90 Servo Motor Kit Rich Auto A11 Dsp Controller forUS$ 2,500 - 999,999MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
DONGLIAN
Model Number
1325
Voltage
220V/380V
Power(W)
5.5KW atc
Dimension(L*W*H)
1300*2500*200mm
Weight
2000kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

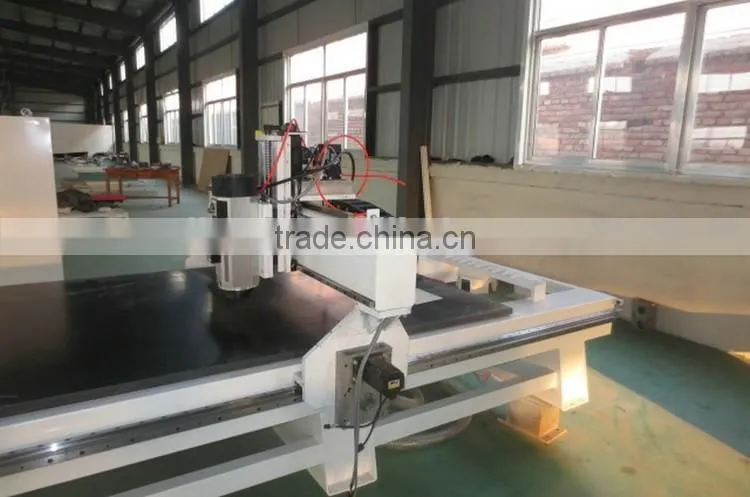

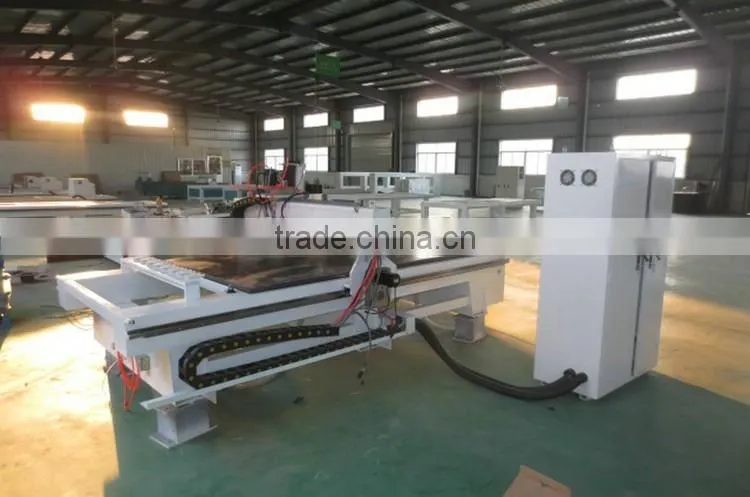

jinan donglian ATC cnc router 1200x1200 hd48-4d 3d wood carving machine
Product Description
| Name | atc cnc router | Optional parts |
| X,Y,Z working area | 1300*2500*300,mm | 1530 2030 2040 |
| Table size | 1500*3040mm | |
| Spindle | Italy HSD9 kw auto tool change air cooling spindle 24000rpm (ES929) | HSD4.5kwATC Spindle |
| Tool magazine | Carrousel type | Linear type |
| Tool holder | 8 pcs ISO30-ER32 tool holders | HSK F63 optional |
| Tool Diameter | Φ 3.175, Φ 4, Φ 6, Φ 12.7mm | |
| Tool change time | 8seconds (Carrousel type tool magazine) | |
| Calibration | Auto | |
| Frequency converter | Japan Omron 11kw VFD | Taiwan Delta 11kw |
| Motor | 4sets JapanYaskawa AC servo motor SGMGV-09ADC61model 850w servo motor | |
| Drive | 4sets Japan Yaskawa SGDV-7R6A01A00200 model 1kw drive | |
| XYZ Travelling Potioning Accuracy | ±0.05/300mm | |
| Max Rapid Travel Rate | 50,000mm/min | |
| Max working speed | 30,000mm/min | |
| Table surface | Bakelite Vacuum Table +Aluminum T-slot Extrusion | |
| Vacuum System | Independed divided part vaccum area with Electronic switch | Manual switch |
| Frame | Steel Square Tubes up to 8mm, T type | |
| X, Y structure | Helical Rack & gear transmission ,Hiwin 30MMrail linear bearing (HGR30) | |
| Z structure | TBI 3210 ballscrew,Hiwin 30MM rail linear bearing (HGR30) | |
| Lubrication | Auto | Manual |
| Control system | Synetc 6MB control system | |
| Command languages | G code | |
| Software compatability | Origin Artcam+Dongles / Type 3 | |
| Switch and emergency stop | SCHNERDER switch, Omron emergency stop from Japan | |
| Working voltage | AC220v/3phase 380v3phase | |
| Net weight | 2100KG | |
| Gross weight | 2500KG | |
| Packing size | 3300*2200*2200mm, | |
| Extra parts | ||
| Vacuum pump | Germany Becker KVT3.140 (140cbm/h) | China dry pump 160cbm/h |
| Mist sprayer | Soft metal working | |
| Dust collector 3KW with 2 bag | 35-40m/second, 3150cbm/h |
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.
We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.
Machine parts
Carrousel/circular type tool magazine
straight line/linear type tool magazine
Syntec operating system with handwheel
Ncstudio system with handwheel NK260
Auto tool height sensor

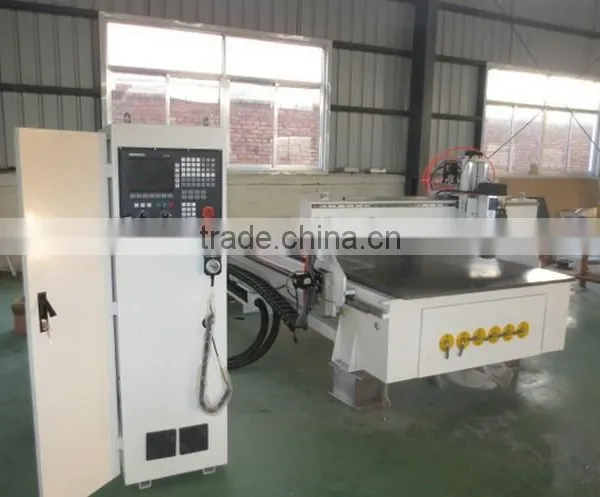

control box
Samples
Packaging & Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are a Manufacturer and enjoying independent R&D team for 10 years.
Q: Do you have after-sale service team?
A: 24 hours online service for you, via tel/email/video or other way you prefer.
Q: Is there any inspection before delivery?
A: Strict quality examine before delivery, qualified industry related standard requirement.
Q: Can you offer customize manufacture?
A: Customize available based on your demands.
