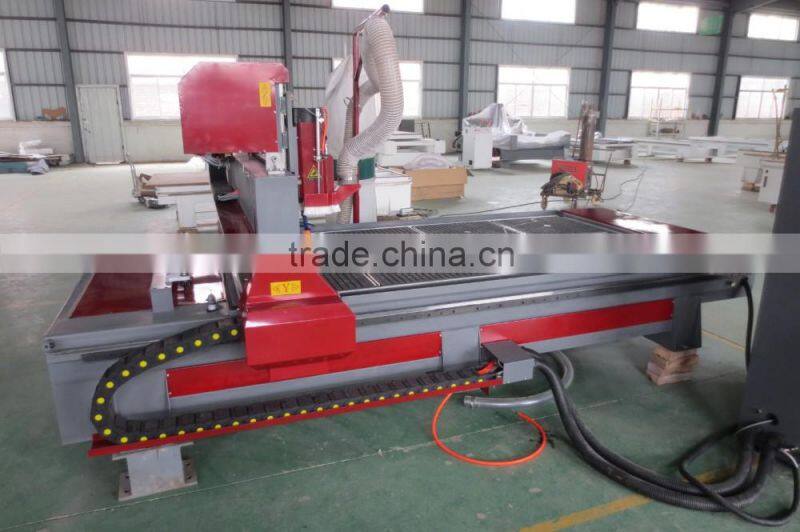

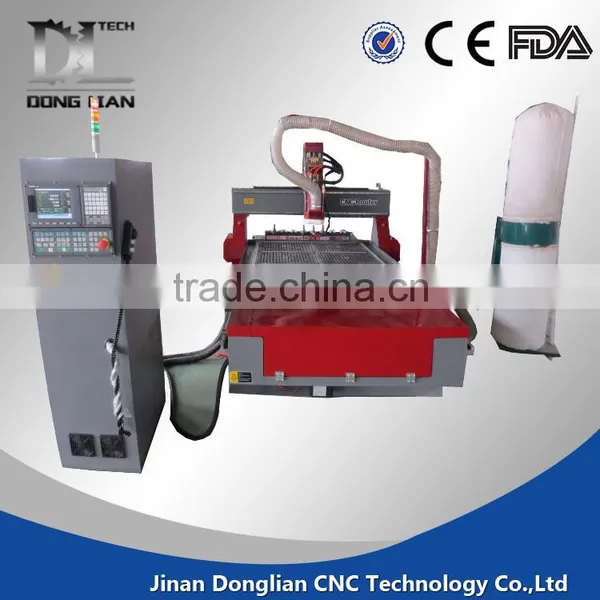

1325/1530/2030 atc cnc router machine price for woodworking machinery
cnc router machine price description:

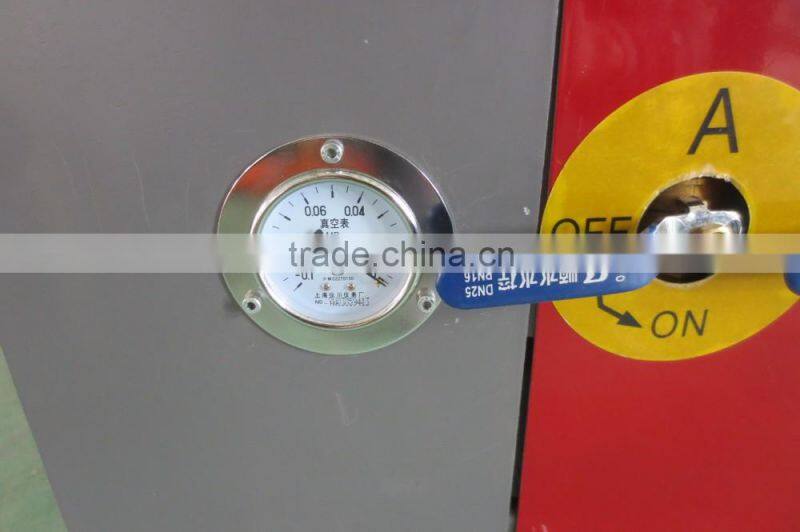

1.DL1637 is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump with high efficiency.
2.Adopt Taiwan Delta servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3.Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high precision and long lifetime.
4.Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure
5.All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew, high precision.

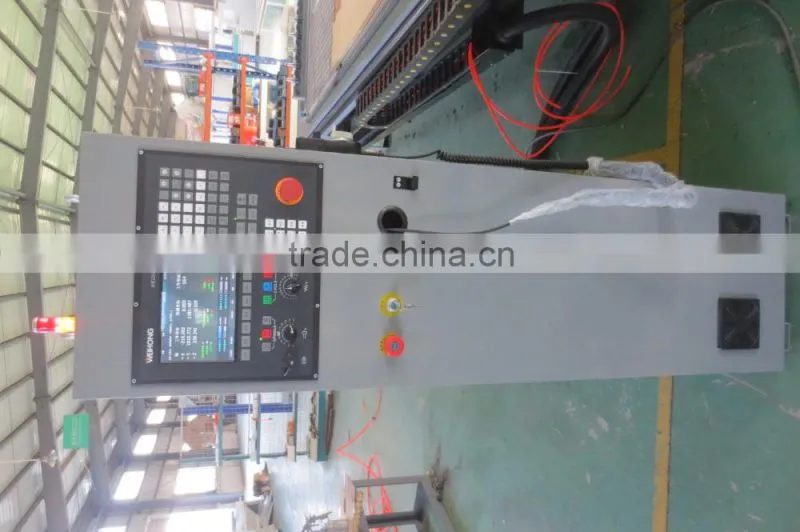

6.Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).

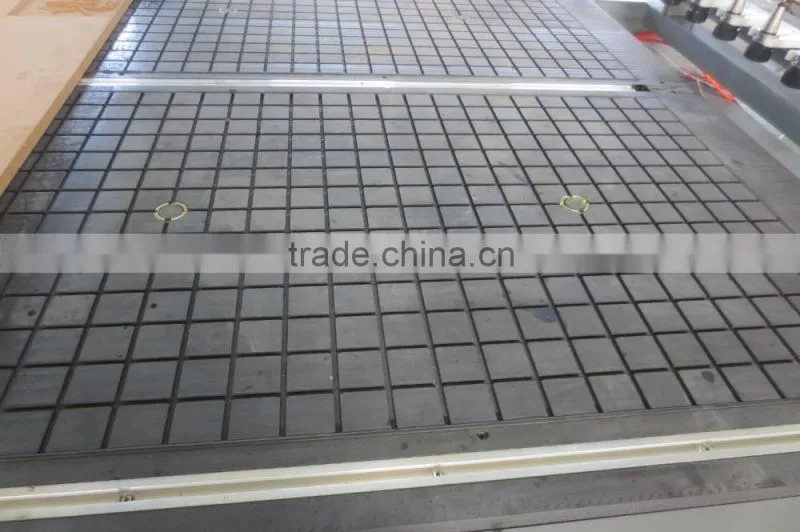

7.6 zones vaccum table, it is a professional wood door making and furniture making machine.
Model |
5’x12’ ATC cnc router |
X,Y,Z working area |
1600*3700*300mm |
Drive motors |
Delta servo motor(imported from Taiwan) |
spindle |
5.5kw water cooled ATC spindle |
Inverter |
Delta (imported from Taiwan) |
Control system |
NCSTUDIO control system |
Machine table |
Table surface-bakelite combined Aluminum T -slot extrusion, vacuum table |
X, Y, Z Travelling Potioning Accuracy |
±0.02/300mm |
X, Y, Z Travelling Repositioning Accuracy |
±0.02mm |
Frame |
Big thickened Steel Square Tubes, thickness up to 8mm |
X, Y structure |

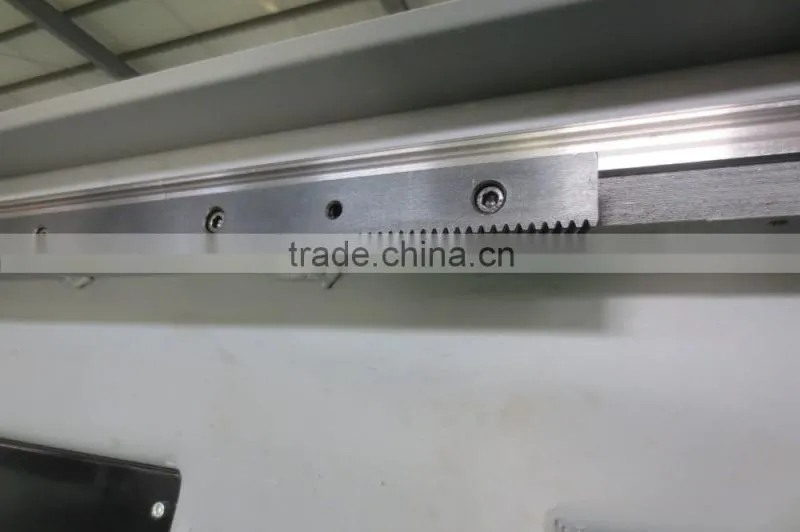

Rack and pinion drive, Hiwin square rail linear bearing 20mm |
Z axis structure |
Germany imported ballscrew and Hiwin square linear rail 20mm |
Max Rapid Travel Rate |
32,000mm/min |
Max working speed |
20,000mm/min |
Working voltage |
AC380V, 60Hz/50hz, 3 phase |
Command languages |
G code |
Limit stop |
Hard limit stop ,electronic limit stop |
Cutter diameter |
3.175-12.7mm |
Automatic tool change time |
8 seconds |
Vacuum pump |
15kw |
Cw5000 water chiller |
Yes |
Dust collector |
Two bags |
Package size |
2.2*4.5*1.9m |
package |
In one wooden case |
Gross weight |
2000kg |
Net weight |
1800kg |

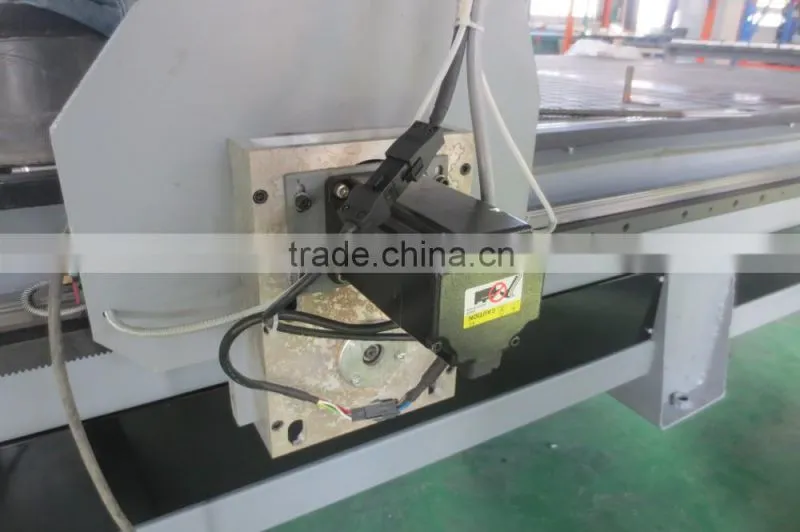

More machine parts:

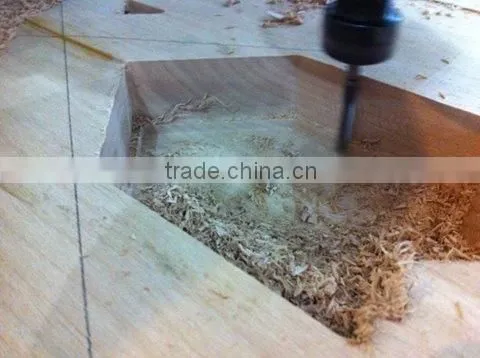

Samples:
Our company and Factory introduction:
we are the MANUFACTURE of cnc router and laser cutting machine for 10 years.Our previous company name is JINAN QICHEN CNC ROUTER CO.,LTD.We only build high quality cnc mahcines and offer the finest service!
