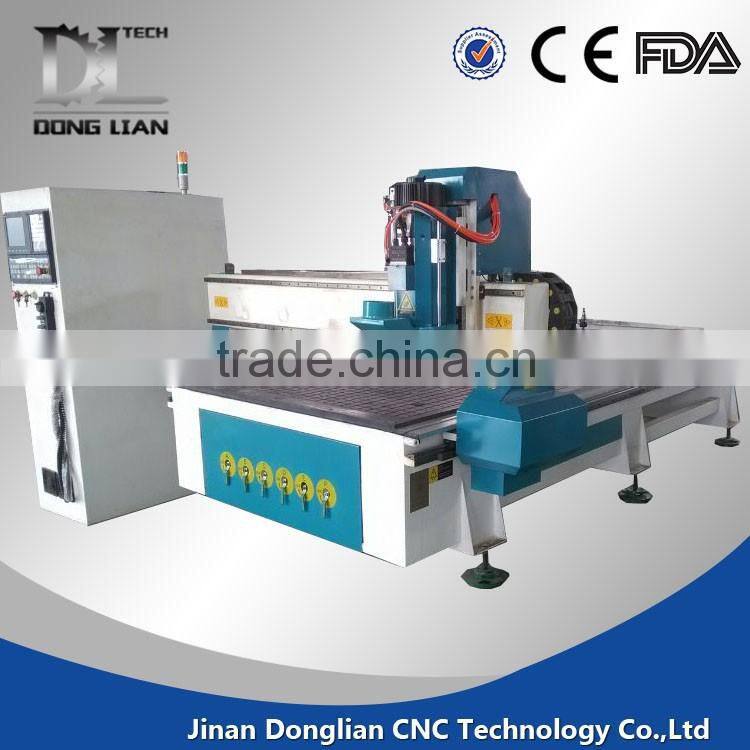

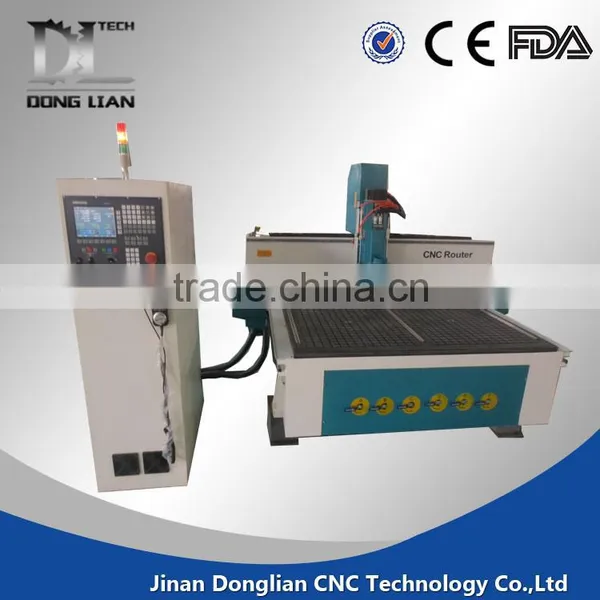

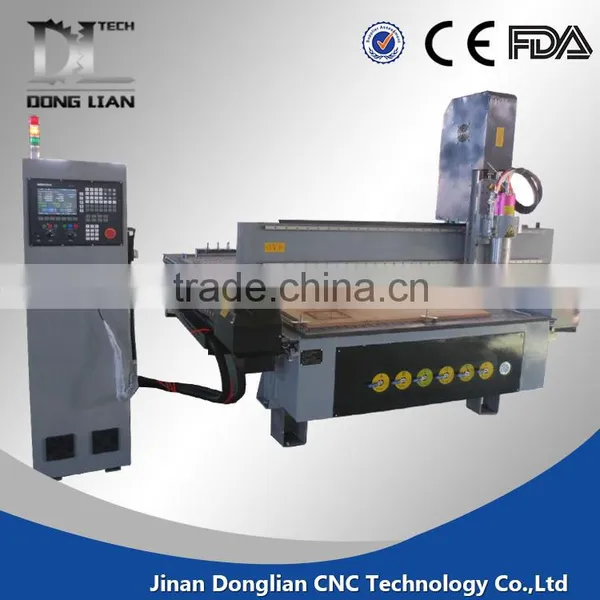

1300*2500*300mm,8 tools atc wood carver/automatic 3d wood carving cnc router
1. Air cooling spindle----9 KW HQD air cooling spindle.Our domestic Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.Compared to HSD,this brand lower price,but also good to use.
2.NK260 control system----Easy operation. Support offline operation,more table.(Optional :Syntec control system)

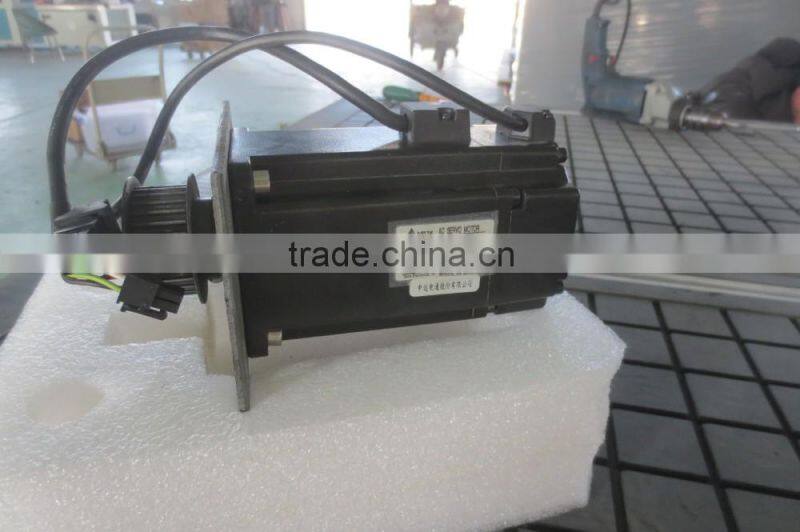

3. Taiwan delta servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.(Optional: Japan Yaskawa servo motor)
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
7. Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
wood router technical parameter:
Model |
5’x12’ ATC cnc router |
X,Y,Z working area |
1600*3700*300mm |
Drive motors |
Delta servo motor(imported from Taiwan) |
spindle |
5.5kw water cooled ATC spindle |
Inverter |
Delta (imported from Taiwan) |
Control system |
NCSTUDIO control system |
Machine table |
Table surface-bakelite combined Aluminum T -slot extrusion, vacuum table |
X, Y, Z Travelling Potioning Accuracy |
±0.02/300mm |
X, Y, Z Travelling Repositioning Accuracy |
±0.02mm |
Frame |
Big thickened Steel Square Tubes, thickness up to 8mm |
X, Y structure |
Rack and pinion drive, Hiwin square rail linear bearing 20mm |
Z axis structure |
Germany imported ballscrew and Hiwin square linear rail 20mm |
Max Rapid Travel Rate |
32,000mm/min |
Max working speed |
20,000mm/min |
Working voltage |
AC380V, 60Hz/50hz, 3 phase |
Command languages |
G code |
Limit stop |
Hard limit stop ,electronic limit stop |
Cutter diameter |
3.175-12.7mm |
Automatic tool change time |
8 seconds |
Vacuum pump |
15kw |
Cw5000 water chiller |
Yes |
Dust collector |
Two bags |
Package size |
2.2*4.5*1.9m |
package |
In one wooden case |
Gross weight |
2000kg |
Net weight |
1800kg |

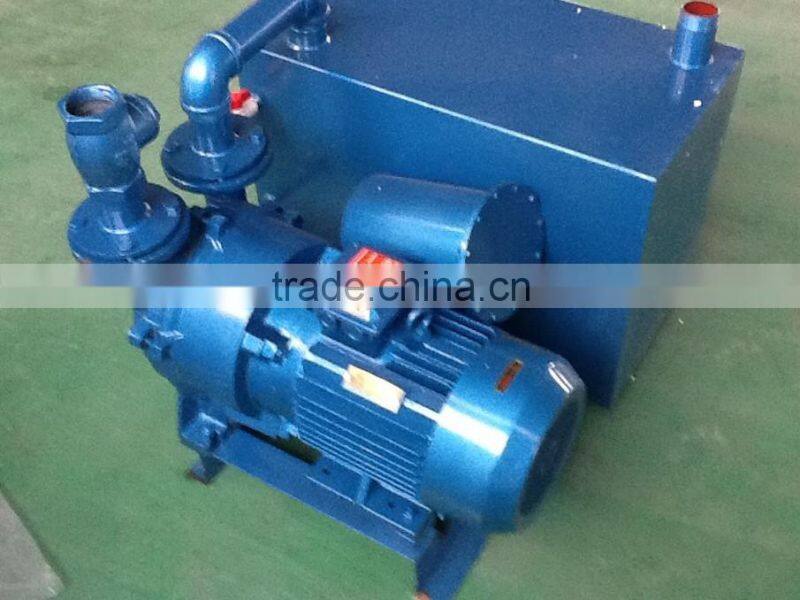

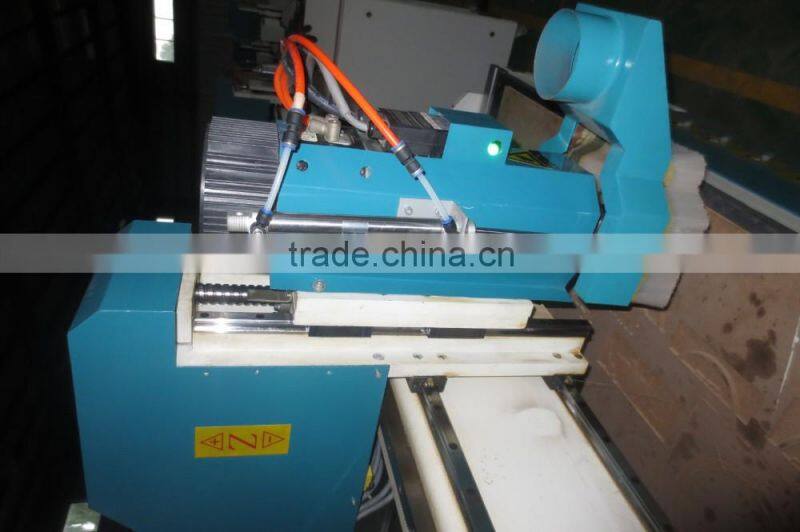

Machine parts:
automatic 3d wood carving cnc router samples:
automatic 3d wood carving cnc router Application:
Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials.
---
Various Wooden products,like Solid Wood Furniture and Solid Wood Door,Decorative Panel,Computer Desk,Office Furniture.
---
Stone serious engraving machine is mainly used in the engraving of the hard materials such as marble,grantie,glass,stone,etc.
---
Other industry: relief, widely used in craft gifts industry, Aluminum industry, Cutting aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile, 3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.
1. 12 Months warranty under normal use and lifelong maintenance we supply
2. 24 hours technical support by phone, email and other online contact.
3. free training on machine operation, daily maintenance and basic program designing etc.in seller’s factory
4. Friendly English operation manual.
5.Overseas training will be provided if necessary.
We are the professional MANUFACTURE for 10 years in china,we insisit on making the high quality machines not the cheapest one,We believe our perfect service will provide you the finest satification!Please donot hesitate to conatct us!
