manufacturer china atc router/ wood door making cnc router cutting for cabinet,furniture
Many types machine are on hot sale!
More details of wood door making cnc router cutting
1.Vacuum worktable in European standard, positioning cylinder can be added which make material positoning easily and fast.
2.Body structure: Cast steel body with aging & tempering, treatment, solid and durable.
3. Linear guide rail: Taiwan linear guide rail with high precision, heavy loading and durable.
4. Driving system:Delta Servo motor for 3 axis, ahigh resolution and position accuracy.

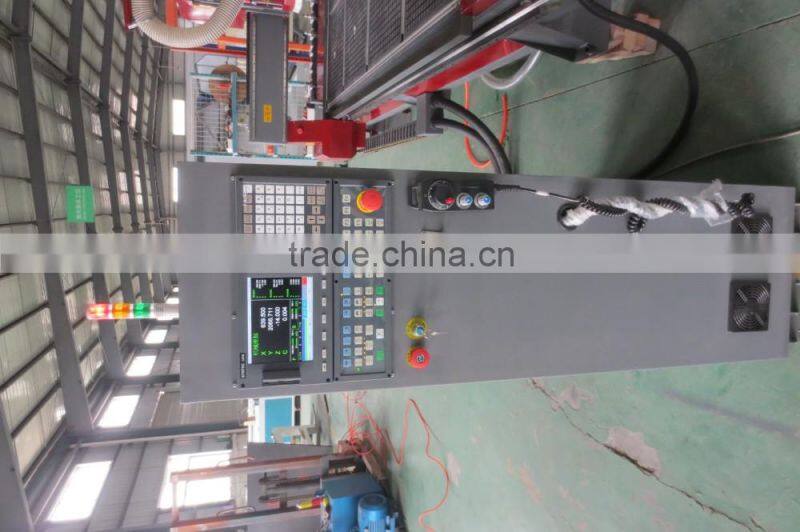

5. Control system: Weihong system with visualization, timely simulation function and good pretreatment .
6.Electric appliances combinations:Electric appliances and motor control protection have reached to Eruopean Union Ip54 standards.
wood door making cnc router cutting technical parameter:
Model |
4’x8’ ATC cnc router |
X,Y,Z working area |
1300*2500*300mm |
Drive motors |
Delta servo motor(imported from Taiwan) |
spindle |
5.5kw water cooled ATC spindle |
Inverter |
Delta (imported from Taiwan) |
Control system |
NCSTUDIO control system |
Machine table |
Table surface-bakelite combined Aluminum T -slot extrusion, vacuum table |
X, Y, Z Travelling Potioning Accuracy |
±0.02/300mm |
X, Y, Z Travelling Repositioning Accuracy |
±0.02mm |
Frame |
Big thickened Steel Square Tubes, thickness up to 8mm |
X, Y structure |
Rack and pinion drive, Hiwin square rail linear bearing 20mm |
Z axis structure |
Germany imported ballscrew and Hiwin square linear rail 20mm |
Max Rapid Travel Rate |
32,000mm/min |
Max working speed |
20,000mm/min |
Working voltage |
AC380V, 60Hz/50hz, 3 phase |
Command languages |
G code |
Limit stop |
Hard limit stop ,electronic limit stop |
Cutter diameter |
3.175-12.7mm |
Automatic tool change time |
8 seconds |
Vacuum pump |
15kw |
Cw5000 water chiller |
Yes |
Dust collector |
Two bags |
Package size |
2.2*4.5*1.9m |
package |
In one wooden case |
Gross weight |
2000kg |
Net weight |
1800kg |
1. 12 Months warranty under normal use and lifelong maintenance we supply
2. 24 hours technical support by phone, email and other online contact.
3. free training on machine operation, daily maintenance and basic program designing etc.in seller’s factory
4. Friendly English operation manual.
5.Overseas training will be provided if necessary.
We are the professional MANUFACTURE for 10 years in china,we insisit on making the high quality machines not the cheapest one,We believe our perfect service will provide you the finest satification!Please donot hesitate to conatct us!
