Help CenterBio-diesel Seperator, Biodiesel Centrifuge
Related Products
Specifications
This machine is widely used in degumming, de-soap, and water washing, glycerin separation of bio-diesel oil.Features of products

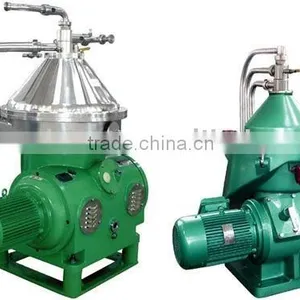

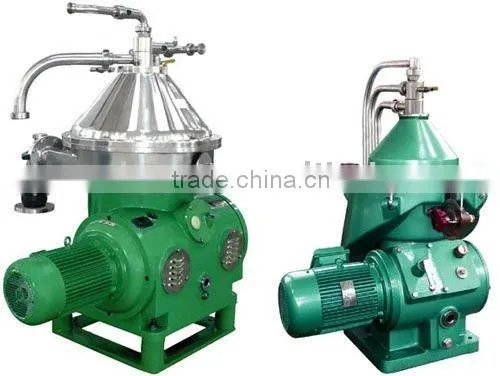

Bio-diesel oil is green reborn energy, being excellent replacement for petroleum diesel oil and fuel. DHSY series bio-diesel oil disc separator is automatic discharging type which special for bio-diesel oil. It has the traits of high rotation speed, stable operation, complete sealing at inlet and outlet system, low noise, excellent separation effect, etc. Its centripetal pump has the traits of stable output pressure, large regulation range, easy to operate. Also this separator is specially designed automatic control cabinet with safety protection device, and fitted with advanced automatic vibration detector that can inspect the vibrating number of separator at any time. Operator can adjust the parameters of separator on the display screen directly, which makes the separation and discharging reach to the best effect.
This machine is widely used in degumming, de-soap, and water washing, glycerin separation of bio-diesel oil.
DHS series pigment separators also in pigment extraction and similar materials separation.
Main technological parameters
Model |
Capacity (L/h) |
Inlet Pressure (MPa) |
Outlet Pressure (MPa) |
Power (Kw) |
Weight (Kg) |
Dimension (mm) |
DBSY204 |
700-2000 |
0.05 |
0.1-0.25 |
4 |
408 |
810X850X1350 |
DBSY306 |
1200-2500 |
0.05 |
0.1-0.25 |
7.5 |
1280 |
1500X1150X1500 |
DBSY470 |
4000-7000 |
0.05 |
0.1-0.3 |
15 |
1880 |
1800X1200X1800 |
DBSY550 |
6000-15000 |
0.05 |
0.1-0.3 |
22 |
2200 |
1850X1550X2050 |
DBSY700 |
15000-30000 |
0.1 |
0.2 |
30 |
3300 |
2100X1650X2300 |
DHKY470 |
10000 |
0.05 |
0.2 |
15 |
1880 |
1800X1200X1750 |
