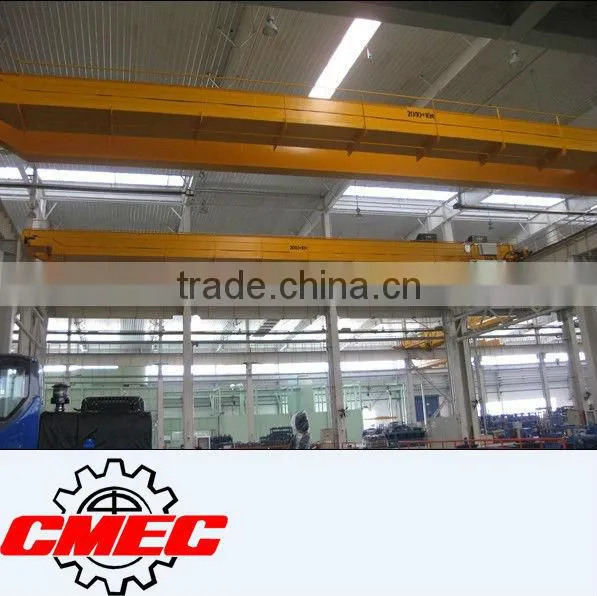

factory overhead craneDIN/FEM standard
optimized design, smaller wheel load, space saving
stepless control
Single welding
overhead crane introduction:
Feature Description:
|
in gereral Optimazed designing, DIN/FEM standard, smaller wheel load, space saving Max. Safe working load 50T Flexible solution for all lifting needs Excellent driving properties, stepless control, smoothly moving
|
|
|
Mechanical feature
double welding box girder, DIN/FEM standard deflection Material Fe37 or Fe52 Whole length CNC cutting for complete web plate, high deflection accuracy High quality autometic welding and NDT inspection Shot-blasting Sa2.5 for complete girder after welding, stress release |
|
|
Compacted gearmotor driving, stepless control, hardern gear, safety disck brake
High proection class IP54, F class, 40% ED |
|
|
smooth and Transitional
10.9 class High tension bolts mouting between girder and legs, life time safety connection
Shot-blasting Sa2.5 for complete girder after welding, stress release
|
|
|
Electrification and outfitting
Conduct power supply ,
Phase control guard opens the main contactor in case of phase failure
The flate cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists.
clean and smooth flat cable power supply system Cables are coded either with numbers, colours or tags for easy identification.
|
|
|
All hoist and crane movements are independent and can be run simultaneously. The control panels are finished to withstand corrosion, IP54
The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.
The multi-wire type fixed cables with plastic insulation are intended for crane usage.
|
|
|
Lifting system Safe working load 1- 80t,
DIN/FEM/ISO standard, lightweight construction ,
Lower hoist frame, building cost saving,
Modern design of motor, fan, gear, drum, brake combined with construction of the hoist ,
Ambient temperature -10°C – +40°C |
|
|
Safety protection Gearmotor locker rope to protect drop rain cover for outside hoist, driving units, electrical cubicle Warning indicator: flashing lights and warning sound Wireless infra-detector for anti-collusion |
|
Control Mode
Pendant Easy control, no additional driver necessary Two steps push button, with emergency stop Protection class IP65 Life time 500,000 |
|
| Remote Control Easy control, no additional driver, remote access Flexible frequency selection, total reliable Two steps push button or joy stick station with emergency stop IP65 Protection class IP65 Life time 500,000 |
|
|
Cabin Control Sky cabin; easy operation; Prefessional chairs, adjustable and fully turning Round window, big view
Two steps push button or joy stick station with emergency stop
|
|
Specifications:
|

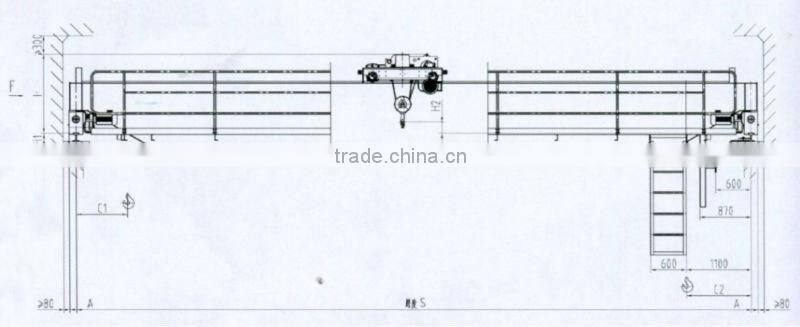

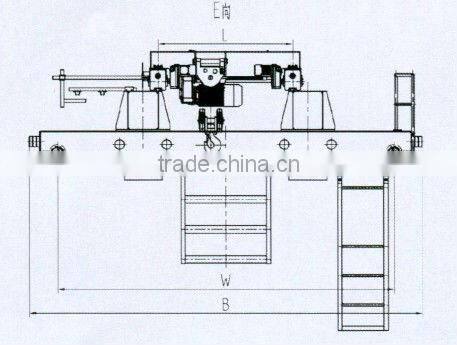

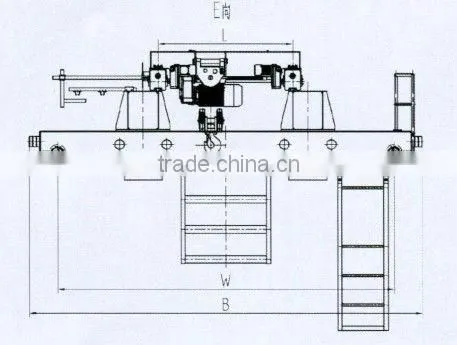

S-----span; H-----Crane top to crane's highest point, H2------hook highest point to crane's highest point, C1-----Min. distance from hook to opposite- control-panels side crane rail C2----- Min. distance from hook to control-panels side crane rail A------Distance from crane rail to crane legs L-------Trollley gauge W-----Wheel distance of crane legs B-----Crane legs distance (including buffer) |
|
|
|
| span | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
| lifting capacity | t | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| total weight | kg | 5322 | 6663 | 8193 | 11117 | 12775 | 14855 | 16523 | 20540 |
| trolley weight | kg | 921 | 921 | 921 | 921 | 921 | 921 | 921 | 921 |
| max. wheel load | kn | 65 | 68 | 72 | 79 | 84 | 89 | 96 | 104 |
| travel rail | P38 | P38 | P38 | P38 | P38 | P38 | P38 | P38 | |
| lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| trolley speed | m/min | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
| crane speed | m/min | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
| lifting height | m | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 |
| total motor power | KW | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 |
| working duty | A5 | A5 | A5 | A5 | A5 | A5 | A5 | A5 | |
| H | mm | 1429 | 1181 | 1281 | 1223 | 1293 | 1293 | 1383 | 1433 |
| H2 | mm | -240 | -340 | -282 | -352 | -352 | -442 | -492 | -492 |
| C1 | mm | 852 | 852 | 852 | 852 | 852 | 852 | 852 | 852 |
| C2 | mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| A | mm | 115 | 115 | 115 | 140 | 140 | 140 | 140 | 140 |
| L | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| W | mm | 3500 | 3600 | 3600 | 3700 | 3700 | 3700 | 4000 | 4000 |
| B | mm | 4174 | 4274 | 4274 | 4374 | 4374 | 4374 | 4674 | 4674 |
