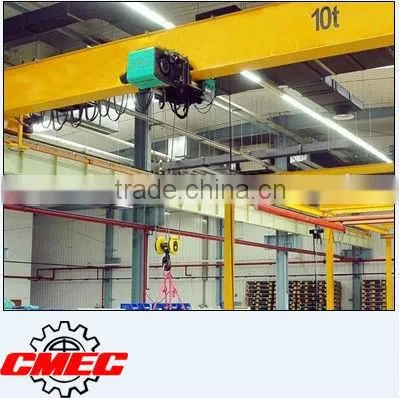

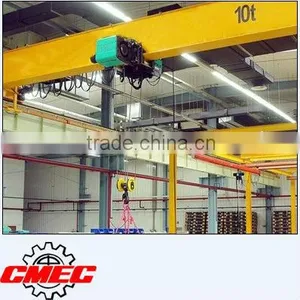

10 ton european type single girder overhead crane
- 1000 Set / Sets per Month
- Shanghai
- T/T
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Condition: | New | Application: | Lifting materials in workshop, storage; the peg-in-hole assembly | Rated Loading Capacity: | 10t |
Max. Lifting Load: | 12.5t | Max. Lifting Height: | 12m | Span: | 7.5-25.5m |
Place of Origin: | Henan, China | Brand Name: | CMEC | Model Number: | HD10T |
Certification: | ISO;GOST | Warranty: | 12 month | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
10 ton single girder overhead craneDIN/FEM standard
Optimazed designing, smaller wheel load, space saving;
stepless control
10 ton single girder overhead crane brief introduction
Feature Description:
in gereral Optimazed designing, DIN/FEM standard, smaller wheel load, space saving Max. Safe working load 12.5t Flexible solution for all lifting needs Excellent driving properties, stepless control, smoothly moving
|
Mechanical feature
Single welding box girder, DIN/FEM standard deflection Material Fe37 or Fe52 Whole length CNC cutting for complete web plate, high deflection accuracy High quality autometic welding and NDT inspection Shot-blasting Sa2.5 for complete girder after welding, stress release |
Compacted gearmotor driving, stepless control, hardern gear, safety disck brake
High proection class IP54, F class, 40% ED |
smooth and Transitional
10.9 class High tension bolts mouting between girder and legs, life time safety connection
|
Electrification and outfitting
Conduct power supply ,
Phase control guard opens the main contactor in case of phase failure
clean and smooth flat cable power supply system
Cables are coded either with numbers, colours or tags for easy identification.
| |
All hoist and crane movements are independent and can be run simultaneously. The control panels are finished to withstand corrosion, IP54
The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.
The multi-wire type fixed cables with plastic insulation are intended for crane usage.
|
Lifting system Safe working load 1- 80t,
DIN/FEM/ISO standard, lightweight construction ,
Lower hoist frame, building cost saving,
Modern design of motor, fan, gear, drum, brake combined with construction of the hoist ,
Ambient temperature -10°C – +40°C |
Safety protection Gearmotor locker rope to protect drop rain cover for outside hoist, driving units, electrical cubicle Warning indicator: flashing lights and warning sound Wireless infra-detector for anti-collusion |
Control Mode
Pendant Easy control, no additional driver necessary Two steps push button, with emergency stop Protection class IP65 Life time 500,000 | |
Remote Control Easy control, no additional driver, remote access Flexible frequency selection, total reliable Two steps push button or joy stick station with emergency stop IP65 Protection class IP65 Life time 500,000 |
Specifications:

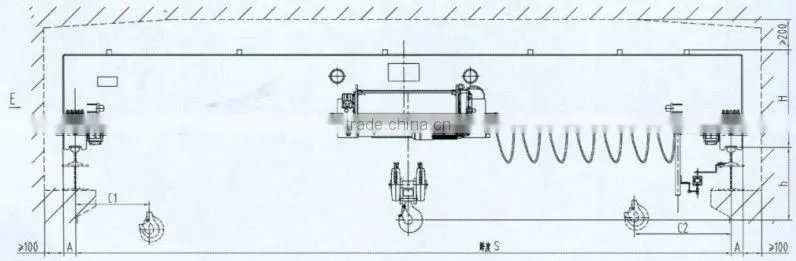

S-----span; H-----Crane top to crane's highest point, h------hook highest point to crane's highest point, C1-----Min. distance from hook to opposite- control-panels side crane rail C2----- Min. distance from hook to control-panels side crane rail A------Distance from crane rail to crane legs W-----Wheel distance of crane legs B-----Crane legs distance (including buffer) | |
span | m | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
capacity | t | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
total weight | kg | 2696 | 3200 | 4091 | 5307 | 6466 | 7694 | 9309 |
trolley weight | kg | 640 | 640 | 640 | 640 | 640 | 640 | 640 |
max. wheel load | kn | 51.58 | 54.44 | 57.7 | 60.83 | 64 | 67.26 | 71.36 |
travel rail | P38 | P38 | P38 | P38 | P38 | P38 | P43 | |
lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
lifting height | m | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 |
total motor power | kw | 12.1 | 12.1 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 |
crane speed | m/min | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
trolley speed | m/min | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
working duty | A3-A5 | A3-A5 | A3-A5 | A3-A5 | A3-A5 | A3-A5 | A3-A5 | |
H | mm | 908 | 908 | 1008 | 1208 | 1308 | 1358 | 1482 |
h | mm | 465 | 465 | 465 | 365 | 365 | 365 | 345 |
C1 | mm | 675 | 675 | 675 | 675 | 675 | 675 | 695 |
C2 | mm | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
A | mm | 100 | 100 | 100 | 100 | 100 | 100 | 120 |
W | mm | 2000 | 2000 | 2000 | 2500 | 3000 | 3000 | 3500 |
B | mm | 2674 | 2674 | 2674 | 3174 | 3674 | 3674 | 4174 |
