Gramscal(Suzhou) Co., Ltd.: Suzhou, Jiangsu, China; Main products: Electronic Indicator, Electronic table scale, Floor scale, Bench scale, Pallet scale

Home > Products > Floor Scales > XTiger 1212-1.5 Painted Steel Structure Industrial Precise Floor Scale With K3iP Indicator

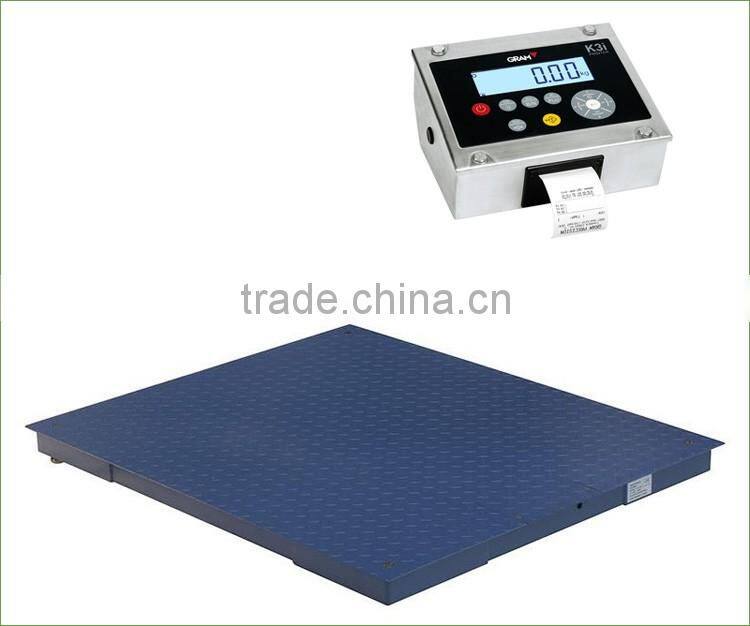

XTiger 1212-1.5 Painted Steel Structure Industrial Precise Floor Scale With K3iP Indicator

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	GRAM
Model Number	XTiger 1212-1.5	Type	Floor Scale
Power Supply	100-240V	Display Type	LCD+Back Light
Rated Load	1500kg	Accuracy	500g

Product Description

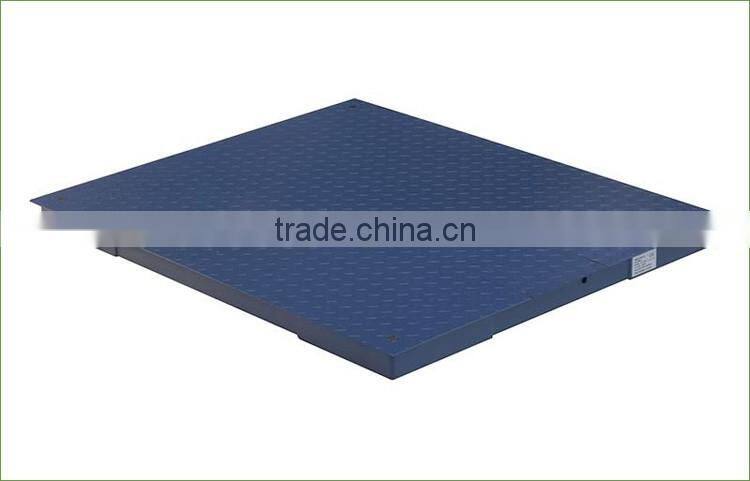

XTiger 1212-1.5 Painted Steel Structure Industrial Precise Floor Scale with K3iP indicator

Product Description

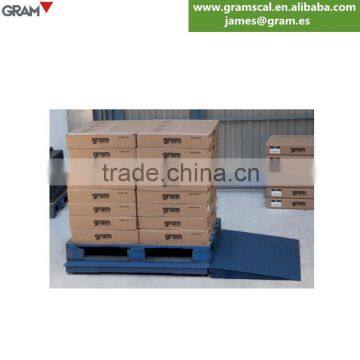

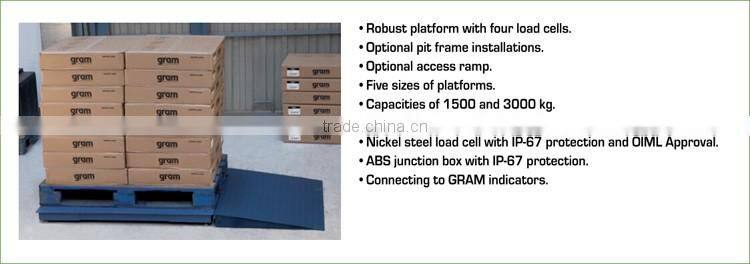

• Robust platform with four load cells.

• Optional pit frame installations.

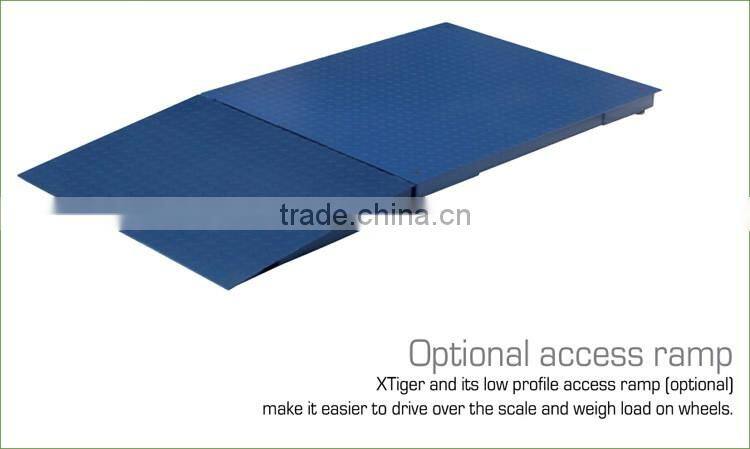

• Optional access ramp.
• Five sizes of platforms.
• Capacities of 1500 and 3000 kg.
• Painted steel monoblock structure.
• Nickel steel load cell with IP-67 protection and OIML Approval.
• ABS junction box with IP-67 protection.
• Connecting to GRAM indicators.

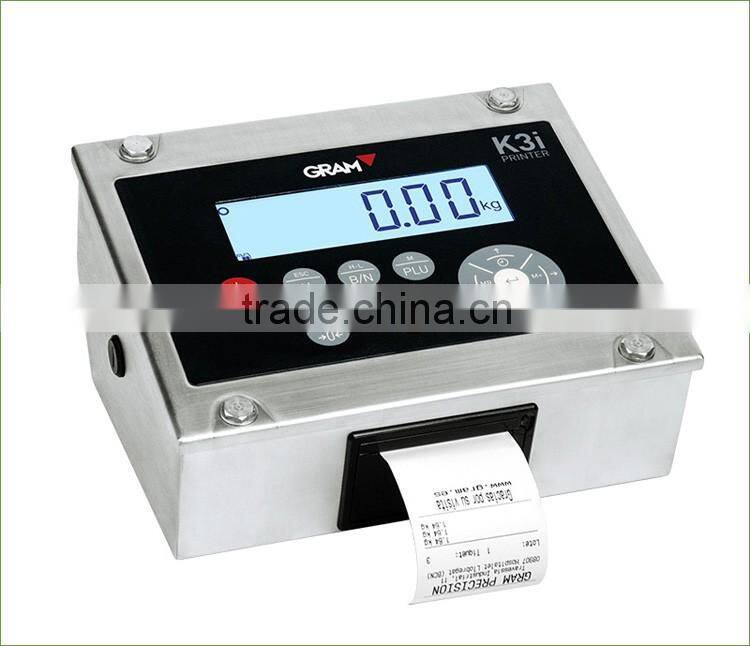

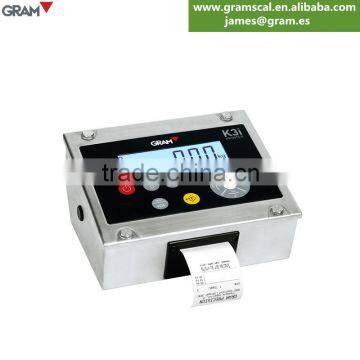

Features for Indicator K3iP

• LCD display with automatic bright backlighting.

•With printing function
• High/ok/low weight checking function, with visual and sound indicator.
• Classifying by weight.
• Memory of 20 digital tares.
• Last weighing memorization.
• Memory of 100 items for the parts counting function.
• PC or printer connection or remote display (optional).
• Programmable auto-off.
• Automatic tare.

Technical Features

Model	XTiger 1210-1.5	XTiger 1210-3	XTiger 1212-1.5	XTiger 1212-3	XTiger 1512-1.5	XTiger 1512-3	XTiger 1515-1.5	XTiger 1515-3
Plate thickness	3/4mm
Capacity	1500 kg	3000 kg	1500 kg	3000 kg	1500 kg	3000 kg	1500 kg	3000 kg
Readability	500 g	1000 g	500 g	1000 g	500 g	1000 g	500 g	1000 g
Structure	Painted steel
Load cells	H8C Rebel OIML C3 Class
Junction box	ABS IP--67

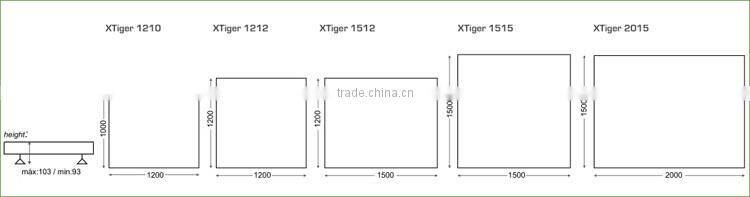

Pan size (mm)	1200 x 1000		1200 x 1200		1500 x 1200		1500 x 1500
Minimal height (mm)	93
Maximal height (mm)	103
Total net weight (kg)	56		64		77		95
Options
Indicator K3i; Indicator K3i Printer; Indicator SC2; Indicator K2; Indicator K2E; Indicator K2N; Indicator K2P;
Accessaries
RM-10 Access Ramp for GL and 1210 model; RM-12 Access Ramp for 1212 and 1512 model; RM-15 Access Ramp for 1515 and 2015 model; BM-10 Bumper (1m) for GL and 1210 model; BM-12 Bumper (1,2m) for 1210, 1212 and 1512 models; BM-15 Bumper (1,5m) for 1512, 1515 and 2015 models; MP-1210 Pit frame & Anchor plates; MP-1212 Pit frame & Anchor plates; MP-1512 Pit frame & Anchor plates; MP-1515 Pit frame & Anchor plates; MC-1210 One-piece pit frame; MC-1212 One-piece pit frame; MC-1512 One-piece pit frame; MC-1515 One-piece pit frame; CS-1 Painted steel floor stand for indicator; Stainless steel wall support for indicator (K3, K3i, K3i Printer)
