Alibaba China Touch Screen 10" 12"15"17"19" Inch HD VGA USB AV RCA LCD Computer Monitor
Product Introduction
The LCD Monitor is a standard output display device and an important part in CCTV system. The images coming from cameras are displayed on the monitor. As an indispensable terminal device, the monitor is the “eyes” of CCTV system, and it also plays a key role in the later investigation.
The size of the monitor ranges from 15", 17", 19", 22", 26", 32", 42", to other common sizes in the current markets. The aspect ratio of monitors sized from 15” to 17” mostly is 4:3 or 5:4, while which of 19” or larger monitors mostly is 16:9. It is predicted that 16:9 will become the dominant aspect ratio with the development of networked video monitoring.
Createvalue LCD monitor series uses multiple protections to ensure the durable and reliable usage in complex electromagnetic environments. The built-in HD player and audio player can play HD video, images and music without using any computer. The concise and elegant designs make it the ideal choice of display used in the industrial control, vehicle, CCTVs and other fields.
Product Specification – 10 inch LCD Monitor
10.1 inch LCD Monitor - ML101P | ||
Panel Spec.: | ||
Size |
10.1'' (Or 7" 8" 10.4" 12" 15" 17" 18.5" 19" 21.5" 22" 24" 42" 46" 55" 65" 70" 84") |
|
Resolution |
1280 * 800 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
85°/85°/85°/85° |
|
Brightness |
350cd/m2 |
|
Color |
16.7M |
|
Response Time |
8 ms |
|
Power Consumption |
DC 12V/24V, DC 12-24 Volt |
|
Installations |
Wall Mounted, Embedded, Flush Mount, Headrest, Flip Down, Roof Mount, Rack (can be custom made) |
|
Accessories |
Remote Control, Manual, Installation brackets,etc. |
|
Display Size |
217 * 135.6 mm |
|
|
Machine Dimensions (L*W*H) & Net Weight |
264* 162 * 35 mm , 2.5 Kg |
|
|
Packing Dimensions (L*W*H) & Weight |
300 * 200 * 275 mm, 3 Kg |
|
|
Qty per carton / Carton Dimenisons |
5 pieces / 520 * 380 * 310 mm |
|
Input & Output: (can be custom made to order) | ||
CVBS Input / Output |
CVBS(RCA)*2 |
|
PC Input |
VGA*1 |
|
HD Signal Input |
HD*1 |
|
Audio Input / Output |
RCA*4 |
|
|
System Upgrade Interface |
USB 2.0*1 |
|
TV Input Interface |
RF*1 |
|
Loudspeaker |
Stereo Loudspeaker*2 |
|
Operation |
Panel Key, IR |
|
(Optional) Built In Play Box - For play advertising: (can be custom made to order) | ||
Media Format |
Picture: JPEG,BMP,PNG; Audio:MP3,WMA,M4A(AAC); Video:MPEG1,MPEG2,MPEG4,RM,RMVB,MOV,MJPEG,Div×,H.264; Text: Notepad |
|
(Optional) Built With Touch Screen: (can be custom made to order) | ||
Type |
Resistive Touch Screen |
Surface Acoustic Wave Touch Screen |
Resolution |
4096*4096 |
4096*4096 |
Response time |
8 ms |
10.4 ms (including trasfer time) |
Touch points |
1 |
1/2 |
Touch Intensity |
150g |
80g / 120g |
Applicable Lifetime |
>300,000 hours |
|
Communication Ports |
USB , RS232 optional |
|
Support OS |
Windows 7, Windows 8, Windows 8.1, Windows XP, Android OS, Vista, MAC OS, Linux |
|
Other Optional Functions: | ||
Custom OS(Android/Windows/Linux), Barcode Scanner, Thermal Printer, Motion Sensor, etc. | ||
Regarding Inquiry: | ||
Regarding Inquiry |
For providing an accurate solution and quotation please try to provide below Details when you send inquiry. Thanks! - Size. - Usage. - Interface. - Application. - Special functions. |
|
Touch Screen Monitor With Built In Computer:
Optional 1 : Android OS optional
CPU: Allwinner A20/A31, 1.2GHz
RAM: 1GB/2GB DDR3
FLASH(ROM): 4GB/8GB
Version: Android 4.2.2
Optional 2 : Windows OS optional
CPU: Intel N2800/i3/i5/i7 core
RAM: 2GB/4GB/8GB DDR3
FLASH(ROM): 4GB/8GB/16GB
Version: Windows 7, Windows 8, Windows 8.1.etc.

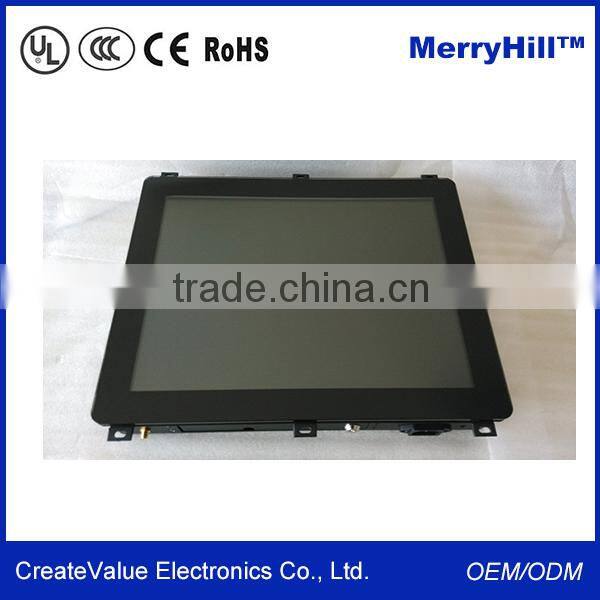

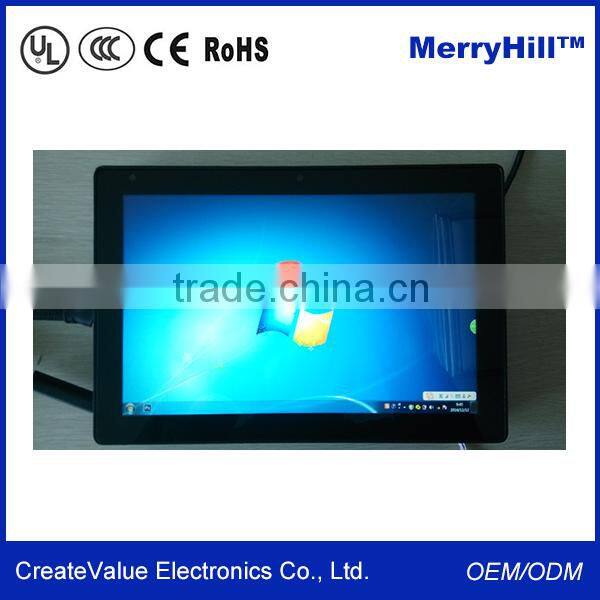

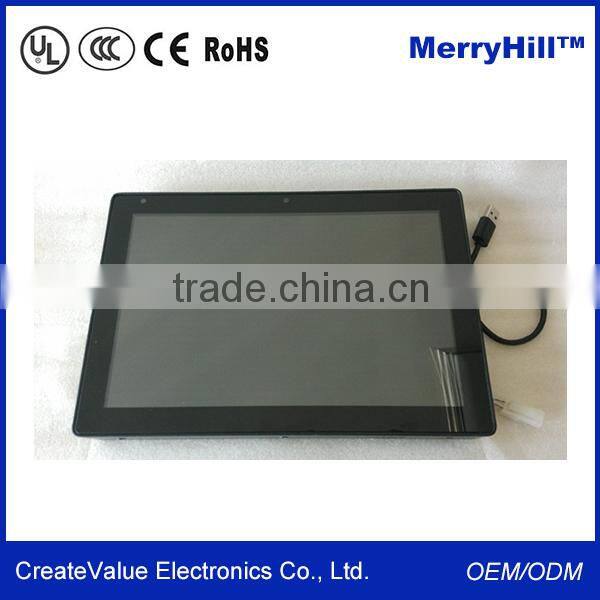

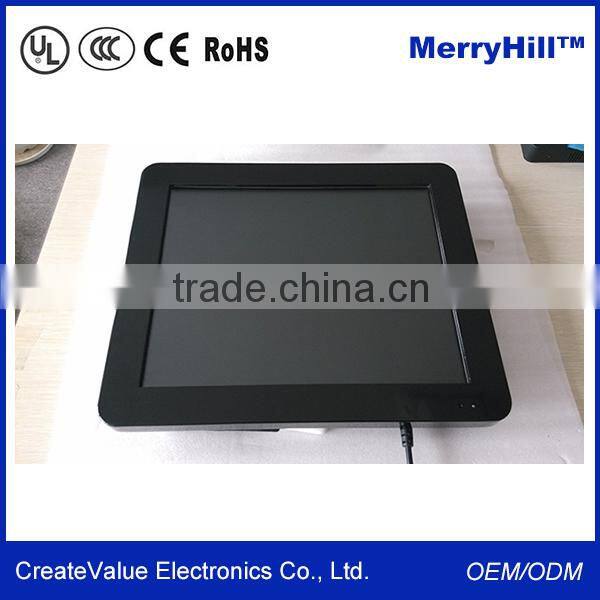

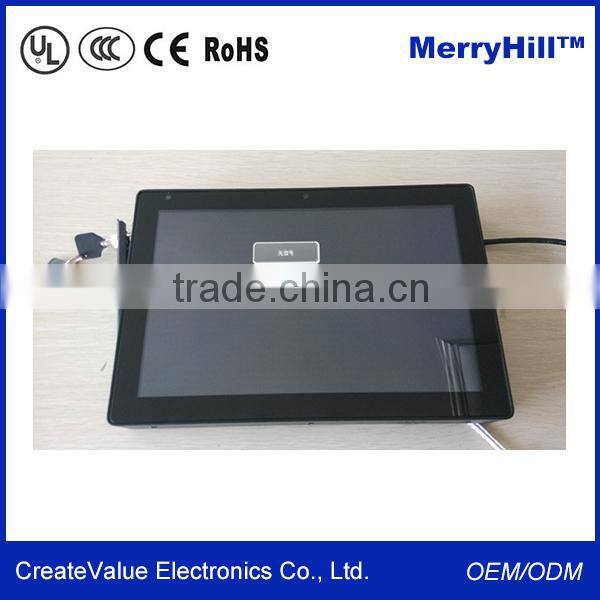

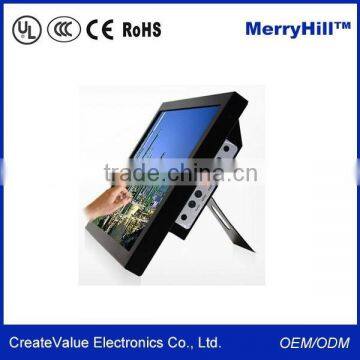

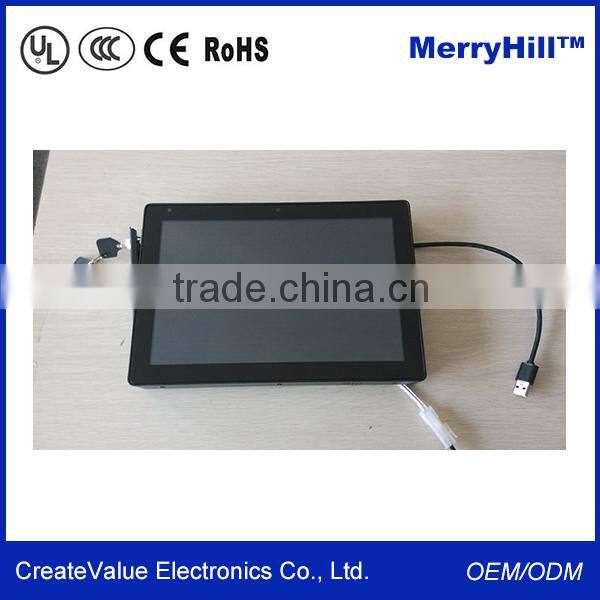

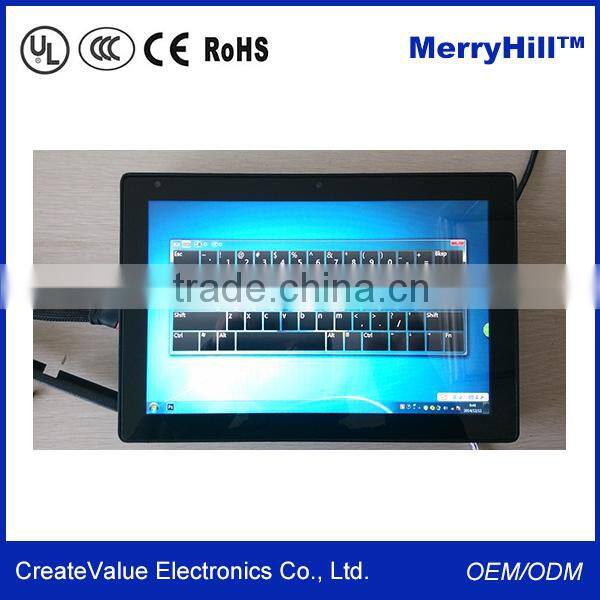

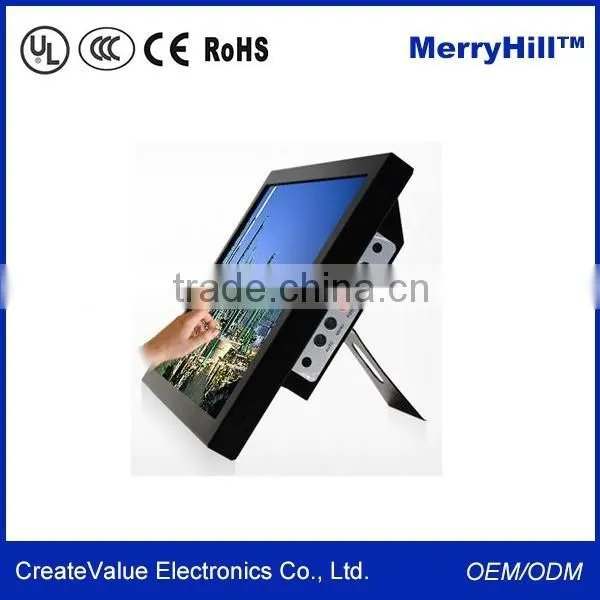

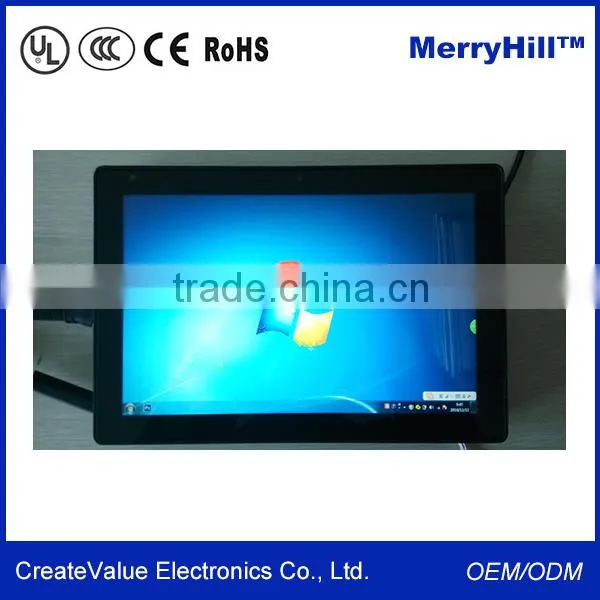

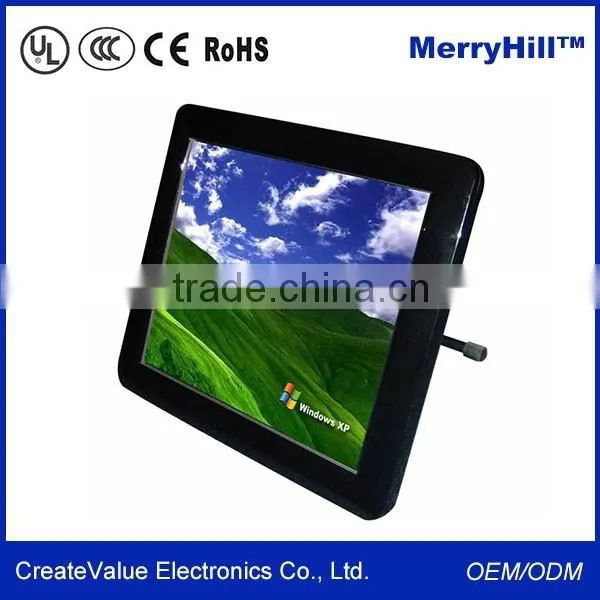

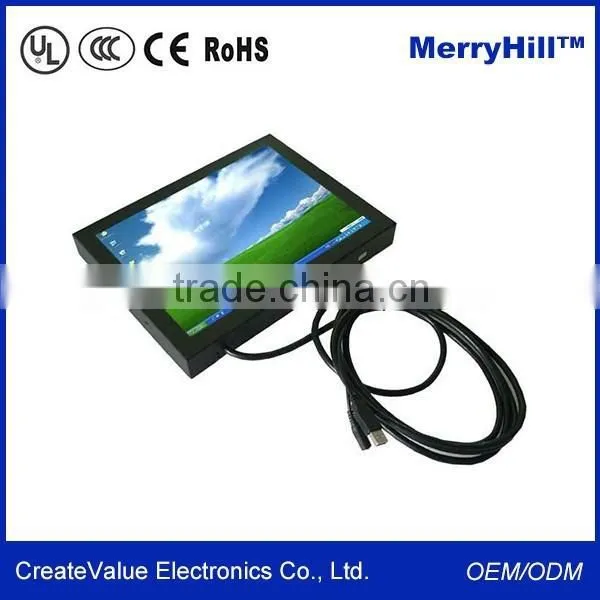

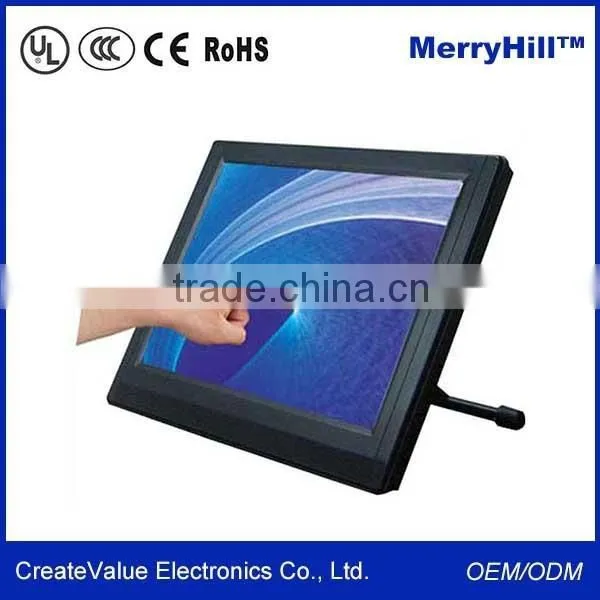

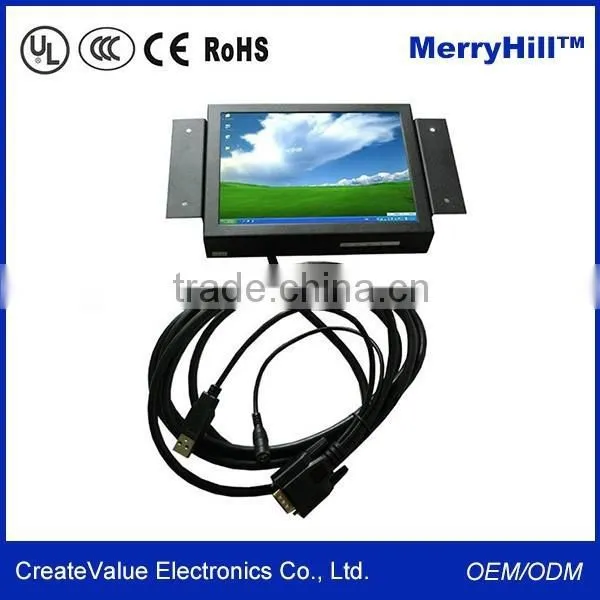

Product Pictures
Product Overview
- Thin and concise design makes it easy to use and charming to eyes.
- The full metal casing avoids the electromagnetic interference in public places.
- Industrial standard LED backlight, HD LCD screen with high-resolution, high contrast ratio, ultra-wide view angle.
- With 3D combing filter and dynamic noise reduction technique, the professional driver chipset ensures the sharpness, stability and vivid colors of the display.
- Professional OSD menu with rich functions.
- Multiple input and output interfaces meet the needs of users.
- 7- 36V wide-range voltage input makes it especially suitable for the application on vehicle.
- Touch screen optional enhances its adaptability.
- The monitor is high stable and reliable, energy saving and environmental friendly.
Product Features
- Thin and concise design makes it easy to use and charming to the eye.
- The full metal casing avoids the electromagnetic interference in public places.
- Industrial standard LED backlight HD LCD screen with high-resolution, high contrast ratio, ultra-wide viewing angle.
- With 3D combing filter and dynamic noise reduction technique, the professional driver chipset ensures the sharpness, stability and vivid colors of the display.
- Professional OSD menu with rich functions.
- Multiple input and output interfaces meet the needs of users.
- 7- 36V wide-range voltage input makes it especially suitable for the application on vehicle.
- Touchscreen optional enhances its adaptability.
- The monitor is high stable and reliable, energy saving and environmental friendly.
- It is compatible with various installations by using its standard VESA mounting holes.
Product Applications
- Video surveillance & control system:
>> Monitoring and dispatching center in police department, fire control department, transportation, coal mine, government, Enterprise, intelligent buildings, residential communities.
- Public displays:
>> Show places in airports, railways, subways, highways and other
transportation industries, libraries, museums, zoos, shopping malls.
- Business presentations:
>> TV studio, large-scale performances and commercial exhibition, hotel lobby, conference room, etc.
- Scientific research and military:
>> Research and education institutions, medical institutions, military
command department, meteorological geological surveys, industrial equipment, etc.
Company Profile
Nanjing CREATEVALUE Electronics Company is a high-tech enterprise specialized in R&D, manufacture and sales service. We do business on LCD-TFT products basis. The main products series include Advertising digital signage, LCD Monitor, Touch monitor, All-in-one/Tablet PC, Kiosk, Touch series and other terminal displays.
We are dedicated to providing customers with high-quality products reasonable prices and best service since founded. We possess rich industry experience, excellent R & D team and production capabilities, which makes us meet customer needs not only mess productions but also customized design.
We are located in Jiangsu - the most developed province in electronics industry in the East China. There are a large gathering of world famous companies including Sharp, HannStar, LG, Panda. After many years of exploiting market, our products are widely recognized and trusted by different customers around the world, such as America, Spain, the UK, France, Australia, Mexico, etc.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Sales Network
Service & Support
- Fast Production:
>> We accept OEM and ODM, 4-7 working days for samples with standard configurations.
- Continuous Innovation:
>> We promise releasing of new version monthly to enhance customer satisfaction.
- Favorable Pre-sell Advice:
>> Answering questions for the customer patiently; 24 hours around the clock.
- On-purchase Service:
>> Tracking sales and solving on-sale problems.
- Terrific After-sales Service:
>> Offering one more spare part for every 100 orders.
>> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
Package Details
Payment Terms
Delivery/Shipment
Any comments, requirements or questions, please do not hesitate to contact us!
