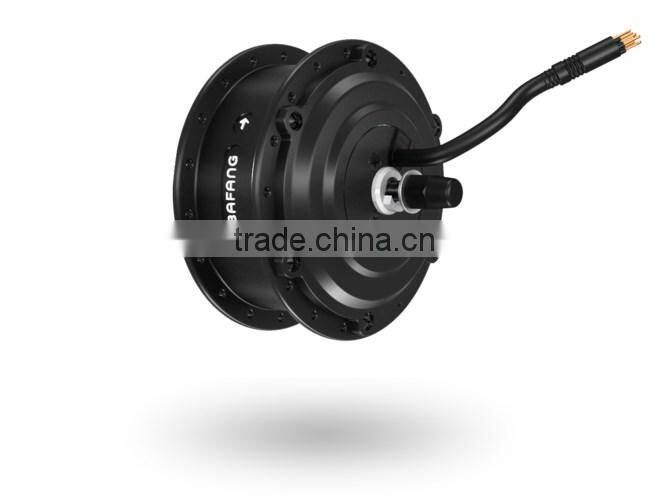

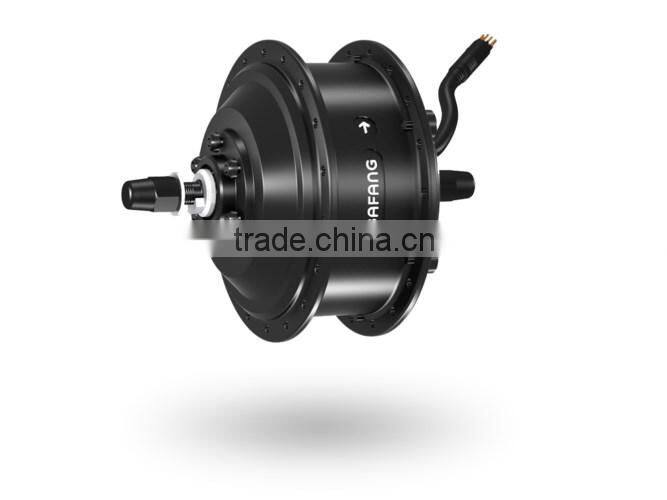

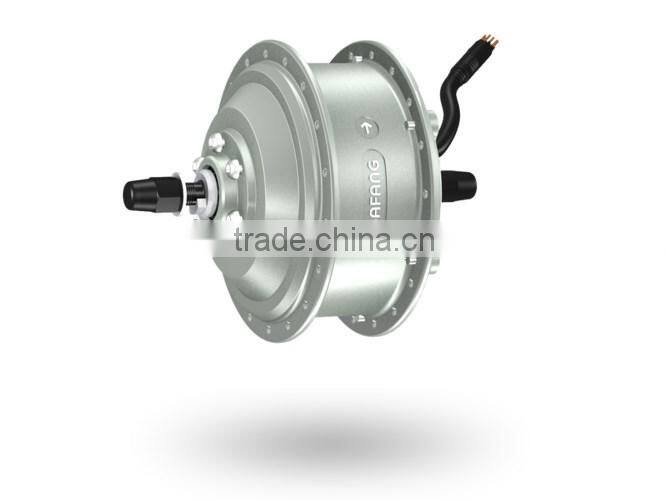

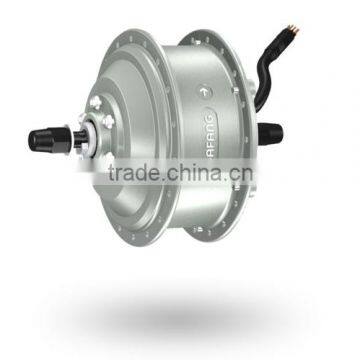

bafang front -drive small wheel motor SWXK6
---------------------------------------------------------------------------------------
Position : front
Contruction : Gear motor
Normail Voltage 24V/36V
Rated power : 250W
RPM : 185~285
Max torque : 32N.M
Efficiency : more than 80%
Mounting parameter
-----------------------------------------------------------------------------------
Brake : Disc brake
Weight : 2.4kgs
Installation width: 100mm
Max Housing Diameter : 134mm
Cabling : Shaft Center ,RIGHT
Spoke specification : 12 G /13g
-------------------------------------------------------------------------------------------------------------------------------------
Further Specification
Cadence ( pulses/cycle) 6/1
Reduction Ration : 1:6;3
Magent Poles : 20
Noise : less than 55 dB
Hall sensor : Opitional
Connector : waterproof
-----------------------------------------------------------------------------------------------------------------------------------
Test & Certifiation
IP-code : IP 65
Certifications : ROHS /CE
1, This kits can be installed on standard normal bike frame easily, no need to change the frame.
advantage of this kits
2, High starting torque, Max torque≥80N, good performance on climbing.
3, Double clutch is used on drive unit, more safety.
4, High efficiency, low consumption, long travel distance.
