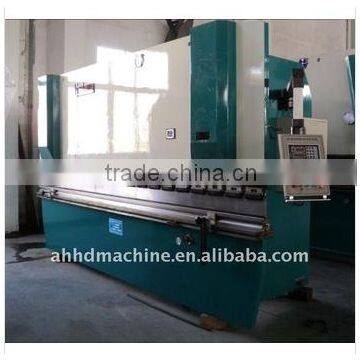

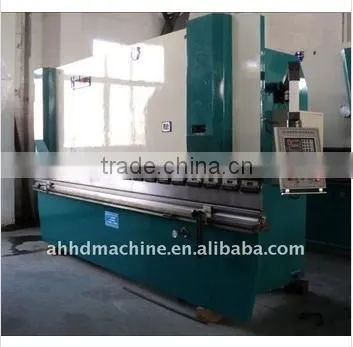

HYDRAULIC TORSION SERVO CNC PRESS BRAKE WITH LOW COST

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	HUDUAN	Model Number	80T/2500
Machine Type	Beading Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Cnc
Automation	Automatic	Extra Services	Cut To Length
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

ATOS valve group
Gear pump
Pipe joint(not welded)
E10-D NC system
Whole processing

NC Hydraulic press brake
1:NC Controller,Digital display
2:CE,ISO certificate

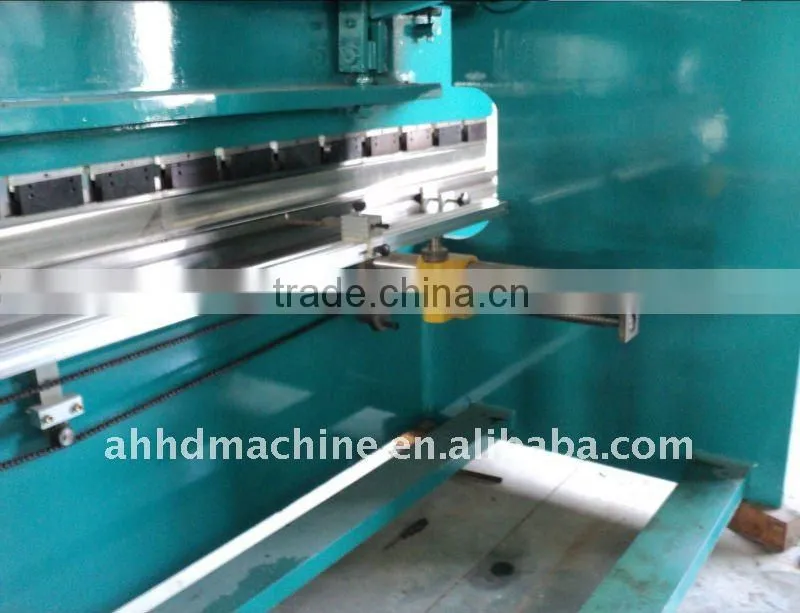

3:Back gauge,stroke can be
motorized adjusted &displayed ;

4:Gear Pump ,low noise;

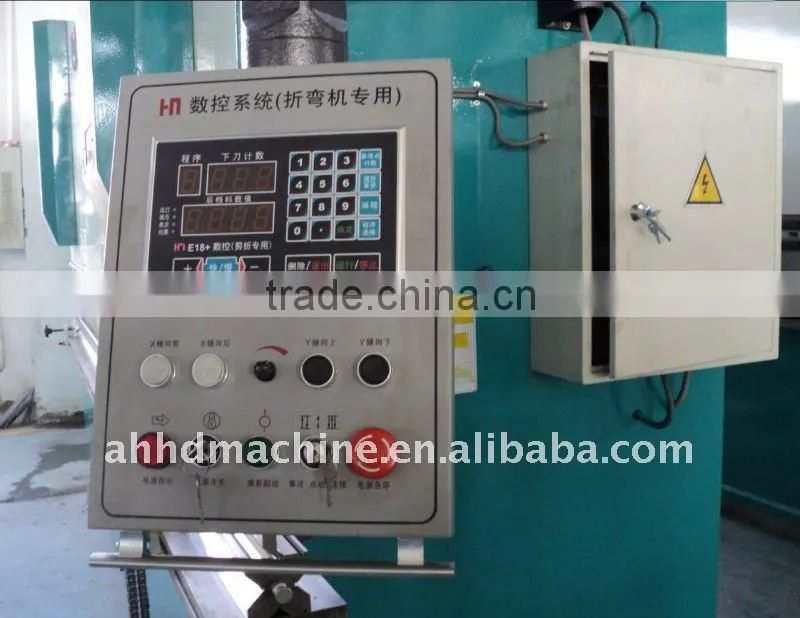

Hydraulic press brake with E18 NC control

No.	Name	Brand	Location
1	Motor	Dangpeng	Zhenjiang, China
2	Electrics	TE/OMROM	Germany brand
3	Oil Cylinder	Wuyang	Maanshan, China
4	Seal ring	DZ	Taiwan
5	Pump	Hangfa	Shanghai, China
6	Hydraulic system	Omega	Jining, China
7	Two axes Controller	E200	Estun,China

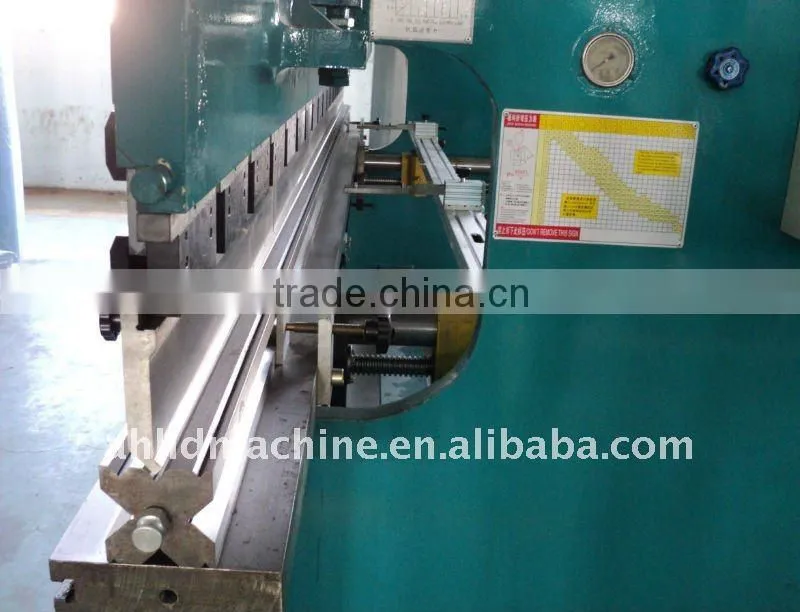

8	Punch and Die	Xinming / Lianmeng	Maanshan, China
9	Pipe connector	EMB	Germany
10	Foot Switch	Karcon	South Korea
11	Ball lead screw	HIWIN	Taiwan
12	Straight-line guide	HIWIN	Taiwan

Model: WF100T/4000
No	Name	Amount	Unit
1	Nominal pressure	80	KN
2	Poles distance	2000	mm
3	Throat depth	250	mm
4	Slipper stroke	120	mm
5	Max. opening height	365	mm
6	Slipper stroke adjustment	100	mm
7	Diameter of cylinder	180	mm
8	Main motor power	7.5	kw
9	Oil pump power	25	ml/r
10	System pressure	22	Mpa
11	Wallboard thickness	40	mm
12	Slipper thickness	50	mm
13	Machine weight	7 800	Kg
14	Workbench length	2500	mm
15	Dimension (L×W×H)	2800×1 350×2 135	mm

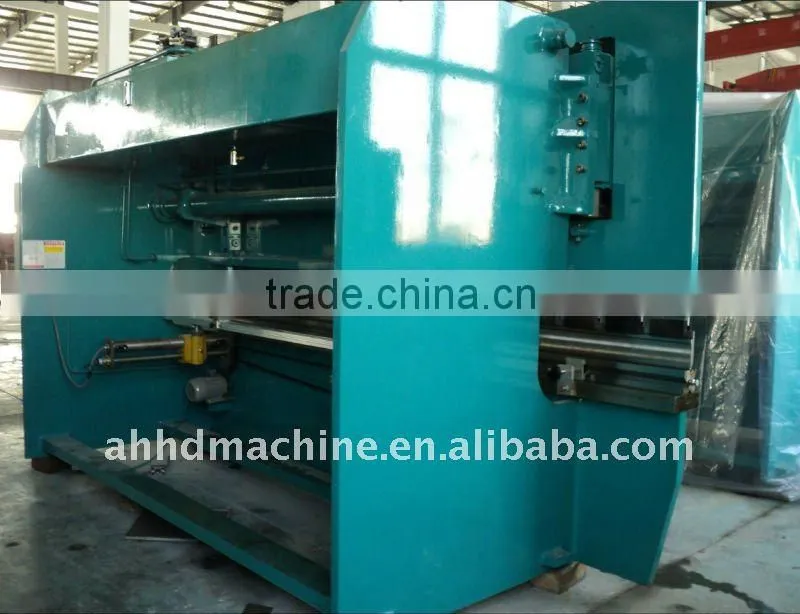

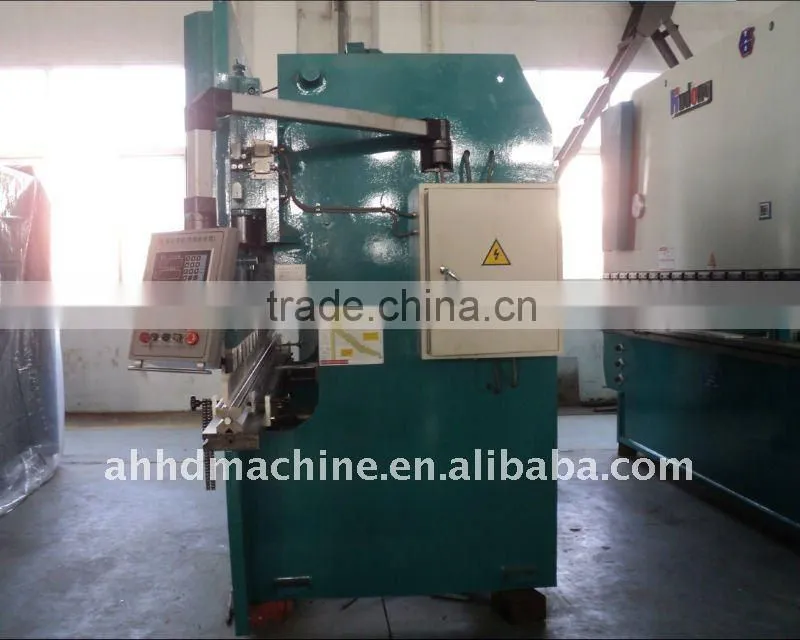

Overall structure

5.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

5.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

5.3 The mechanic block is equipped in the oil cylinder to ensure the fixing accuracy when the slider travels to the bottom dead point and so as to assure the consistency of bending angle in bulking production.

5.4 Using German technology to eliminate internal stress.

5.5 Entire frame using striking grit to get rid of rust and spout anticorrosive paint.
