Specifications
CNC Hydraulic Press Brake1:Professional Manufacture
2:Good Quality
3:Competitive Price
4:Over 30 years experience

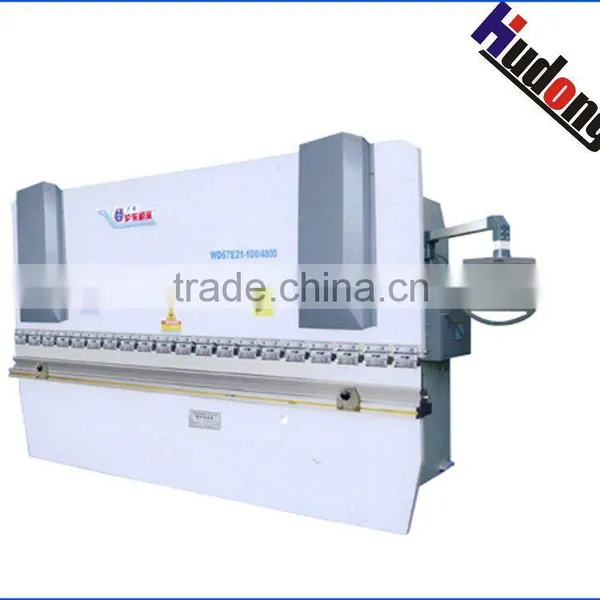

CNC Hydraulic Press Brake
Hydraulic Press Brake Tooling
1:Professional Manufacture
2:Good Quality
3:Competitive Price
4:Over 30 years experience
Model: WC67Y--40/2200
Hydraulic Press brake
Type: Hydraulic with Torsion bar synchronized and digital display
Hydraulic Plate Press Brake
Technical Files
1) Hydraulic press brake with mechanical digital display
No. |
Name |
Brand |
Location |
1 |
Motor |
Dangpeng |
Zhenjiang, China |
2 |
Electrics |
SIEMENS |
Germany brand |
3 |
Oil Cylinder |
Wuyang |
Maanshan, China |
4 |
Seal ring
|
DZ |
Taiwan |
5 |
Pump |
Hangfa |
Shanghai, China |
6 |
Hydraulic system |
Omega |
Jining, China |
7 |
Mechanical Display /LED Digital Display |
SICK |
Germany Estun, China |
8 |
Punch and Die |
Xinming / Lianmeng |
Maanshan, China |
9 |
Pipe connector |
EMB |
Germany |
10 |
Foot Switch |
Karcon |
South Korea |
General
Bending force 100 Tn;
Bending length 2200 mm;
Max. openning 320 mm;
Regulation of Slider travel 100 mm;
Throat depth 250 mm;
Working table
Working table length 2200 mm;
Working table width 200 mm;
Working table height 800 mm;
Electrics
Main power 7.5 kW;
Back gauge:
Back gauge motor 0.55 Kw;
Back gauge travel 600 mm;
Main Equipments:
Hydraulic system: Omega;
Pump: Gear pump;
Electrics: China CHINT
O-rings: Japanese NOK;
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Stop fingers 2
Front supporting arms 2
Emergency stop button;
Back, left and right safty fence
Foundation bolts 1set
Toolings 1set (screw driver and spanner)
Manuals and diagram 1book
Dimension and Weight:
Length 2200 mm;
Width 1850 mm;
Height 2400 mm;
Weight (Approx.) 5500 kg
Overall structure
5.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
5.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
5.3 The mechanic block is equipped in the oil cylinder to ensure the fixing accuracy when the slider travels to the bottom dead point and so as to assure the consistency of bending angle in bulking production.
5.4 Using German technology to eliminate internal stress.
5.5 Entire frame using striking grit to get rid of rust and spout anticorrosive paint.
