Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > WF67K-200T3200 Hydraulic Cnc Plate Bending Machine (4+1 Axis)

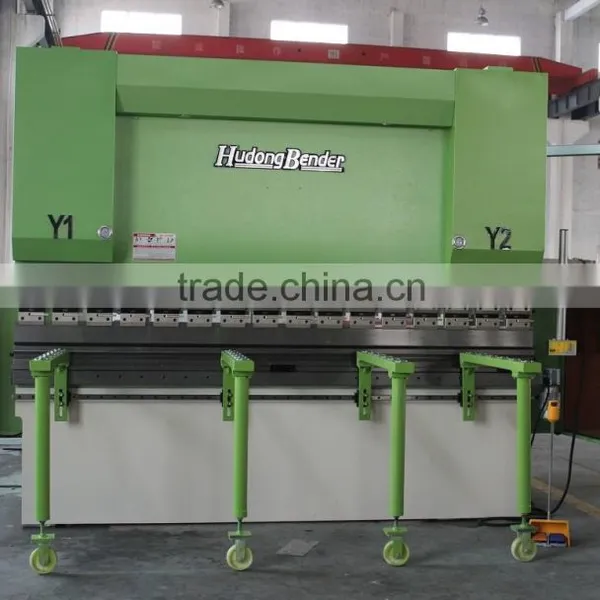

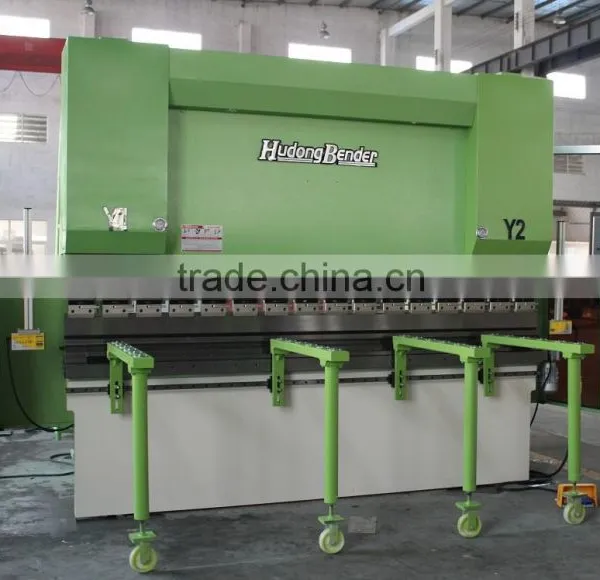

WF67K-200T3200 Hydraulic Cnc Plate Bending Machine (4+1 Axis)
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HUDUAN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WF67K-200T3200 Hydraulic Cnc Plate Bending MachineUS$ 5,000 - 50,000MOQ: 1 Set -
CONWENIENTLY CONTROL HYDRAULIC PRESS BRAKENegotiableMOQ: 1 Set
-
HYDRAULIC TORSION SERVO CNCPRESS BRAKE WITH MACHINICAL STOPNegotiableMOQ: 1 Set
-
Exported to USA 30Tx1600 Hydraulic NC Press BrakesNegotiableMOQ: 1 Set
-
1.5 Meter Sheet Metal Press BrakeNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
HUDUAN
Model Number
WF67K-200T3200
Machine Type
Beading Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Cnc
Automation
Automatic
Extra Services
End Forming
Certification
Other, CE, CE and ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
WF67K-200T3200 Hydraulic cnc plate bending machine (4+1 axis)Automatic deflection compensation;
Rexroth hydraulic valve
WF67K-200T3200 Hydraulic cnc plate bending machine (4+1 axis)
Standard with Holland Delem DA65W ,
Germany Rexroth high-performance servo-hydraulic system control synchronization,
Both sides with Italy position feedback encoders detect synchronization,

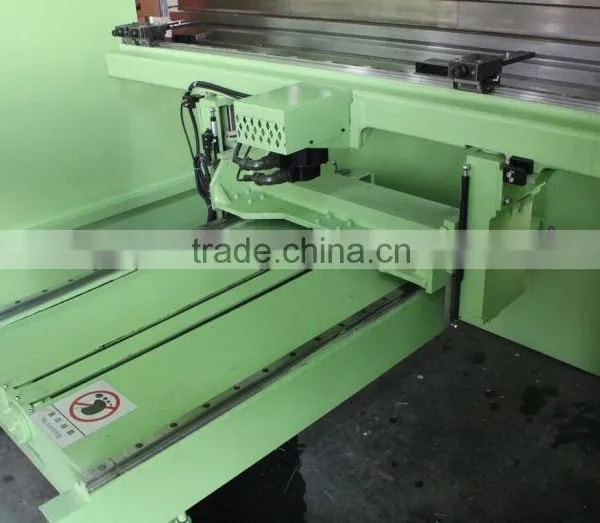

back gauge with high performance servo motor and ball screw,
DNC system control using deflection compensation,
Standard press brake tooling,
Front support.
- Technical parameter
| Model | WF67K-200T/3200 |
| Bending length | 3200 mm |
| Nominal force | 1250 KN |
| Poles distance | 2800 mm |
| Throat depth | 320 mm |
| Slider travel | 150 mm |
| Dies height | 460mm |
| Main motor | 18.5 KW |
| Number of control axes | 4+1 axis |
| Dimension L×W×H(mm) | 3200X16500×2700 |
| Machine Weight | 14000kg |
| Machine accuracy | |
| Slider repeat accuracy | ≤±0.02mm |
| Slider position accuracy | ≤±0.02mm |
| Back gauge repeat position accuracy | ≤±0.02mm |
| Straightness of workpiece | 0.3mm / m |
| Bending angle deviation | <±30′ |
| Grating resolution | 0.005mm |
