Specifications
cnc synchronized press machinery1Over 30 years manufacture experience
2:1 year warranty
3Good Quality
4 Good Price
hydraulic cnc synchronized press machinery
1Over 30 years manufacture experience
2:1 year warranty
3Good Quality with ISO
4Competitive Price

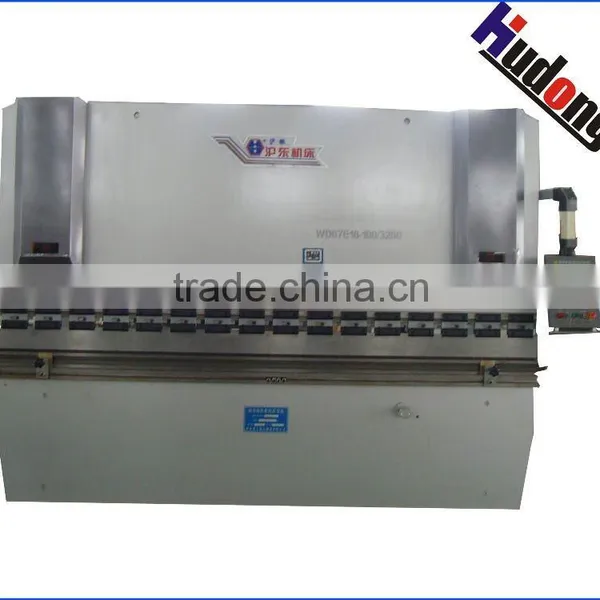

Model: WF67K 100T/3200
CNC Hydraulic Press Brake
Type: Hydraulic with Grating ruler synchronized
Major parameters:
Bending force: 100 Ton;
Bending length: 3200 mm;
CNC controller: Italy ESAS540 (Standard)
Optional controller: Delem DA65W, Cybelec 880S
With hydraulic crowing table (V) controlled by CNC system
Axes: 4+1 (Y1,Y2,X,R+V)
Other parameters:
Throat depth: 320mm
Stroke: 200 mm
Worktable height: 800mm
Worktable width: 70mm
Distance between housing: 2700 mm
Approach speed: 120mm/sec
Working speed: 10mm/sec
Return speed: 110mm/sec;
Back gauge range: 600mm
Positioning speed of X-axis: 200mm/sec
Positioning accuracy of X-axis: ±0.05mm
R-axis range: 200mm(Max.)
Positioning speed of R-axis: 180-200mm/sec
Positioning accuracy of R-axis: ±1.0mm
Main motor: 7.5 KW
Main Equipments:
Hydraulic system: Germany HOERBIGER/BOSCH;
Pump: Germany HOERBIGER/BOSCH;
Grating ruler: Italy GIVI
Servo Motor and diver: Japan YASKAWA
Electrics: TE / OMROM
O-rings: Germany FLETZ / Japan VALQUA;
Pipe Conectors: Germay EMB;
Ball screw: TAIWAN HIWIN
Line guide rail: TAIWAN HIWIN
Foot Switch: Korea KACON
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Quick clampings 1set
Stop fingers 2
Front supporting arms 2
Emergency stop button;
Back, left and right safty fence
Foundation bolts 1set
Toolings 1set (screw driver and spanner)
Manuals and diagram 1book
Overall Dimension and Weight:
Length 3200 mm
Width 1580 mm
Height 2400 mm
Weight (Approx.) 8500 kg
Overall structure
4.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
4.2 The entire machine is fully steel welded structure, with excellent rigidity and stability.
4.3 Using German technology to eliminate internal stress.
4.4 Entire frame using striking grit to get rid of rust and spout anticorrosive paint.
5) Characteristic and feature
5.1 Assisting blade pedestal on worktable is convenient for micro adjustment.
5.2 Rolling material support ball is provided on worktable, convenient operation.
5.3 Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
5.4 The adoption of four-side edge shearing blade prolongs the service life of blade.
5.5 Regulating shearing process not only increases the production efficiency but also achieve the function of segment shearing.
5.6 It is provided with counting function for shearing to decrease the numerous artifical counting.
