cheaper price W11 Mechanical 3-roller Symmetrical Plate Rolling machine with plate bending Machine
Subject summarize

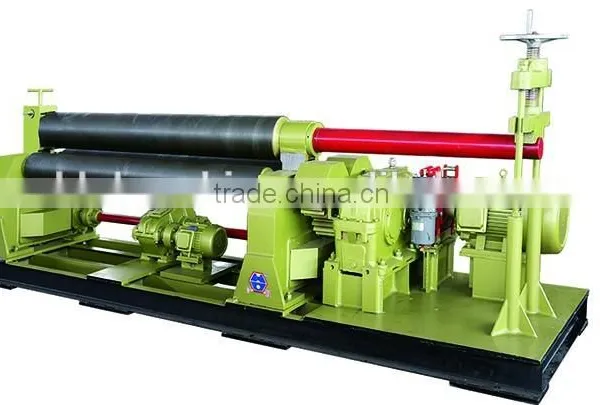

The machine adopts mechanical driving with the upper roller moving vertically in the center
between the two lower rollers which is achieved though the driving of the screws ,the nut ,
the worm and the lead screws. The two lower rollers rotates and provide the plate materials with
torque though the engagement of the output gear of the moderador with the gear of the lower
rollers.
The structure of the machine is simple and compact. It is convenient to maintain and repair.
The machine is equipmented with electrical case which only need one person to operation.
The electrical air case has moving direction of every part. The upper roller moves overdraft press .The lower rollers rotate, corotate and press the button. It is very convenient to operate and it has low fault rate.
| MODEL | W11-8x3100 |
| Diameter of top shaft | Φ240mm |
| Diameter of bottom shaft | Φ180mm |
| Central distance between bottom shafts | 280mm |
| Max thickness of coiled plate | 8mm |
| Max width of coiled plate | 3100mm |
| Coiling speed | 4m/min |
| Min full loading diameter of coiled plate | Φ550mm |
| Motor power | 7.5kw |
| Yielding limit of sheet metal | 245mpa |
| Dimension(lengthx widthxheight) | 4760x900x1345mm |
| Weight | About 4.5T |
20GP container load, rope steel fixed inside of the container
1. We can send engineers to your factory for your installation ,debugging and training.
2. we can help customer slove problem in the network.
3. welcome to visit our factory, we will pick up.
pls contact Mr Yang, hope to service you.
| shyzf91(at) | |
| Skype | youth.yang88 |
| 15156701571 |
Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years
