Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 2.5inch 7W Samsung SMD3020 90-100 Lm/w Dimmable Led Downlight With SAA/C-Tick/CE/CB Approved

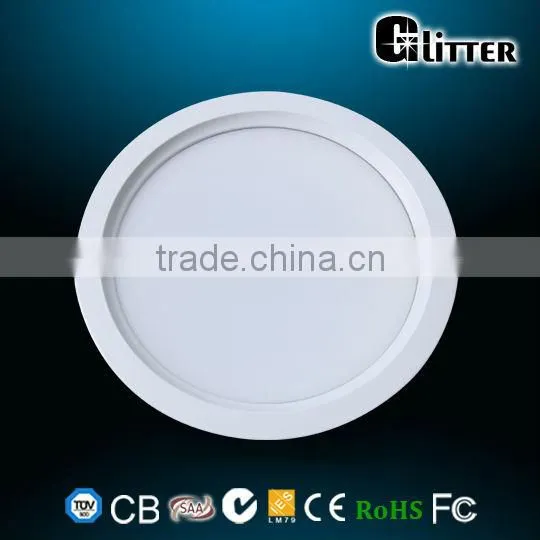

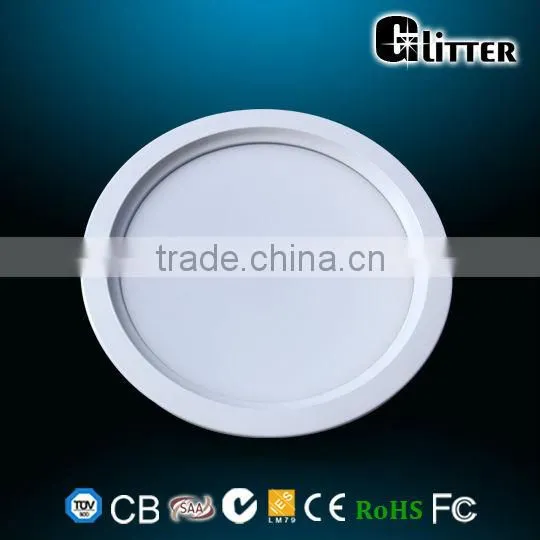

2.5inch 7W Samsung SMD3020 90-100 Lm/w Dimmable Led Downlight With SAA/C-Tick/CE/CB Approved

Name: 2.5inch 7W Samsung SMD3020 90-100 Lm/w Dimmable Led Downlight With SAA/C-Tick/CE/CB Approved
Brand: Glitter
SKU: 129701491
Availability: InStock

2.5inch 7W Samsung SMD3020 90-100 Lm/w Dimmable Led Downlight With SAA/C-Tick/CE/CB Approved thumbnail-1

2.5inch 7W Samsung SMD3020 90-100 Lm/w Dimmable Led Downlight With SAA/C-Tick/CE/CB Approved photo-1

US$ 7 - 12 MOQ: 100 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Sumsung SMD3020

Warranty(Years):

Input Voltage(V):

220

Contact Supplier Request Quote Chat Now

Shenzhen Glitter Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Sumsung SMD3020

Warranty(Years) 5

Input Voltage(V) 220

Lamp Power(W) 7

Lamp Luminous Flux(lm) 600

Lamp Luminous Efficiency(lm/w) 95

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 50.000

Lamp Body Material Aluminum Alloy

IP Rating IP44

Certification C-tick, GS, PSE, SAA

Model Number DL-S1-7W

Brand Name Glitter

Specifications

1.7W dimmable fire rated led downlight
2.Samsung SMD3020, aluminum alloy for the shell.
3.90-100 lm/w led downlight, CRI>85

2.5inch 7W Samsung dimmable 90-100 lm/w SMD led downlight with SAA/C-Tick/CE/CB approved

Features and Advantages:

a. LED: Samsung SMD5630 Imported From Taiwan

b. Ture Color Lighting,High CRI Ra85

c. Certificates:SAA, C-Tick,CB, CE, GS, RoHS,FCC

d. PF>0.92, Energy Efficiency: >0.88

e. Light efficency up to 95lm/W downlight led

f. Wide Beam Angel

Technical Specifications
A: Electrical Data

No.	Item		Description
1	Dimension		Ø90x58 mm
2	Construction Hole Size		Ø80 mm
3	Voltage		AC85-265V
4	Current Frequency		50/60 Hz
5	Power		7W
6	LED Type & Qty		30pcs SMD3020
7	Beam Angle		60 degree
8	Color Temp.	Warm white	2800-3500K
		Neutral white	3800-4500K
		Cool white	5500-6500K
9	Lumen	Warm white	>500lm
		Neutral white	>570lm
		Cool white	>640lm
10	Color Rendering Index		>80
11	Material		Cover: PMMA, Housing: Aluminum 6063
12	Operating temperature		-20~+50 °C
13	Humidity		20-85%
14	Certificate		CE, RoHS, SAA,CB
15	Luminaires Class		Ⅲ

Packing Information

Item	Single Box Packing			Carton Package
Item	QTY/Box	Box Size	G.W.	QTY/CTN	Carton Size	G.W.	Volume Weight
DL-S1-7W	1pc	97x100x90mm	0.30kgs	60pcs	530330390mm	17.50kgs	14.00kgs

Application

Widely used in hotels, display, shopping mall, gym, underground parking,
corridors, exhibitions, clubs, family illumination, other indoor lighting.

Dimension (Unit: mm)

Installation:

Certificates:

Ageing Test(18-24 hours):

Warranty

3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.

Any colors, any logo acceptable. Leave an inquiry to know more details about pricing, packing shipping and discount.
