Specifications
1.12w led downlight module2.Samsung SMD3020 as the light source and aluminum alloy for the shell.
3. Up to 95lm/w, CRI>85
4inch Samsung SMD3020 12w led downlight module 95lm/W with SAA/C-Tick/CE/CB certificates
Features and Advantages:
a. LED: Samsung SMD5630 Imported From Taiwan
b. Ture Color Lighting,High CRI Ra85
c. Certificates:SAA, C-Tick,CB, CE, GS, RoHS,FCC
Technical Specifications
A: Electrical Data
| No. | Item | Description | |
| 1 | Dimension | Ø130x70mm | |
| 2 | Construction Hole Size | Ø115mm | |
| 3 | Voltage | AC85-265V | |
| 4 | Current Frequency | 50/60 Hz | |
| 5 | Power | 12W | |
| 6 | LED Type & Qty | 44pcs SMD3020 | |
| 7 | Beam Angle | 60 degree | |
| 8 | Color Temp. | Warm white | 2800-3500K |
| Neutral white | 3800-4500K | ||
| Cool white | 5500-6500K | ||
| 9 | Lumen | Warm white | >900lm |
| Neutral white | >980lm | ||
| Cool white | >1100lm | ||
| 10 | Color Rendering Index | >80 | |
| 11 | Material | Cover: PMMA, Housing: Aluminum 6063 | |
| 12 | Operating temperature | -20~+50 °C | |
| 13 | Humidity | 20-85% | |
| 14 | Certificate | CE, RoHS, SAA, TUV,C-Tick | |
| 15 | Luminaires Class | Ⅲ | |
Packing Information
| Item | Single Box Packing | Carton Package | |||||
| QTY/Box | Box Size | G.W. | QTY/CTN | Carton Size | G.W. | Volume Weight | |
| DL-S2-12W | 1pc | 135x135x100mm | 0.45kgs | 40pcs | 710*300*440mm | 17.85kgs | 18.75kgs |
Application
Widely used in hotels, display, shopping mall, gym, underground parking,
corridors, exhibitions, clubs, family illumination, other indoor lighting.

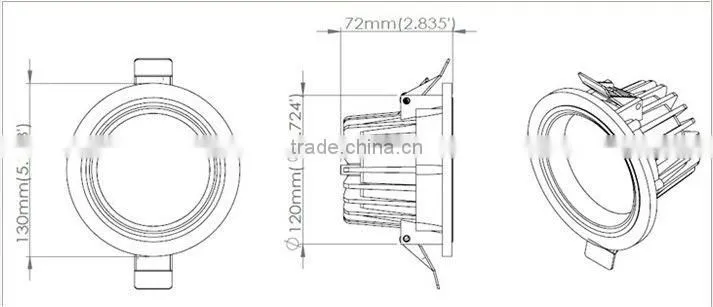

Dimension (Unit: mm)
Installation:
Certificates:
Ageing Test(18-24 hours):
Warranty
3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the rights for final explanation of aforesaid terms.
Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
