Specifications
1. Fire rated Sharp COB Down light2. Adjustable beam angle
3. Emergency time: 3 hours
4. Certificate: SAA, CE, RoHS, GS,CB

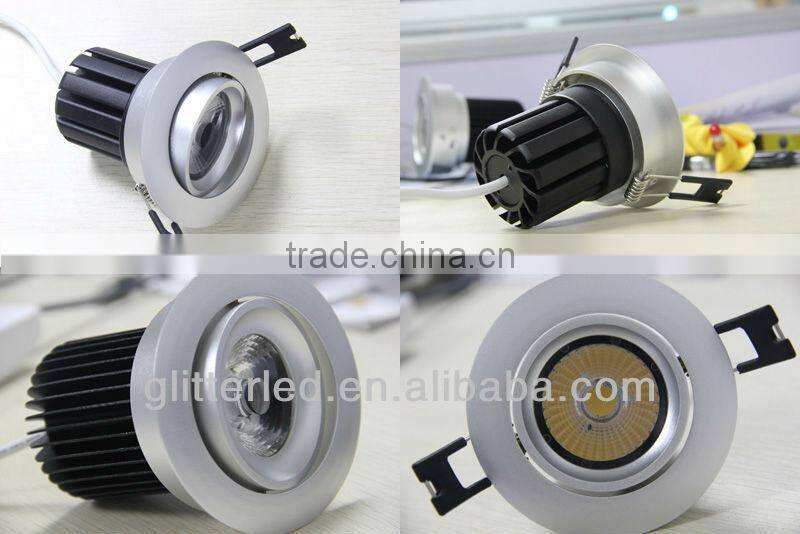

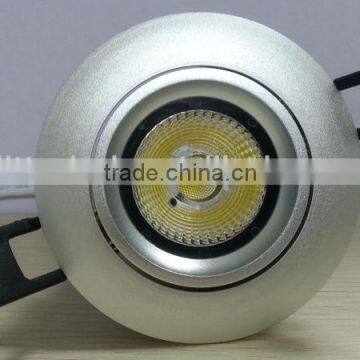

Fire rated Sharp COB Down light
1. Main Feature:
- * 1070 AL Housing, Cold Forging Heat Dissipation
- * TechThermal Conductivity: 2.6
- * Unique Lens just For Replacement Of Halogen
- * Beam Angel: 25°,35°
- * SHARP COB 1215, CRI>80
- * Adjustable Light Angel
- * Fire-Proof : V0 Standard
- * Isolated Driver (SAA, CB, GS approved)
2. Special design:

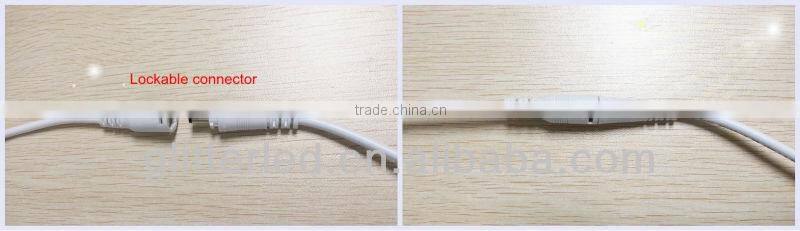

1. Lockable Male and Female Connector.
2. High efficiency LED Driver , GS,CB, SAA approved, PF>0.92, Power efficiency>0.90
3. Elegant appearance, Adjustable beam angle
3. Parameter sheet:
1. Electronicial Data
| No. | Item | Description | |
| 1 | Dimension | Ø96x90mm | |
| 2 | Construction Hole Size | Ø85mm | |
| 3 | Voltage | AC85-265V | |
| 4 | Current Frequency | 50/60 Hz | |
| 5 | Power | 15W | |
| 6 | LED Type & Qty | 1pcs COB1215 | |
| 7 | Beam Angle | 15 25 35 60 degree | |
| 8 | Color Temp. | Warm white | 3000K |
| Neutral white | 4000K | ||
| Cool white | 5000K | ||
| 9 | Lumen | Warm white | >1100lm |
| Neutral white | >1200lm | ||
| Cool white | >1250lm | ||
| 10 | Color Rendering Index | >80 | |
| 11 | Material | The acrylic lens, Housing:Aluminum 1070 | |
| 12 | Operating temperature | -20~+50 °C | |
| 13 | Humidity | 20-85% | |
| 14 | Certificate | CE, RoHS, SAA, TUV | |
| 15 | Luminaires Class | Ⅲ |
|
2. Optic test

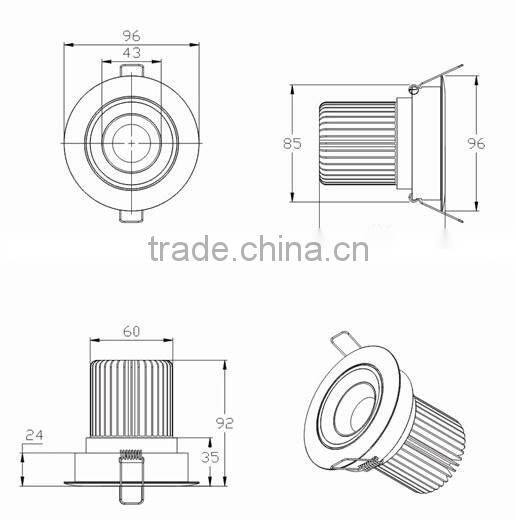

4. Dimensions
5. Package:
|
Item |
Single Box packing | Carton packaing | |||||
| QTY/Box | Box Size | G.W. | QTY/CTN | Carton Size | G.W. | VolumeWeight |
|
| CL-C1-15W | 1 PCS | 135X135X100mm | 0.45KG | 40 PCS | 710X300X400mm | 17.85KG | 18.75 KG |
6. Warranty:
5-year warranty since the date of purchase is offered for Glitter COB Downlight
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance services based on the proof-documents and invoice (copy) of failure product.
2. GLITTERwill provide paid maintenance services by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance services, GLITTER will not beresponsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTERreserves the rightsfor final explanation of aforesaid terms.
Caution: GLITTERwill not be responsible for any other failure or damage by incorrectly usage.
7. Certificates:
