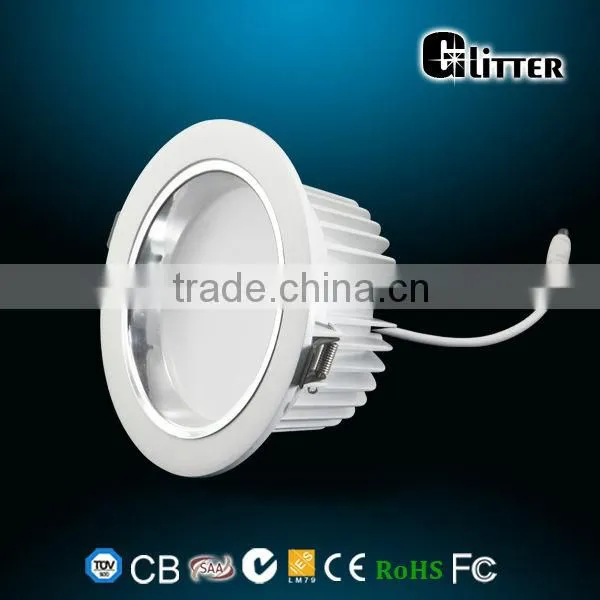

6inch 22W Samsung SMD5630 Dimable Led Downlight Driver 90lm/W With SAA/C-Tick/CE/CB Certificates

6inch 22W Samsung SMD5630 Dimable Led Downlight Driver 90lm/W With SAA/C-Tick/CE/CB Certificates thumbnail-1
6inch 22W Samsung SMD5630 Dimable Led Downlight Driver 90lm/W With SAA/C-Tick/CE/CB Certificates photo-1
US$ 20 - 25 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Sumsung SMD5630
Warranty(Years):
3
Input Voltage(V):
220
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sumsung SMD5630
Warranty(Years) 3
Input Voltage(V) 220
Lamp Power(W) 22
Lamp Luminous Flux(lm) 2000
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50.000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification C-tick, GS, PSE, SAA
Model Number DL-S4-22W
Brand Name Glitter

Specifications

1.22W dimable led downlight driver
2.Samsung SMD5630 as the light source and aluminum alloy for the shell.
3.Up to 90lm/W, CRI

6inch Samsung SMD5630 22W dimable led downlights  90lm/W  with SAA/C-Tick/CE/CB approved



Features and Advantages:

 a. LED: Samsung SMD5630 Imported From Taiwan

 b. Ture Color Lighting,High CRI Ra85

 c. Certificates:SAA, C-Tick,CB, CE, GS, RoHS,FCC

 d. PF>0.92, Energy Efficiency: >0.88
 e. Light efficency up to 950lm/W
 f.  Wide Beam Angel



Technical Specifications
A: Electrical Data



No. Item Description
1 Dimension Ø190x80mm
2 Construction Hole Size Ø175mm
3 Voltage AC85-265V
4 Current Frequency 50/60 Hz
5 Power 22W

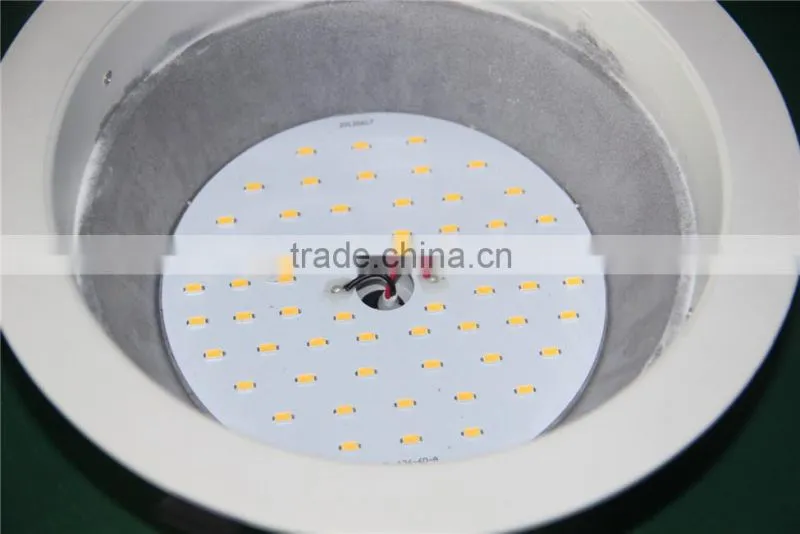

6 LED Type & Qty 40pcs SMD5630
7 Beam Angle 60 degree
8 Color Temp. Warm white 2800-3500K
Neutral white 3800-4500K
Cool white 5500-6500K
9 Lumen Warm white >1600lm
Neutral white >1800lm
Cool white >2000lm
10 Color Rendering Index >80
11 Material Cover: PMMA, Housing: Aluminum 6063
12 Operating temperature -20~+50 °C
13 Humidity 20-85%
14 Certificate CE, RoHS, SAA, TUV
15 Luminaires Class Ⅲ





6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

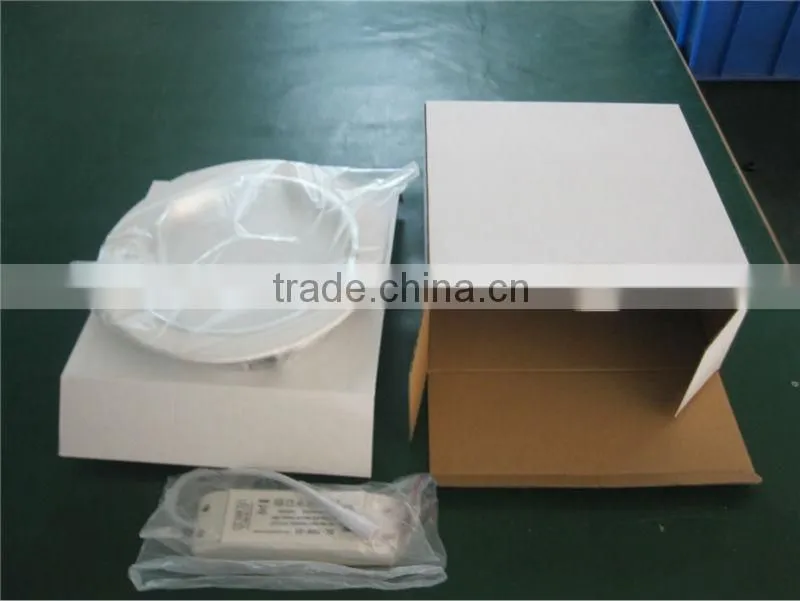

Packing Information



Item Single Box Packing Carton Package
QTY/Box Box Size G.W. QTY/CTN Carton Size G.W. Volume Weight
DL-S4-22W 1pc 200x200x95mm 0.95kgs 20pcs 420*420*490mm 19.00kgs 17.50kgs

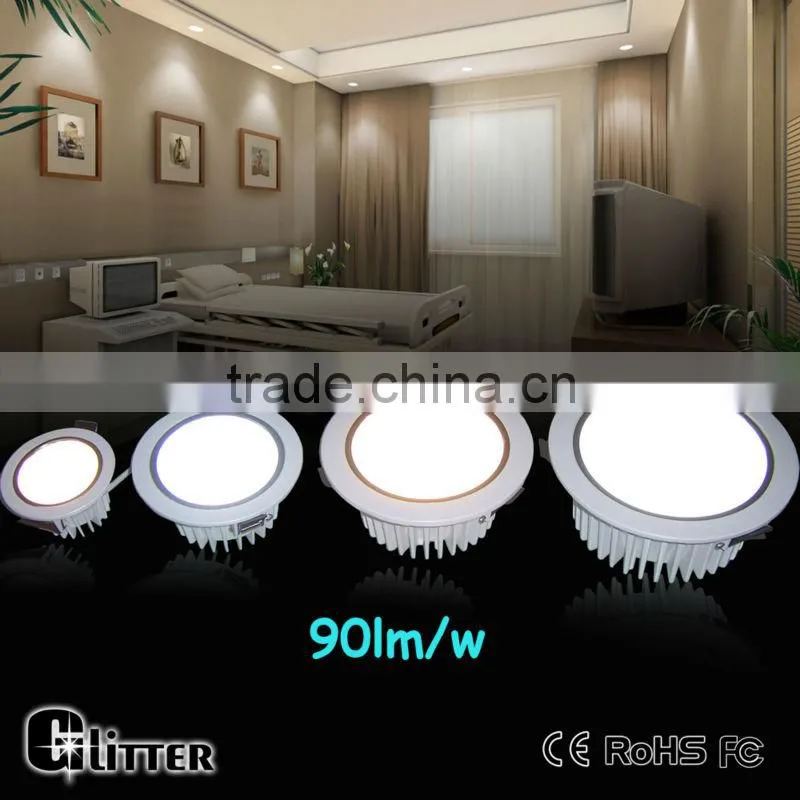

Application

Widely used in hotels, display, shopping mall, gym, underground parking,
corridors, exhibitions, clubs, family illumination, other indoor lighting.



6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

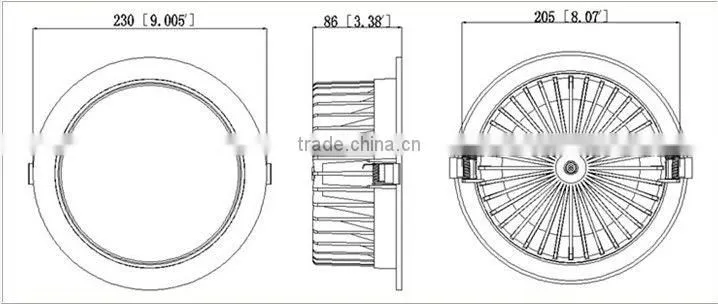

Dimension (Unit: mm)

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

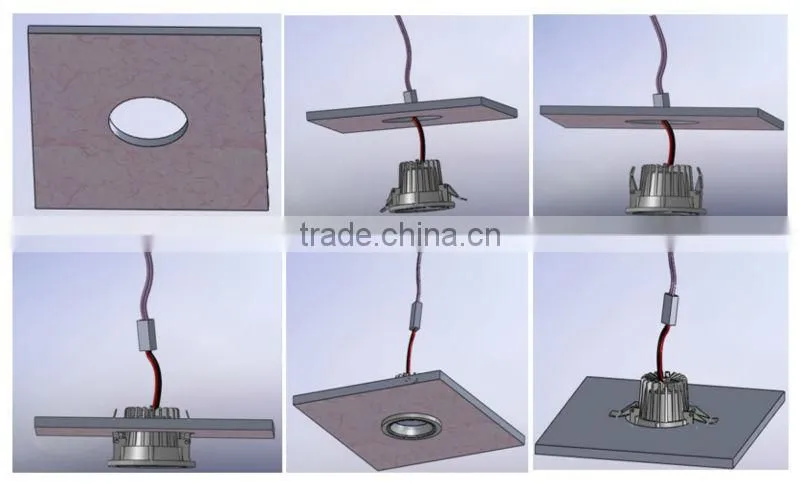

Installation:

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

Certificates:

6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates

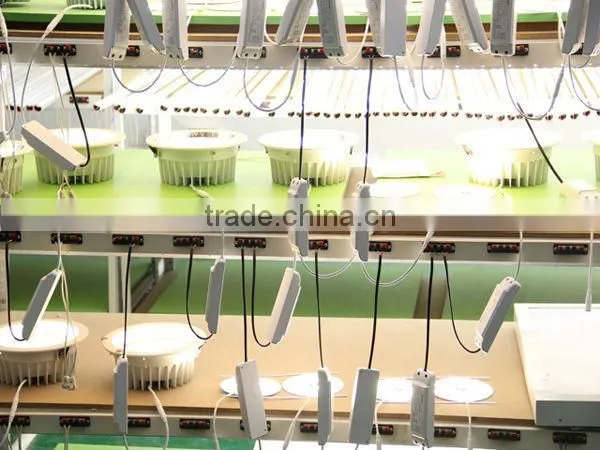

Ageing Test(18-24 hours):
6inch 22W Samsung SMD5630 dimable led downlight driver 90lm/W with SAA/C-Tick/CE/CB certificates


Warranty

3-year warranty since the date of purchase is offered for all LED lighting products from GLITTER.

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the rights for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.



Any colors, any logo acceptable. Leave an inquiry to know more details about pricing, packing shipping and discount.
