Italian Design 60x60cm Custom Made Led Panels(Backlight Led Panel 90-100lm/W,TUV,SAA,GS,CB Approved Led Ceiling Panel Light)

Italian Design 60x60cm Custom Made Led Panels(Backlight Led Panel 90-100lm/W,TUV,SAA,GS,CB Approved Led Ceiling Panel Light) thumbnail-1
Italian Design 60x60cm Custom Made Led Panels(Backlight Led Panel 90-100lm/W,TUV,SAA,GS,CB Approved Led Ceiling Panel Light) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD3014
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar SMD3014
Warranty(Years) 3
Input Voltage(V) AC85-265V
Lamp Power(W) 45
Lamp Luminous Flux(lm) 4275
Lamp Luminous Efficiency(lm/w) 95
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material ABS
IP Rating IP44
Certification CE, C-tick, EMC, FCC, GS, LVD, PSE, SAA
Brand Name Glitter
Model Number PL-0606-4504

Specifications

Back-lit LED panel
TUV,SAA,CB,GS approved LED panel
90-100lm/W LED light

Specifications



Back-lit LED panel
TUV,SAA,CB,GS approved LED panel
95-100lm/W LED light
595x595 LED panel/60x60cm LED panel lighting

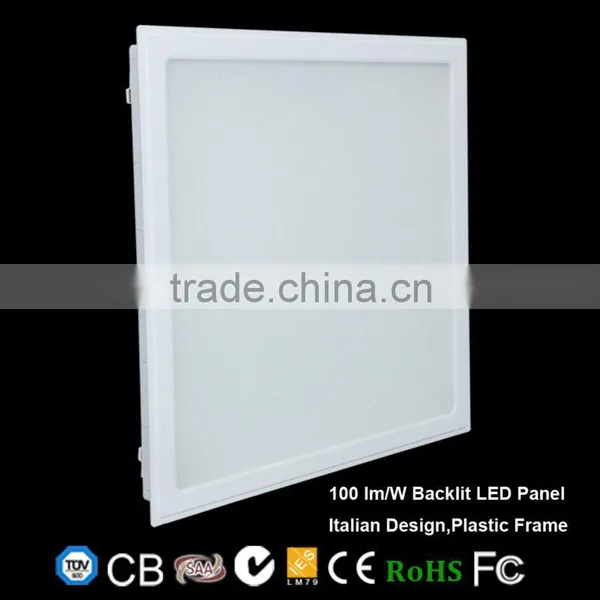

Back-lit LED Panel Light PL-0606-4505(60x60cm LED panel / 595x595 LED panel)


Italian design LED panel ( 95-100lm/W with TUV,SAA,CB,C-Tick )
ABS+PC frame+Aluminum heat sink


Products features :
  • Easier installation for more kinds of ceiling
  • Less weight : only 2.5KG for 60x60x43cm LED panel
  • Higher lighting efficiency: 95-100lm/W
  • GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)
Technical Specification :



1). Technical parameter



Item No.

PL-0606- 4503

Dimension

595x595x43mm

Voltage

AC85V-265V 50/60HZ

Power

45W

LED Type

SMD3014

LED Quantity

484pcs

Luminous Flux

Warm white

3900lm
Neutral white

4000lm
Pure white

4300lm

Color Temperature

(CCT)

Warm white

2800-3500K
Neutral white

3800-4500K
Pure white

5500- 6500K

Beam Angle

120°

Color Rendering Index (CRI)

75-85

Power Supply Efficiency

>90%

LED Luminous Efficiency

Up to 100lm/W

Power Factor (PF)

>0.95

Total Harmonic Distortion (THD)

≤15%

IP Rank

IP 50

Net Weight

2.50 Kgs

Certificate

CE, RoHS, SAA, TUV, CB, C-Tick



Application :



Dimension (Unit: mm)

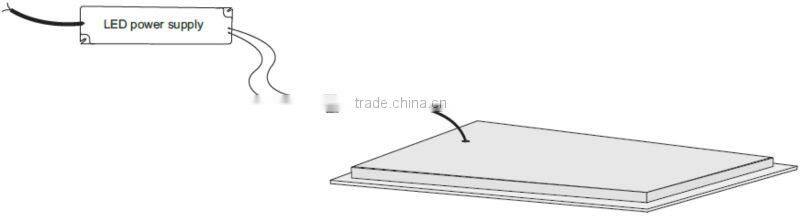

Installation :



 Warning: Before installation, please make sure the power is turned off .



A: Recessed Type



B: Suspended Type :



Packing information :



Material

QTY/CTN

Carton Size

G.W.

Net Weight

Carton

2pcs

680*680*180mm

7kgs

5 kgs







Certificates:
