Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Super Bright, Good Price, Led Panel Light 600*600, Office and House Decoration

Super Bright, Good Price, Led Panel Light 600*600, Office and House Decoration

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Super Bright, Good Price, Led Panel Light 600*600, Office and House Decoration thumbnail-1
Super Bright, Good Price, Led Panel Light 600*600, Office and House Decoration photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
epistar smd 3014
Warranty(Years):
3
Input Voltage(V):
85-265
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar smd 3014
Warranty(Years) 3
Input Voltage(V) 85-265
Lamp Power(W) 45
Lamp Luminous Flux(lm) 3800-4200
Lamp Luminous Efficiency(lm/w) 95
Color Temperature(CCT) Other, 2700k-7000k
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP54
Certification CE, C-tick, EMC, GS, LVD, SAA
Place of Origin Guangdong, China
Brand Name glitter
Model Number PL-0606-4503

Specifications

Dimmable 60*60cm led panel light
High efficiency 95lm/W
Dimmable and Emergency (3 hours)
Own designed Driver(GS,SAA,GS)

Products Information

Backlit LED Panel Light PL-0606-4503

Brief Introduction

LED panel light is designed for reducing energy consumption and landscaping. Easy to install and maintain. It can be used to replace the conventional lights, like fluorescent lamp, energy saving lamps, Down light, etc. Especially applied for Office buildings, Supermarkets, Shopping malls, Conference halls, and Hotels etc.


Features

1. Elegant appearance: Smoothy and tidy
2. Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products
3. High Lighting Transmittance Efficiency: up to 93% by imported diffuser from Japan
4. High Lighting Efficiency: over 100lm/W by LumenMax SMD 3014 LED
5. No such hazard that mercury or lead enters the environment.No RF interference


Application
* Offices & Library
* Kitchens & Bathrooms
* Department Store & Boutiques
* Restaurant & Cafeteria
* Conference Rooms
* Hospital & Laboratory

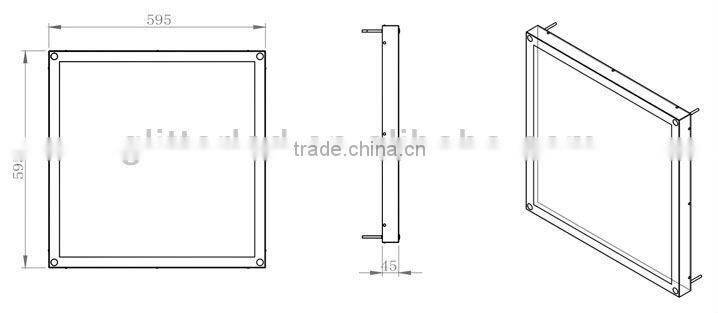

Dimension (Unit: mm)

 super bright, good price, led panel light 600*600, office and house decoration



Technical Specifications

A: Electrical Data

No.ParameterUnitDescription
1Power supplyVAC85-265
2Current frequencyHz50/60
3Working voltageVDC24
4Power consumptionW45
5LumenWarm whitelm>3825
Neutral white>4050
Cool white>4275
6Color temperatureWarm whiteK2800-3500
Neutral white3800-4500
Cool white5500-6500
7Material  PMMA, Steel coating
8Operating temperature°C-10~+40
9Humidity 10-80%
10Certificate CE, RoHS, SAA, TUV, C-Tick
11Luminaires Class  Ⅲ

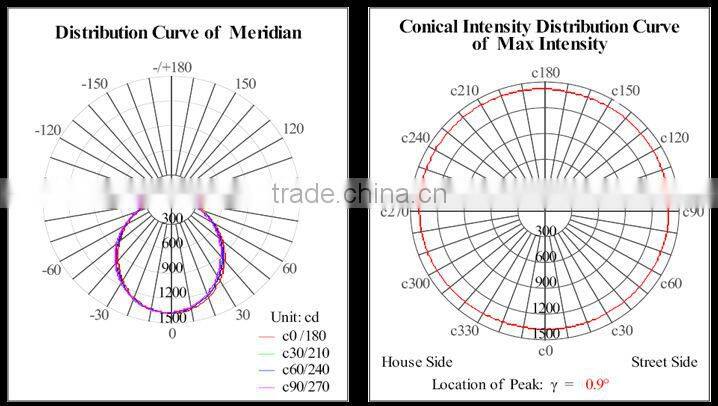

B: Light Distribution Curve & Max CD Distribution Curve

super bright, good price, led panel light 600*600, office and house decoration

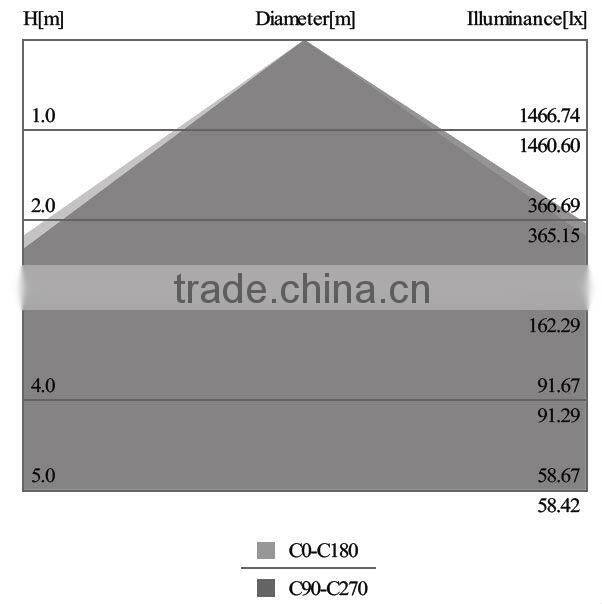

C: Illumination Diameter

 super bright, good price, led panel light 600*600, office and house decoration

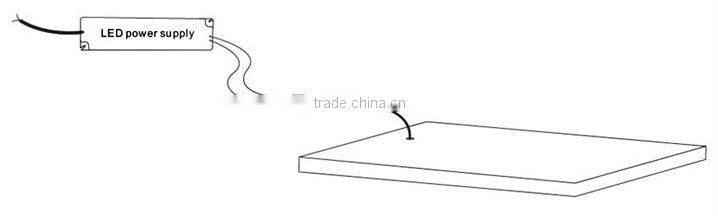

Electrical Connection

 super bright, good price, led panel light 600*600, office and house decoration




Installation

Warning: Before installation, please make sure the power is turned off.

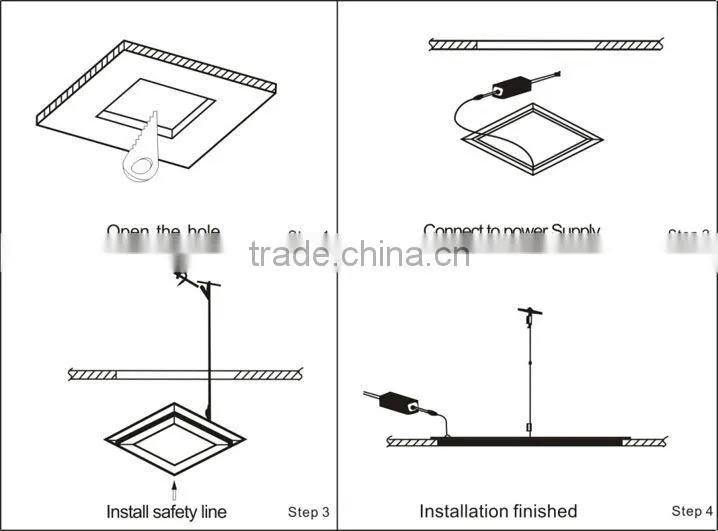

A: Recessed Type

super bright, good price, led panel light 600*600, office and house decoration

B: Suspended Type
super bright, good price, led panel light 600*600, office and house decoration


Packing Information

PackageQTY/CTNCarton SizeG.W.
2pcs620*140*620mm11.00kgs


A: Packing List

Installation MethodNo.DescriptionQuantityComplement
1. Recessed1600x600 LED panel light2pcs

2Constant LED Driver2pcs
3Usage Manual2pcs
2. Suspended1600x600 LED panel light2pcs
2Constant LED Driver2pcs
3Usage Manual2pcs
4Steel Wires8pcsOptional

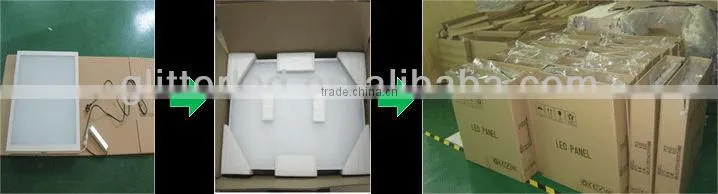

B: Packing Pictures

super bright, good price, led panel light 600*600, office and house decoration

Warranty

3-year warranty since the date of purchase is offered for all LED Panel Light  .

Warranty Terms

1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.

2. GLITTER will provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.

3. Please deliver the failure product by original packing for maintenance service, GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.

4. GLITTER reserves the right for final explanation of aforesaid terms.

Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
