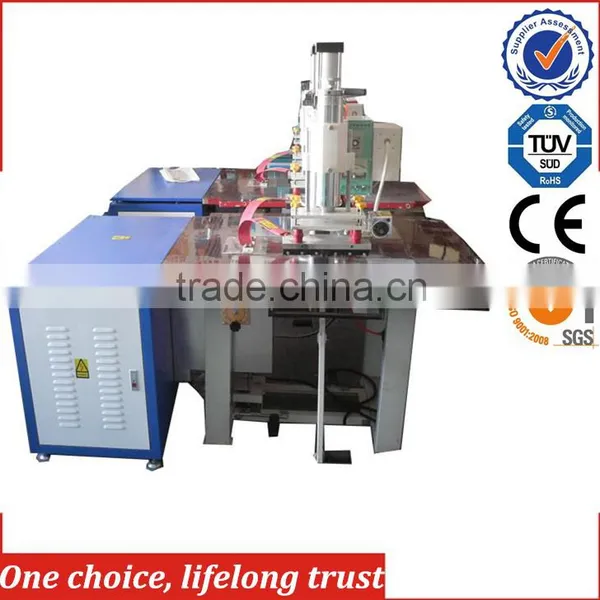

Frequency Double Head Plastic Welding Machine With Foot Pedal for plastic, pvc cover
1. Product parameters:
Quality / Safety Certification: ISO9001-2000
2.Technical parameters:
Model |
TR-5S |
Output power |
5KW |
Input Power |
7.5KVA |
Voltage |
AC 380V/3P |
Oscillation Frequency |
27.12 MHZ |
Operation mode |
Pressure / foot |
Rectifier |
Silicon Diode |
Oscillating tube |
7T85 |
Table size |
350 × 700 mm |
Upper and lower electrode spacing |
200mm |
Mechanical activity interval |
180 mm |
Weight |
320kgs |
Dimension |
1750*1100*1560mm |
Function
Suit for heat sealing automotive interior parts, trademarks, stationery, raincoats, inflatable toys, plastic cover, cool liquid cushion, footwear, cushions, all kinds of bags, soft hand bags and so on, and a variety of concave and convex shapes patterns, alphabetic repression. Fitted with a simple device can also be stamping process. Generally used for relatively small products, heat bonding, welding, embossing.
Futures
1.Interference,oscillation frequency is 27.12MHz/40.68MHZ,using industry compliance with international standards, the external device interference is minimal.
2.Anti-ignition,has a high sensitivity spark suppression circuit, the loss of molds and products is minimum.
3.Over-current protection, with overload current protection devices, the abnormality can be automatically cut off the pressure at work to protect the valves and other devices.
4.Stronger output power.
Advantages
1.Equipped wih digital display constant temperature thermostat, which makes the equipment continue to work in the high frequency of temperature deviation is small.
2.Equipped with high sensitive spark preventive device,which protects the mould extremely at high frequency welding.
3.Equipped with overload automatically extinguish safe switch and automatically protect cooling control system.
4.The pressure design is precision, can be adjusted individually.
5.Equipped with hydraulic pressure limit switch, which could adjust the ceiling of pressure installation to protect the machine from danger and protect the mould.

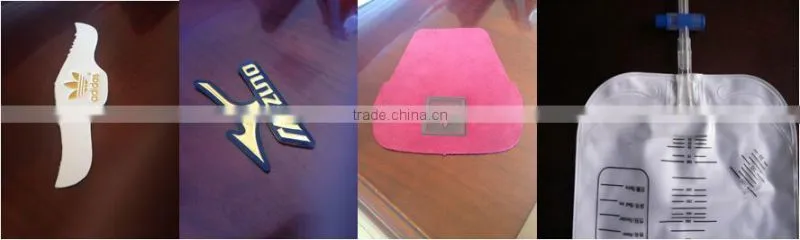

Samples
related pictures
We can customize according to your requirement with our excellent engineers.
Looking forward to your inquiry
