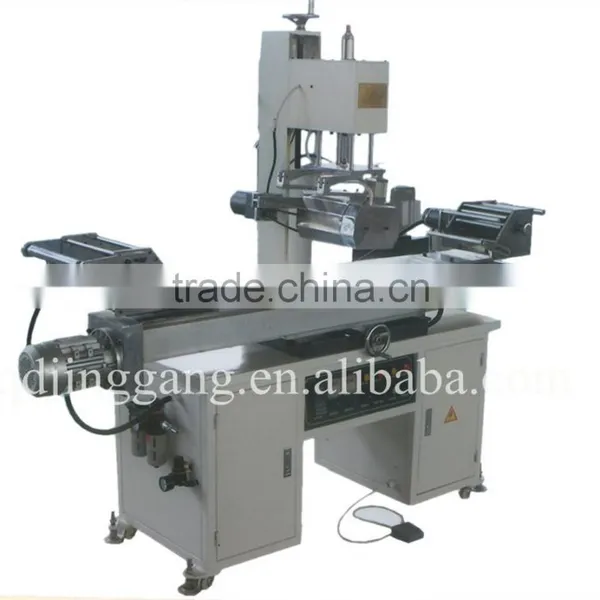

TJ-78 plane rolling hot stamping machine/heat transfer printing machine
Quality/Safety Certification ISO9001-2000;CE
Technical parameters:
Heat roller size |
Diameter 120x105mm |
Workbench size |
1100x280mm |
Workbench Max. stroke |
650mm |
Max.height of workpiece |
180mm |
Pressure range |
≤0.8Mpa |
Overall size |
2200x600x1800mm |
Power supply |
220V/50HZ |
Motor power |
375W |
Heat power |
800W |
Weight |
300kg |
Temperature range |
Room temperature-300ºC |
Features:
1.Relay controls and thermostat adjusts steady temperature for safe protection and easy operation.
2.Adjustable worktable is easy for printing workpieces of different width.
3.The adjustable nose height facilitates stamping workpieces with different heights.
4.Heat rubber roller is more suitable for large area hot stamping processing.
5.Workbench with linear guide running and ball screw driving is conducive to excellent stamping quality and accurate positioning.
6.Hot stamping head can rise and fall, and constant pressure mechanism is conducive to the printing of uneven workpiece.
7. Automatic and adjustable paper feeding and receiving .
8.The operation is convenient, easy to grasp, security and stability.
9.Hot stamping pressure, temperature and speed are adjustable.
Product description:

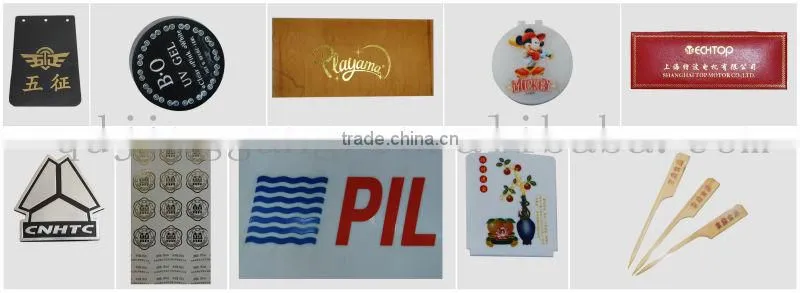

Suitable for all kinds of plane, cambered, and even more complex wavy products’hot foil stamping and transfer printing. Adopting the silicone roller floating mechanism ,it’s the best hot stamping machine for some cuboid or cambered products.
