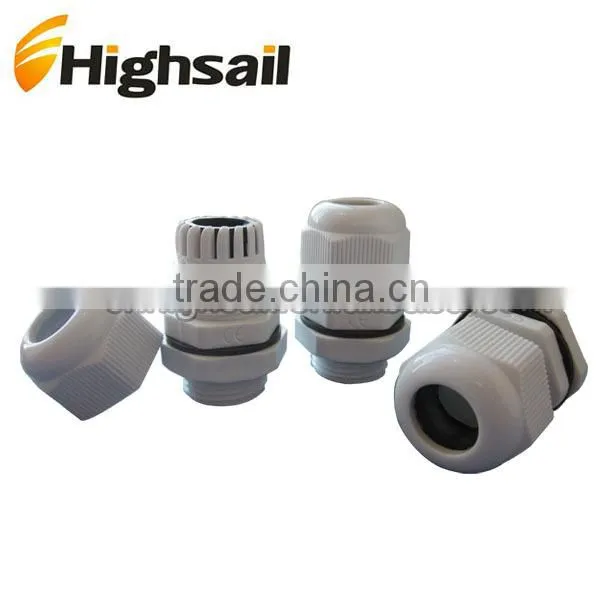

Nylon Waterproof Glands

Name: Nylon Waterproof Glands
Brand: Highsail or OEM or Neutral
SKU: 129677965
Availability: InStock

Yueqing Highsail Electric Co., Ltd.

US$ 0.029 - 0.9 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Highsail or OEM or Neutral

Model Number:

PG / M / NPT / MG / G

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Highsail or OEM or Neutral

Model Number PG / M / NPT / MG / G

Protection Level IP68

Size PG7-PG63 / M12-M70

Material Nylon

Specifications

glands
1.PG;M;NPT;MG
2.CE;RoHS;SGS;IP68;UL94V-0
3.Black,Light grey,and others
4.Free Samples/OEM/Factory

glands

Product Description

1.Material	Lock Nut,Main Body and Sealing Nut are made from Nylon PA66; Washer and Seal are made from EPDM or Nitrile butadiene rubber(NBR).
2.Thread Type	PG;M;NPT;MG;G.
3.Size Range	PG7-PG63;M12-M63;NPT3/8''-NPT''11/2'';MG12A-MG63A;G1/4-G3.
4.Thread Length Selection	Long thread type / Short thread type.
5.Fire Rating	UL94V-2;UL94V-0(optional).
6.Authentication	CE;RoHS;SGS.
7.Waterproof Degree	IP68(Thread position with washer).
8.Operating Temperature	Static state from -40°C (-40°F) to 100°C(212 °F), Short-term to 120°C (248 °F).
9.Color	Black and Light Grey(RAL7035) in normal,other colors can be customized.
10.Connection Thread Norms	EN60423 / DIN40430.
11.Mould Feature	Prevent slide design provides superior antivibration protection,ensures a firm grip on the cable.
12.Sample	Free sample for your testing.
13.MOQ	Small order can be accepted.
14.Quality Control	All goods will be 100% inspected before dispatching.
15.Delivery Time	Enough stock and strong production capacity ensure timely delivery.
16.R&D Ability	OEM available,open new molds according to your samples or drawings.

Technical Parameters

1.Nylon Cable Gland(PG Series) Technical Parameters.

RE:M Series;NPT Series;G Series technical parameters,please feel free to consulting me.

Item	Cable Range	Main Body	Thread O.D	Thread Length	Highsail NO.
Item	(mm)	H (mm)	AG (mm)	GL (mm)	Black	Light Grey
PG7	3-6.5	22	12.5	8	N0707B	N0707G
PG9	4-8	26	15.2	9	N0908B	N0908G
PG11	5-10	27	18.6	9	N1110B	N1110G
PG13.5	6-12	28	20.4	9	N1312B	N1312G
PG16	10-14	30	22.5	11	N1614B	N1614G
PG19	12-15	30	24	11	N1914B	N1914G
PG21	13-18	34	28.3	11	N2118B	N2118G
PG25	16-21	35	30	12	N2522B	N2522G
PG29	18-25	40	37	12	N2925B	N2925G
PG36	22-32	48	47	15	N3633B	N3633G
PG42	32-38	49	54	18	N4238B	N4238G
PG48	37-44	50	59.3	18	N4844B	N4844G
PG63	42-50	60	71	29	N6352B	N6352G

Packaging & Shipping

1.Packaging	(1)Interior Packaging:10/20/50/100pcs per polybag with neutral label or customized (2)External Carton:444336cm;523348cm;423625cm;3726.518.5cm or customized
2.Transportation	(1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc); (2)We will do best to get good freight cost for you.
3.Payment Terms	T/T, Paypal,Western Union,L/C,Escow
4.Delivery Time	10 days within 100000pcs.According to your order quantity.
5.Company Type	Factory and trade integration,years of export experience;
