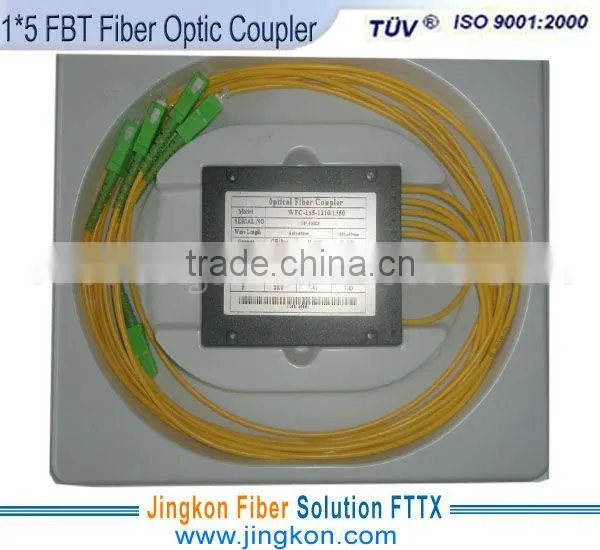

1*5 FBT Optical Fiber Coupler with SC/APC connector

Type

Standard

Operating wavelength (nm)

1310 1490 1550

Bandwidth (nm)

1310±40 1490±10 1550±40

Coupling ratio (%)

1~50

Typical excess loss(dB)

≤0.15

PDL(dB)

≤0.10

Typical Insertion Loss (dB)

≤3.6

Min directivity(dB)

≥55

Temperature coefficient (dB/)

≤0.002

Operating temperature()

-40~+70

Storage temperature()

-40~+85

Max operating power (mW)

≥300

Max tensile strength(N)

≥5

Package dimension(mm)

Φ3.0×50 as customer required

Industry standard bellcore

Telcordia GR-1221-CORE
