Dual Window Fusion Biconic Splitter
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Jingkon
Model Number:
1x5 Tap-off Dual Window Optical Splitter
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Jingkon
Model Number
1x5 Tap-off Dual Window Optical Splitter
Specifications
*1x5 Tap-off Dual Window Optical Splitter*Fusion Biconic Splitter Technology
*RoHS,TLC,ISO9001,Telcordia GR-1221

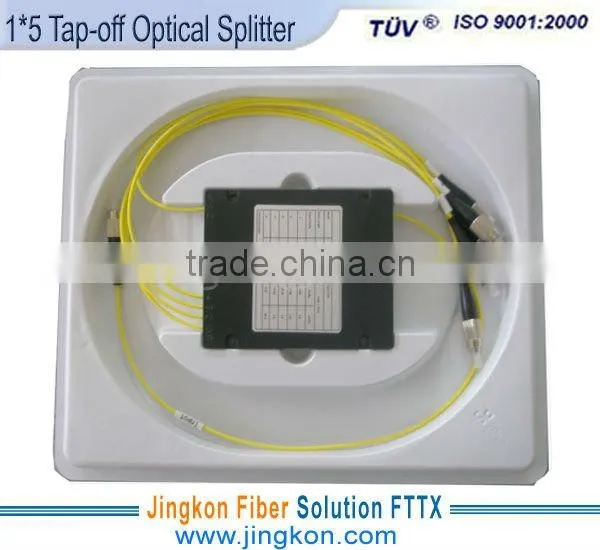

1x5 Tap-off Dual Window Optical Splitterwith FC/PC Connector
Main Parameter:
TECHNICAL SPECIFICATIONS | ||||||
Optical characteristics | ||||||
Wavelength |
1310±40nm 1550±40nm |
|||||
Fibre type |
G652B/D |
|||||
Directivity |
≥55dB |
|||||
Return loss |
≤-55dB |
|||||
PDL |
≤0.20dB |
|||||
TDL |
≤0.25dB |
|||||
Splitter Ratio |
90/2.5(x4) |
80/5(x4) |
70/7.5(x4) |
60/10(x4) |
50/10.5(x4) |
|
Insertion Loss |
≤1.2/≤18.3 |
≤1.7/≤15.3 |
≤2.3/≤13.5 |
≤3.0/≤12.4 |
≤3.8/≤11.3 |
|
Construction | ||||||
Box Dimension |
100x80x10 |
|||||
Cable Diameter |
0.9/2.0/3.0 |
|||||
Connector |
SC/FC/LC/ST from Jingkon |
|||||
Enviromental | ||||||
Operating temperature range |
-40-+75degree |
|||||
Storage temperature range |
-40-+85degree |
|||||
Packing |
Individual blister type |
|||||
Applications:
*FTTX (FTTP, FTTH, FTTN, FTTC)
*Passive Optical Networks (PON)
*Local Area Networks (LAN)
*CATV Systems
*Test Equipments
